Genesys ZU-3EG: Zynq Ultrascale+ MPSoC Development Board

The Genesys ZU 3EG is currently unavailable due to part shortages and is not anticipated to be in stock until 2023. Please sign up or continue to check the page for updates.

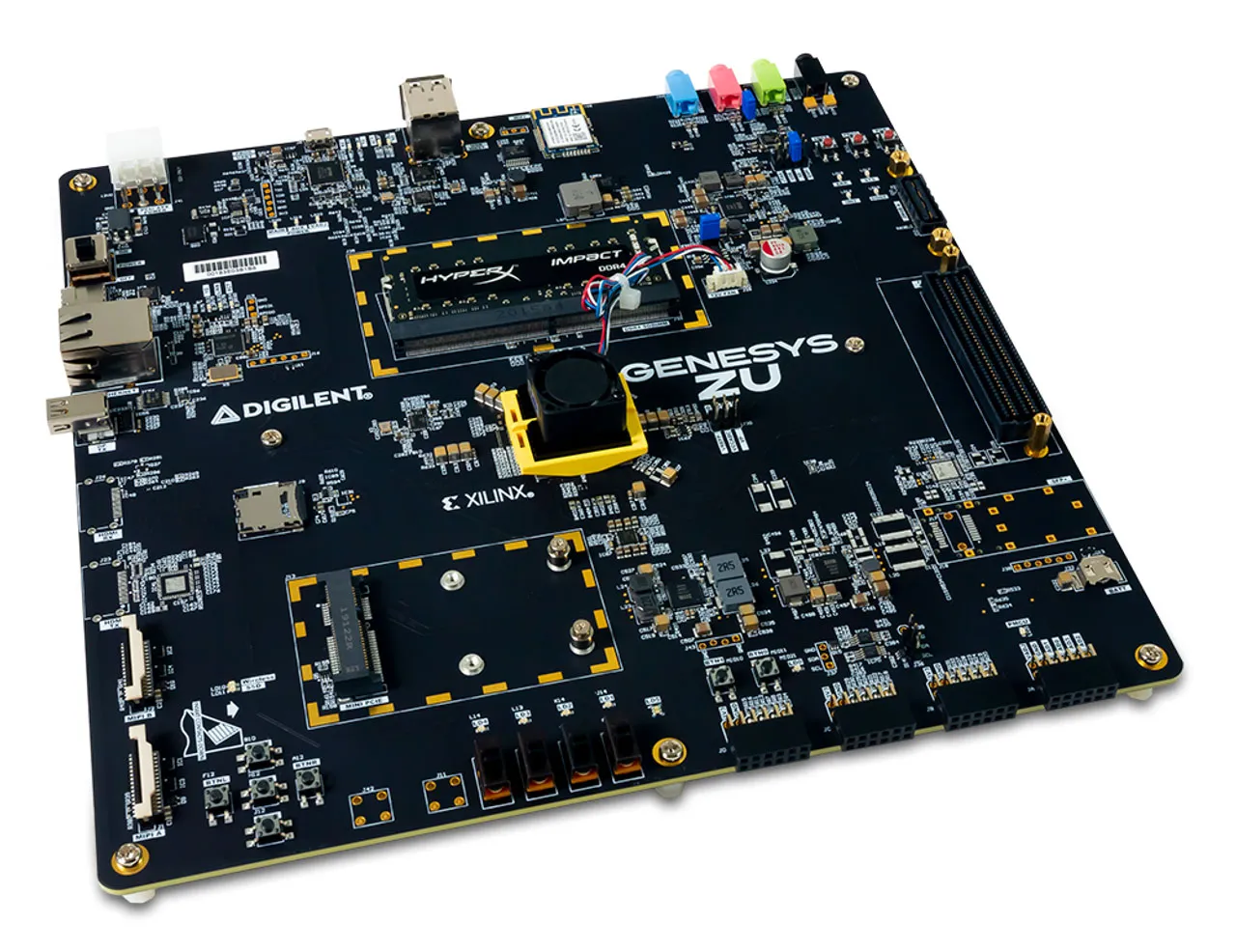

The Digilent Genesys ZU is a standalone Zynq UltraScale+ EG MPSoC development board, designed to provide an ideal entry point by combining cost-effectiveness with powerful multimedia and network connectivity interfaces. The Genesys ZU: 3EG variant supports multiple multimedia and network interfaces with an excellent mix of on-board peripherals, upgrade-friendly DDR4, Mini PCIe and microSD slots, along with multi-camera and high-speed expansion connectors which are designed to support a wide range of use-cases. The Genesys ZU is primarily targeted towards Linux-based applications that facilitate access to Wi-Fi, cellular radio (WWAN), SSD, USB SuperSpeed and 4K video. Two different specialized ports, including Pmod and high-speed SYZYGY-compliant expansion module ports for our new Zmods, enable flexible expansion and easy access to a wide ecosystem of add-on modules, perfect for silicon evaluation and rapid prototyping.

The Zynq UltraScale+ 3EG devices include specialized processing elements needed to excel in next-generation wired and 5G wireless infrastructure, cloud computing, AI, and Aerospace and Defense applications.

The Xilinx Zynq UltraScale+ XCZU3EG and XCZU5EV are supported by Vivado Design Suite, including the free Vivado ML Standard Edition (formerly Vivado WebPACK?).

Features

• XCZU3EG-SFVC784-1-E
• 256 Mbit QSPI Flash memory on-board
• USB FTDI interface for programming and debugging
• MicroSD card interface, supporting SDR104 mode
• Board status and diagnostics using and on-board platform MCU
• 154K logic cells
• 7.6 Mb Block RAM
• 360 DSP Slices
• 3 clock management tiles
• DDR4, 4GB, 1866 MT/s, upgradeable memory
• Application Processor: Quad-core ARM Cortex-A53 MPCore up to 1.5 GHz
• Real-time Processor: Dual-core ARM Cortex-R5 MPCore up to 600 MHZ
• Graphics Processor: MaliTM-400 MP2
• USB Type-C 3.1 Gen1 Dual-Role Device
• MiniPCIe / mSATA: dual slot, Half-/Full-size
• USB 2.0 Host: 2x Type-A
• 2.4GHz On-board Wi-Fi
• Ethernet 1G w/ IEEE 1588
• WLAN / WWAN / LoRa (option: MiniPCIe)
• Main memory: DDR4, 4GB, 1866 MT/s (*2133 MT/s), upgradeable
• 104 MB/s SD
• SSD option: mSATA
• ISSI 256 Mib SNOR Flash
• User I/O:
  • 4 PL-connected LEDs
  • 1 MIO-connected LED
  • 5 PL-connected buttons
  • 2 MIO-connected buttons
  • 4 PL-connected switches

What's Included

• Genesys ZU-3EG
• 12V, 8A power supply
• IEC cable with European plug
• IEC cable with US plug
• USB A to micro B programming cable
• USB A to Type C cable
• JTAG HS1 programmer and cable
• microSD card with the Out-of-Box Petalinux Image (loaded into the Genesys ZU's microSD card slot), with a case

Downloads & Resources

The Resource Center for the Genesys ZU is the central hub of technical content for the board and contains everything to get started and reduce mean time to blink. This includes the reference manual and schematics plus tutorials, example designs, community projects, and a link to our technical support forum.
