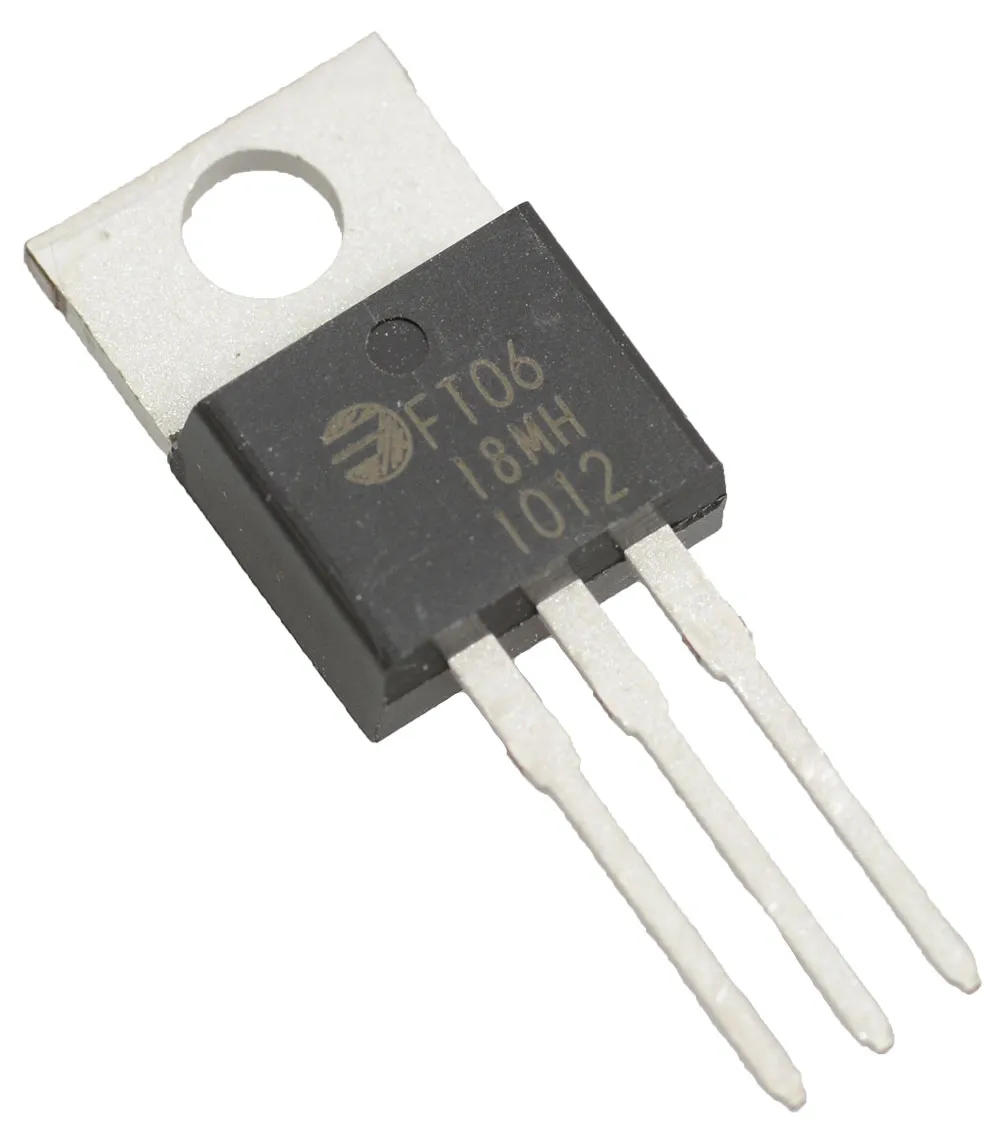

General Purpose TRIAC 600V 6A Through Hole TO-220AB

Specifications

• Triac Type: Standard
• Voltage - Off State: 600 V
• Current - On State (It (RMS)) (Max): 6 A
• Voltage - Gate Trigger (Vgt) (Max): 1.3 V
• Current - Non Rep. Surge 50, 60 Hz (Itsm): 60 A, 63 A
• Current - Gate Trigger (Igt) (Max): 25 mA
• Current - Hold (Ih) (Max): 25 mA
• Configuration: Single
• Operating Temperature: -30°C to 125°C (TJ)
• Mounting Type: Through Hole
• Package: TO-220AB
