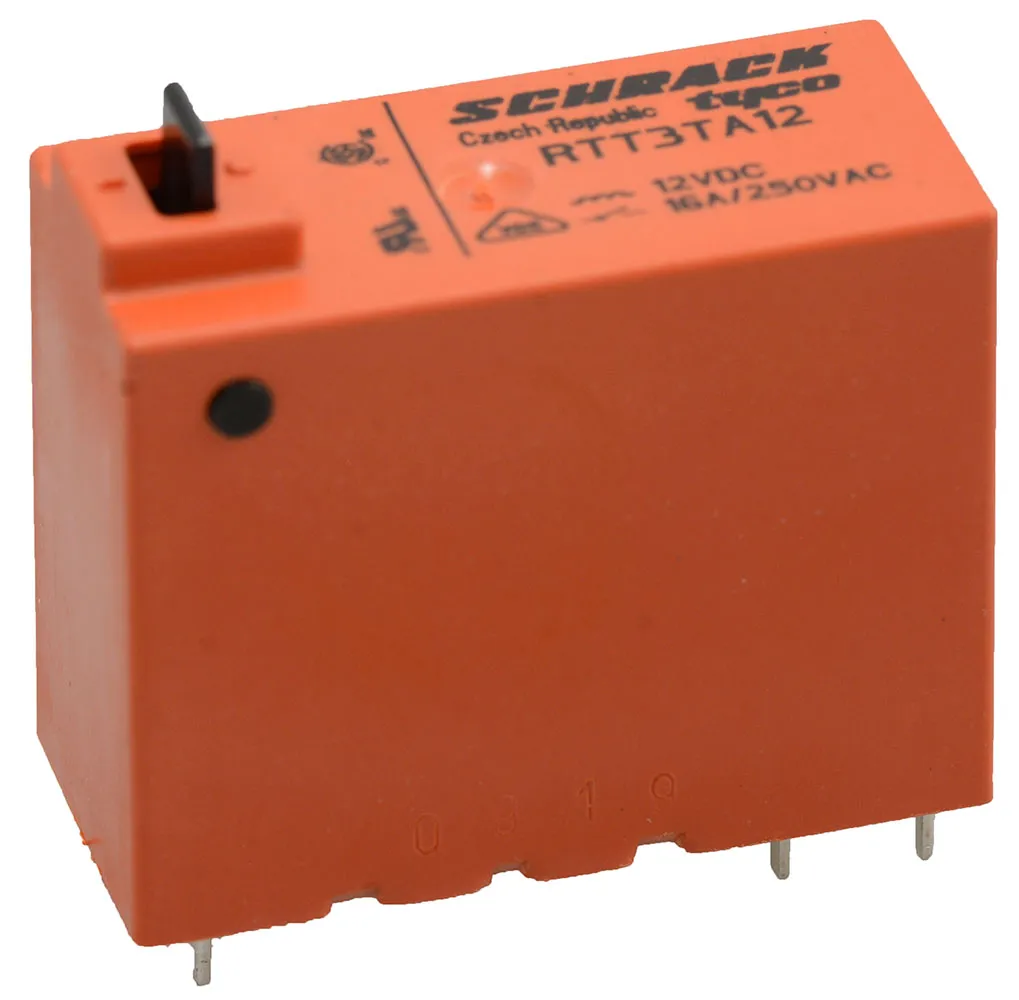

General Purpose Relay SPST-NO (1 Form A) 12VDC 16A Through Hole Test Button

Specifications

  • Series: RT1, Inrush
  • Relay Type: General Purpose
  • Coil Voltage: 12 VDC
  • Contact Form: SPST-NO (1 Form A)
  • Switching Voltage: 400 VAC (max.)
  • Coil Type: Latching, Single Coil
  • Contact Rating: 16 A
  • Coil Current: 33.3 mA
  • Operate Time: 10 ms
  • Release Time: 10 ms
  • Coil Resistance: 360 Ohm
  • Termination Style: PC Pin
  • Mounting Type: Through Hole
  • Must Operate Voltage: 8.4 VDC
  • Must Release Voltage: n/a
  • Operating Temperature: -10°C to 85°C
  • Contact Material: Tungsten and AgSnO

Product Identification

Family:RT1

Dimensions & Appearance

Width:13 mm
Height:23 mm
Length:29.8 mm

Operating conditions

Minimum Operating Temperature:-10°C
Maximum Operating Temperature:85°C

Features

Pins:6
Relay Construction:Latching, Single Coil
Coil Voltage:12 VDC
Maximum Pick-Up Voltage:8.4 VDC
Minimum Dropout Voltage:n/a
Operate Time:10 ms
Contact Current:16 A
Contact Voltage:400 VAC
Coil Resistance:360 Ohm
Contact Form:SPST-NO
,
