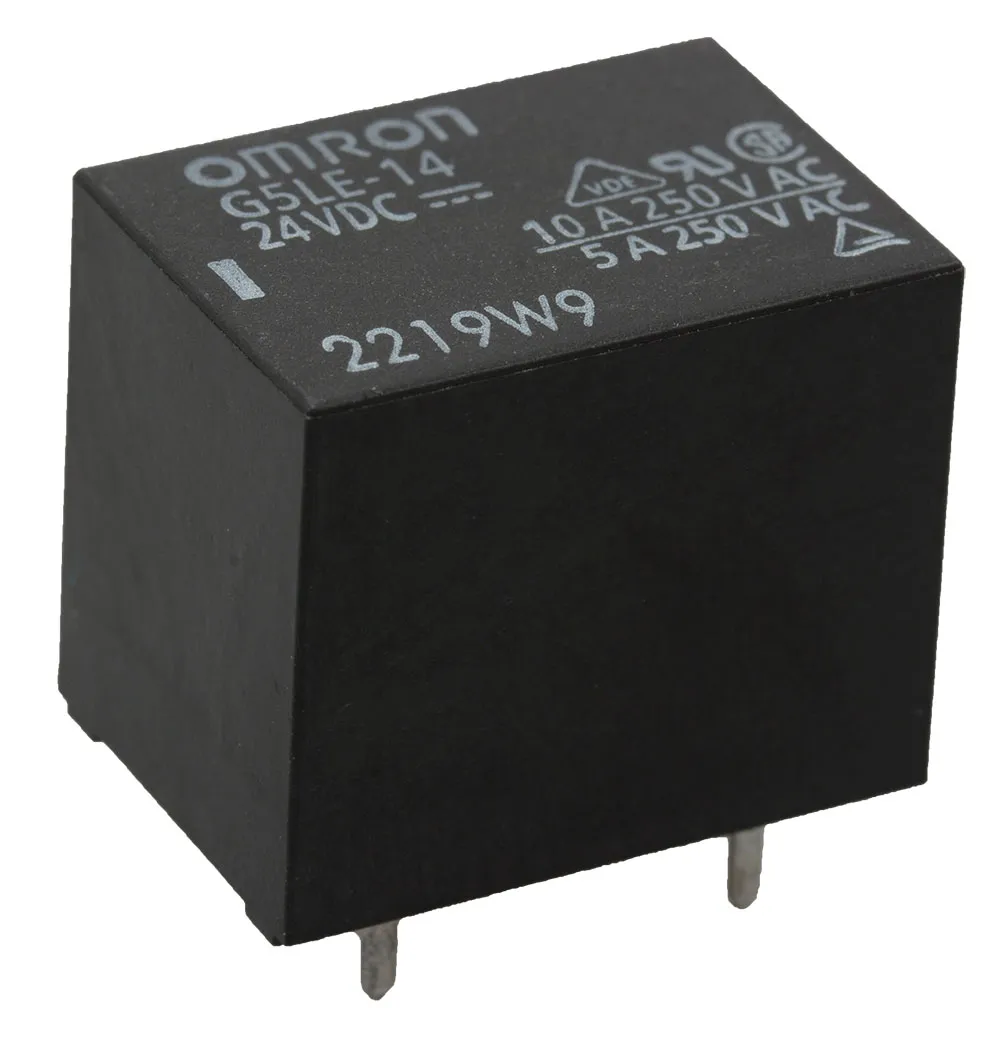

General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole

Specifications

  • Coil Voltage: 24VDC
  • Contact Form: SPDT (1 Form C)
  • Relay Type: General Purpose
  • Coil Type: Non Latching
  • Contact Rating (Current): 10 A
  • Switching Voltage: 250 VAC, 125 VDC - Max
  • Coil Resistance: 1.44 kOhms
  • Coil Current: 16.7 mA
  • Must Operate Voltage: 18 VDC
  • Must Release Voltage: 2.4 VDC
  • Termination Style: PC Pin
  • Mounting Type: Through Hole
  • Seal Rating: Sealed - Fully
  • Operate Time: 10 ms
  • Release Time: 5 ms

Dimensions & Appearance

Width:15.6 mm
Height:18.5 mm
Length:21.6 mm

Features

Pins:5
Relay Construction:Non-Latching
Coil Voltage:24 VDC
Contact Current:10 A
Contact Voltage:250 VAC, 125 VDC
Contact Form:SPDT
Coil Resistance:1440 Ohm
,
