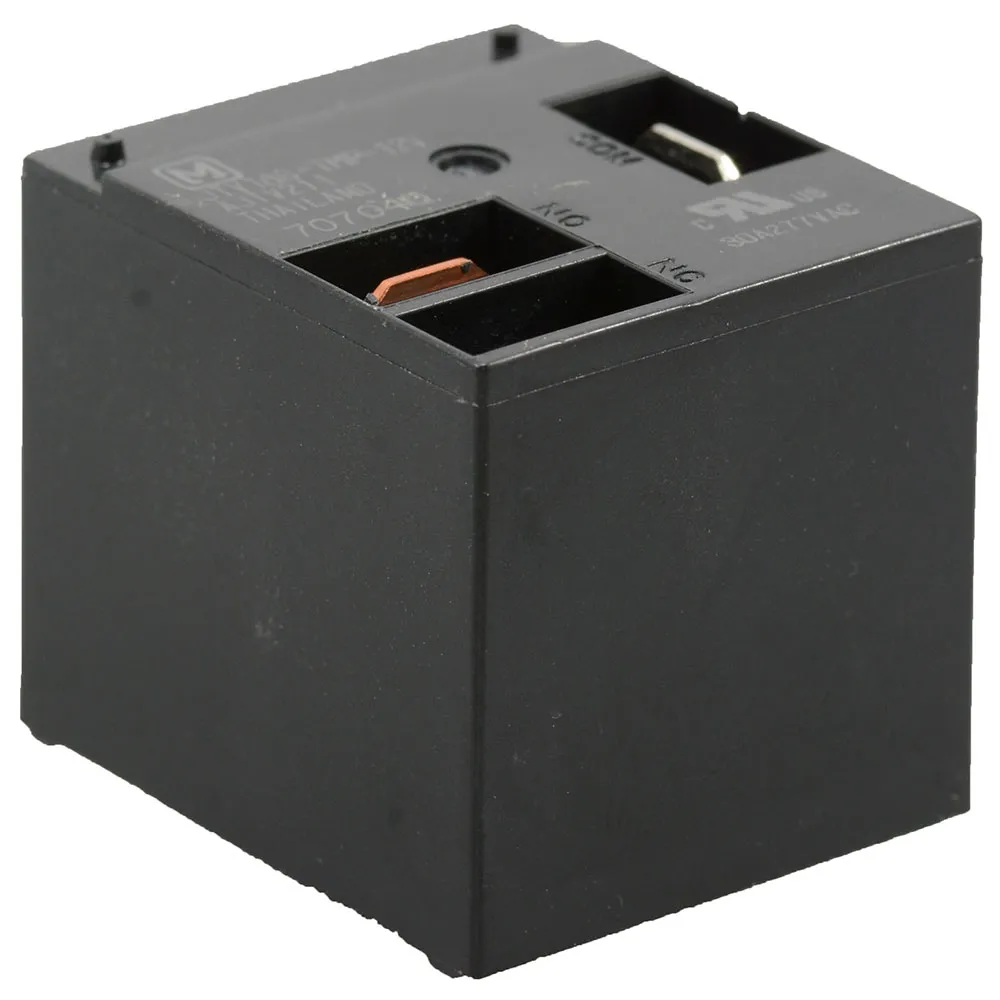

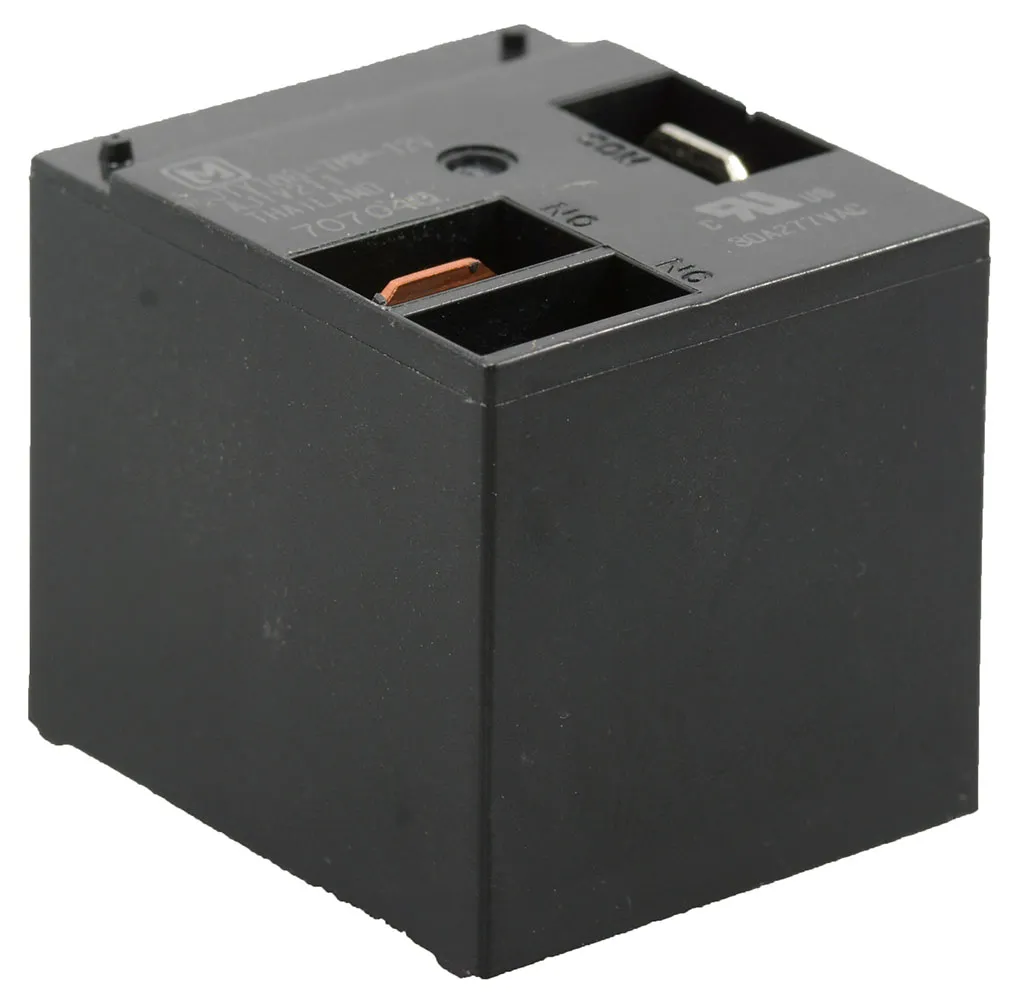

General Purpose Relay SPST-NO (1 Form A) 12VDC Coil 30A Through Hole Quick Connect

Features

• High switching capacity
• Compact economical 30 A Class F relay

Specifications

• Series: JT-V
• Relay Type: General Purpose
• Not For New Designs
• Contact Form: SPST-NO (1 Form A)
• Coil Voltage: 12 VDC
• Contact Rating (Current): 30 A
• Switching Voltage: 277VAC - Max
• Coil Type: Non Latching
• Must Operate Voltage: 9 VDC
• Must Release Voltage: 1.2 VDC
• Coil Current: 83.3 mA
• Operate Time: 15 ms
• Release Time: 10 ms
• Coil Resistance: 144 Ohms
• Mounting Type: Through Hole
• Termination Style: PC Pin, Quick Connect - 0.250" (6.35mm)
• Seal Rating: Sealed - n/a
• Coil Insulation: Class F
• Operating Temperature: -55°C to 85°C
• Contact Material: Silver Tin Oxide (AgSnO)
