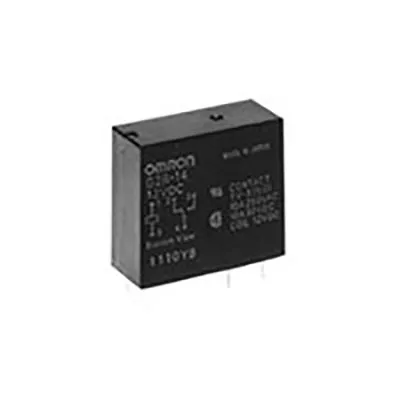

General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole

Specifications

• Coil Voltage: 24VDC
• Contact Form: SPDT (1 Form C)
• Contact Rating (Current): 8A
• Switching Voltage: 380VAC, 125VDC - Max
• Coil Current: 21.8mA
• Coil Type: Non Latching
• Termination Style: PC Pin
• Seal Rating: Sealed - Fully
• Must Operate Voltage: 16.8 VDC
• Must Release Voltage: 3.6 VDC
• Operate Time: 15ms
• Release Time: 5ms
• Operating Temperature: -40°C to 70°C
• Contact Material: Silver Alloy
• Relay Type: General Purpose
• Coil Resistance: 1.1 kOhms
