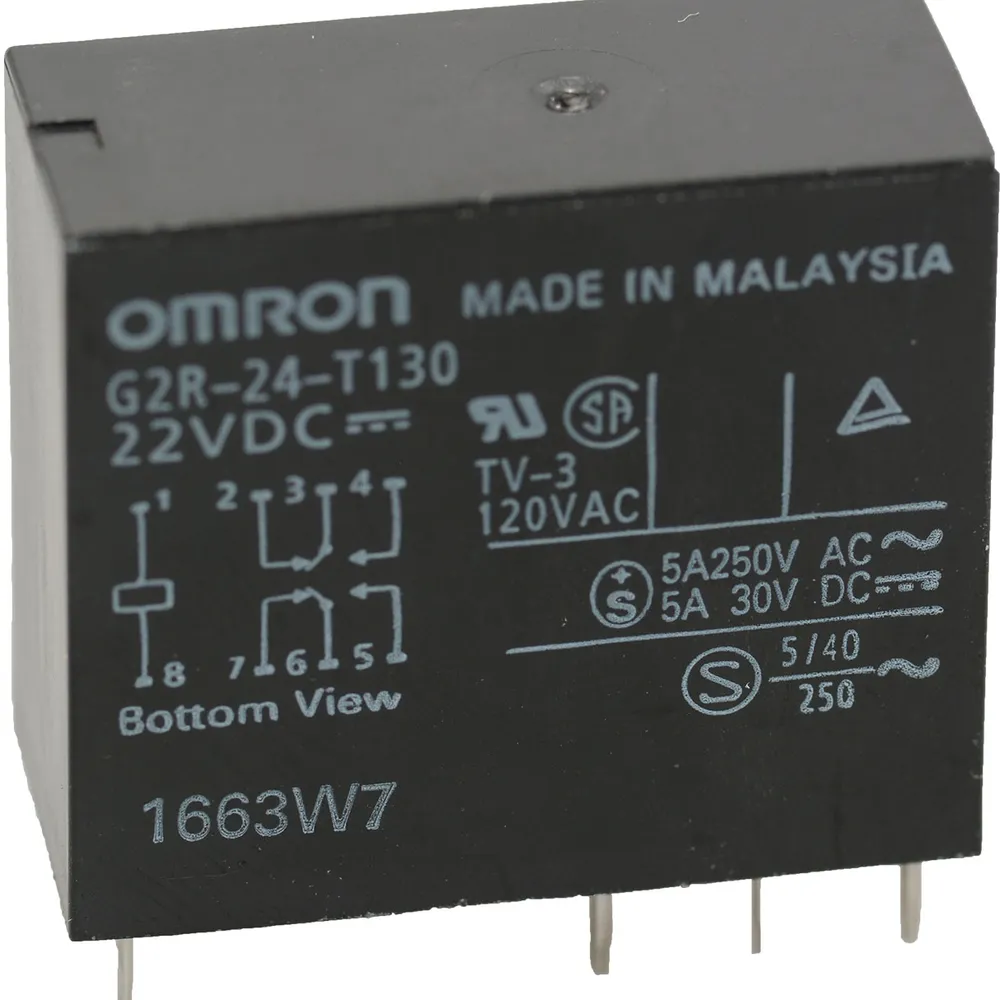

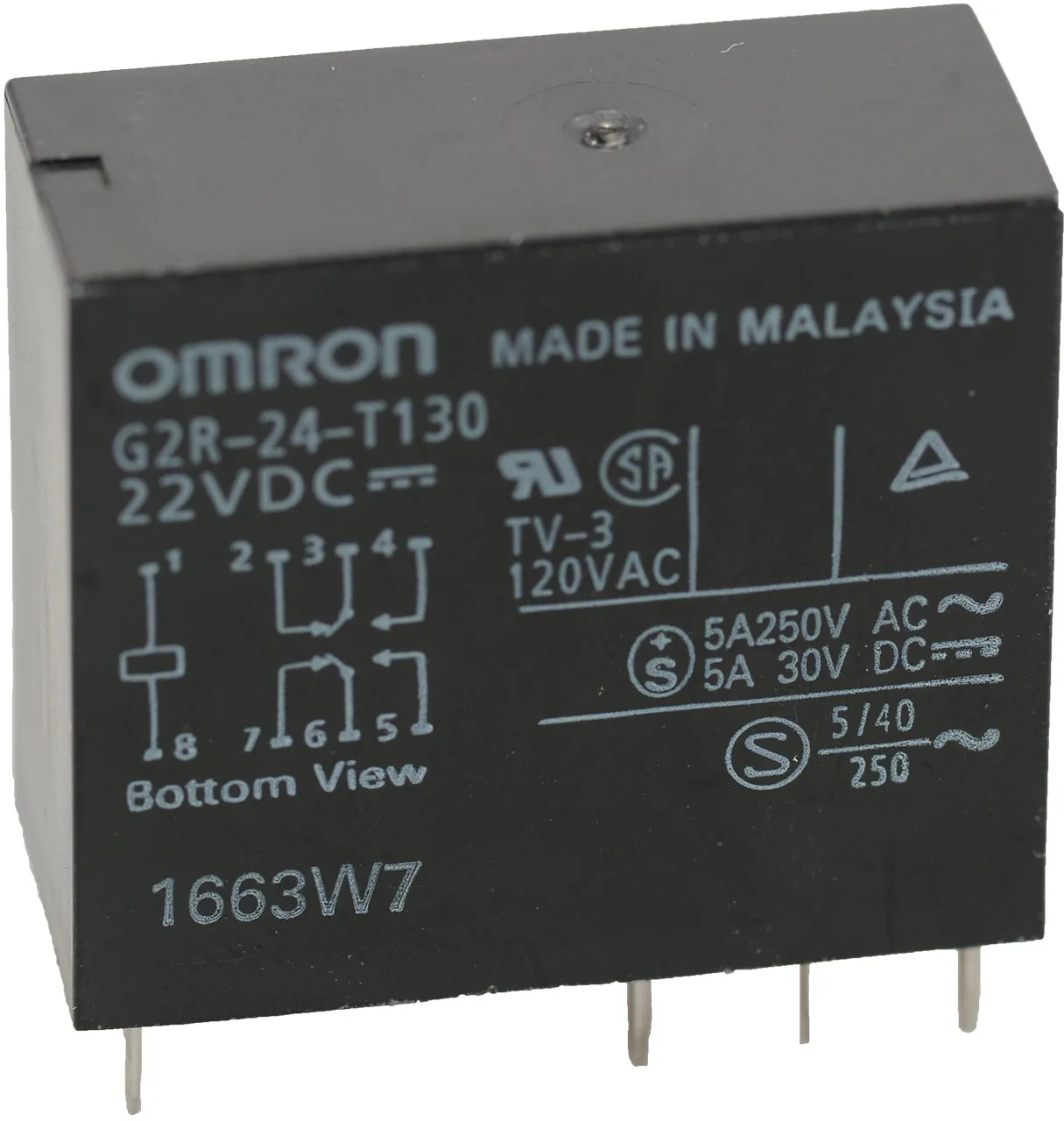

General Purpose Relay DPST-NO/NC (1 Form A, 1 Form B) 4A 22VDC Coil Chassis Mount

Specifications

  • Series: G2R
  • Mounting Type: Chassis Mount
  • Coil Voltage: 22 VDC
  • Contact Form: DPST-NO/NC (1 Form A, 1 Form B)
  • Contact Rating: 4 A
  • Switching Voltage: 380 VAC, 125 VDC - Max
  • Coil Type: Non Latching
  • Termination Style: Quick Connect - 0.187" (4.7mm)
  • Seal Rating: Sealed - Fully
  • Operate Time: 15 ms
  • Release Time: 5 ms
  • Operating Temperature: -40°C to 70°C
  • Contact Material: Silver Alloy, Cadmium Free
  • Relay Type: General Purpose
  • Base Number: G2R-24

Product Identification

Family:G2R

Compliance

RoHS Status:ROHS Compliant

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:70°C

Features

Pins:8
Relay Construction:Non-Latching
Minimum Dropout Voltage:n/a
Coil Voltage:22 VDC
Maximum Pick-Up Voltage:N/A
Contact Current:4 A
Operate Time:15 ms
Contact Voltage:380 VAC, 125 VDC
Contact Form:DPST-NO/NC
Coil Resistance:N/A
,
