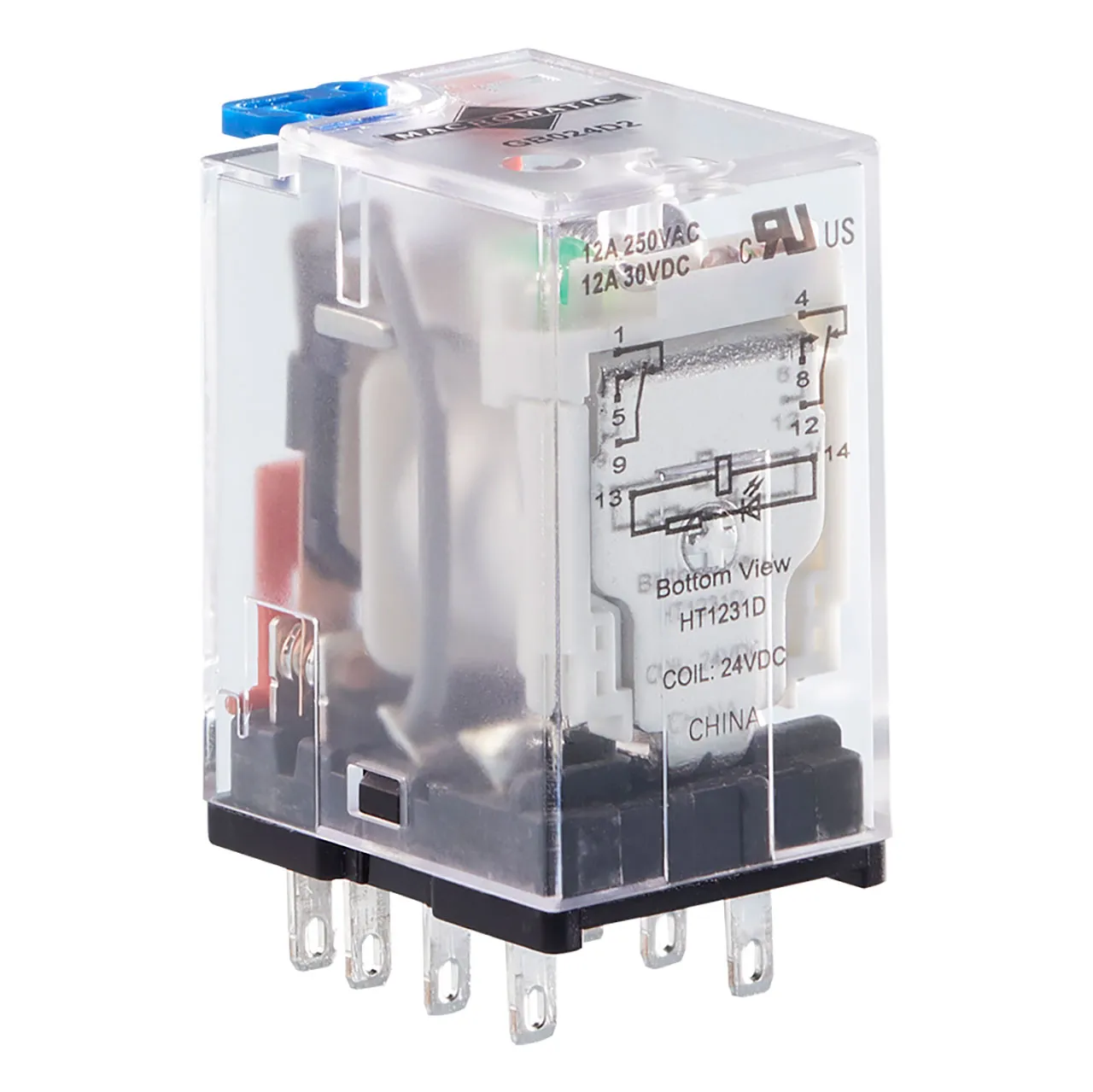

General Purpose Relay DPDT 24VDC 12A Blade Terminals

Features

  • Family: GP
  • Function: GENERAL PURPOSE BLADE TERMINAL RELAY
  • Function Name: GB2FC
  • Input: 24V DC
  • Output: 12A 2 Form C
  • Load Burden: DC - Approximately 1.1 W; AC - Approximately 1.5 VA
  • Output Contacts: 12A 250V AC/30V DC, 3000 VA/360 W
  • Life: Mechanical - 20,000,000 operations; Electrical - 100,000 operations
  • Temperature: -40°C to 70°C (-40°F to 158°F)

Overview

Compact GB Series General Purpose Relays are used for applications requiring an economical solution. These 8-blade terminal relays provide indication of power status, push-to-test and 2 Form C output contacts. Available sockets can be either DIN-rail or screw-mounted.

,
