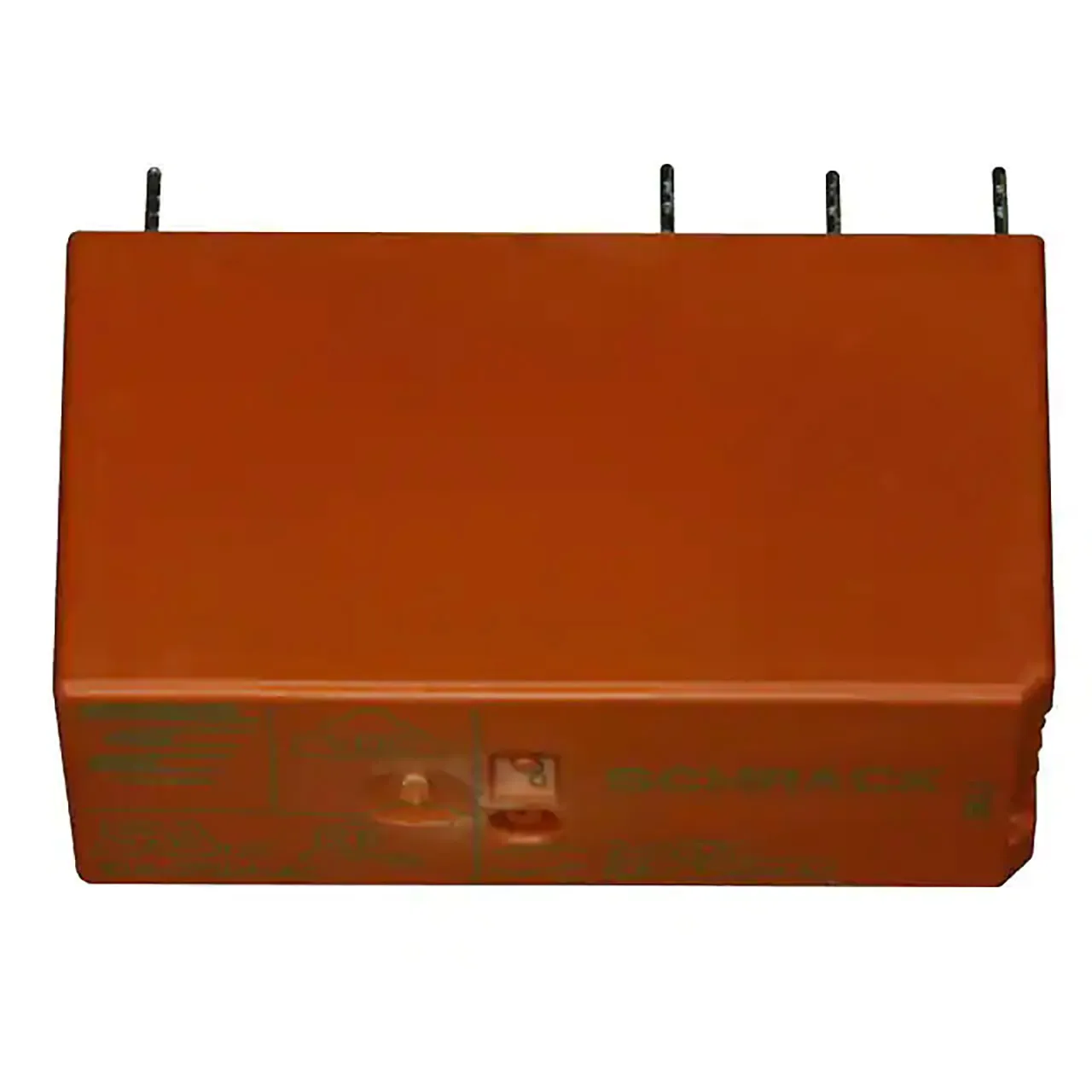

General Purpose Relay DPDT (2 Form C) 24VDC Coil Through Hole

Features

• Series: RT2, SCHRACK
• Mounting Type: Through Hole
• Coil Voltage: 24 VDC
• Contact Form: DPDT (2 Form C)
• Contact Rating (Current): 8 A
• Switching Voltage: 400 VAC - Max
• Coil Current: 16.7 mA
• Coil Type: Non-Latching
• Termination Style: PC Pin
• Seal Rating: Sealed - Flux Protection
• Coil Insulation: Class F
• Must Operate Voltage: 16.8 VDC
• Must Release Voltage: 2.4 VDC
• Operate Time: 8 ms
• Release Time: 6 ms
• Operating Temperature: -40°C to 85°C
• Contact Material: Silver Nickel (AgNi)
• Relay Type: General Purpose
• Coil Resistance: 1.44 kOhms
• Base Number: RT4
