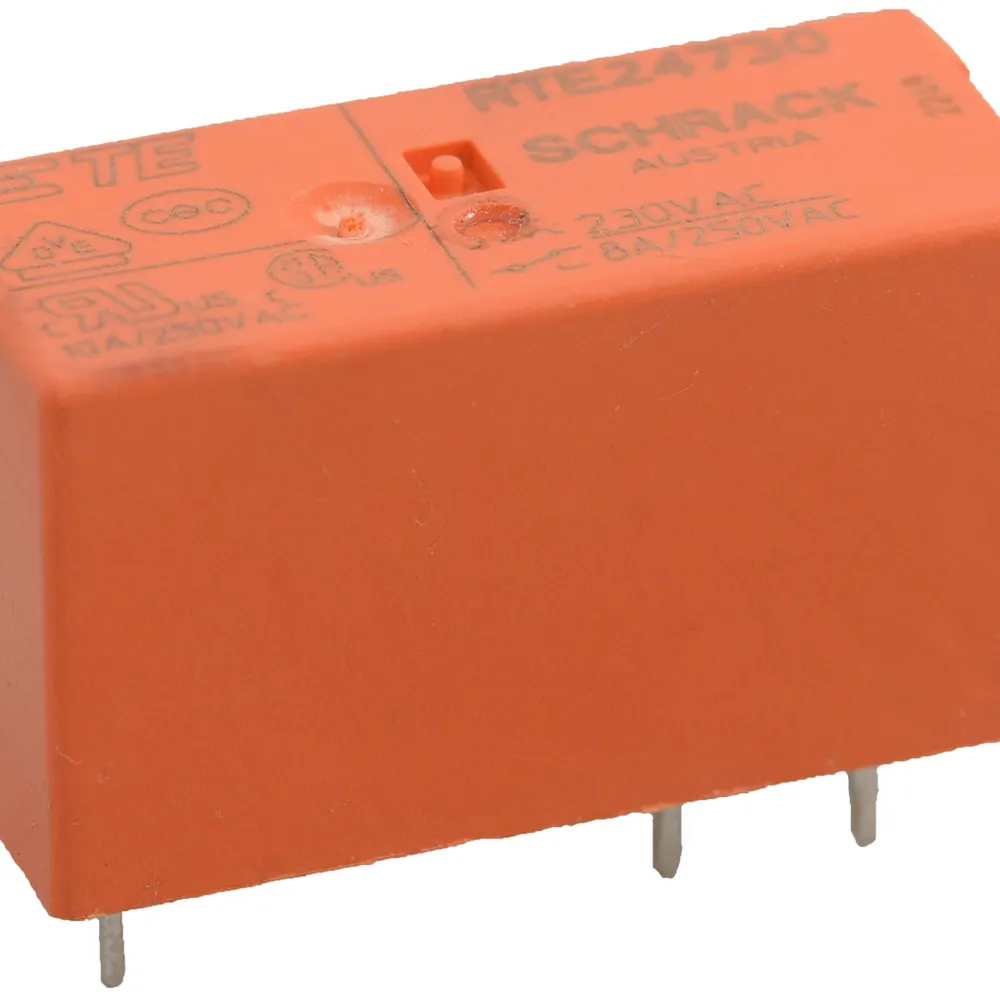

General Purpose Relay DPDT (2 Form C) 230VAC Coil Through Hole

Features

  • Mounting Type: Through Hole
  • Coil Voltage: 230 VAC
  • Contact Form: DPDT (2 Form C)
  • Contact Rating (Current): 8 A
  • Switching Voltage: 400 VAC - Max
  • Load - Max Switching: 3200 VA
  • Coil Current: 7.1 mA
  • Coil Type: Non Latching
  • Termination Style: PC Pin
  • Seal Rating: Sealed - Fully
  • Coil Insulation: Class F
  • Must Operate Voltage: 172.5 VAC
  • Must Release Voltage: 34.5 VAC
  • Operate Time: 10 ms
  • Release Time: 5 ms
  • Operating Temperature: -40°C to 70°C
  • Contact Material: Silver Nickel (AgNi)
  • Approval Agency: CQC, CSA, UL, CUL, VDE
  • Relay Type: General Purpose
  • Coil Resistance: 32.5 kOhms

Compliance

RoHS Status:ROHS Compliant

Dimensions & Appearance

Height:0.62 in.
Width:0.50 in.
Length:1.14 in.

Features

Coil Current:7.1 mA
Coil Voltage:230 VAC
Contact Form:DPDT
Coil Resistance:32500 Ohm
Termination:PC Pin
Current Rating:8 A
,
