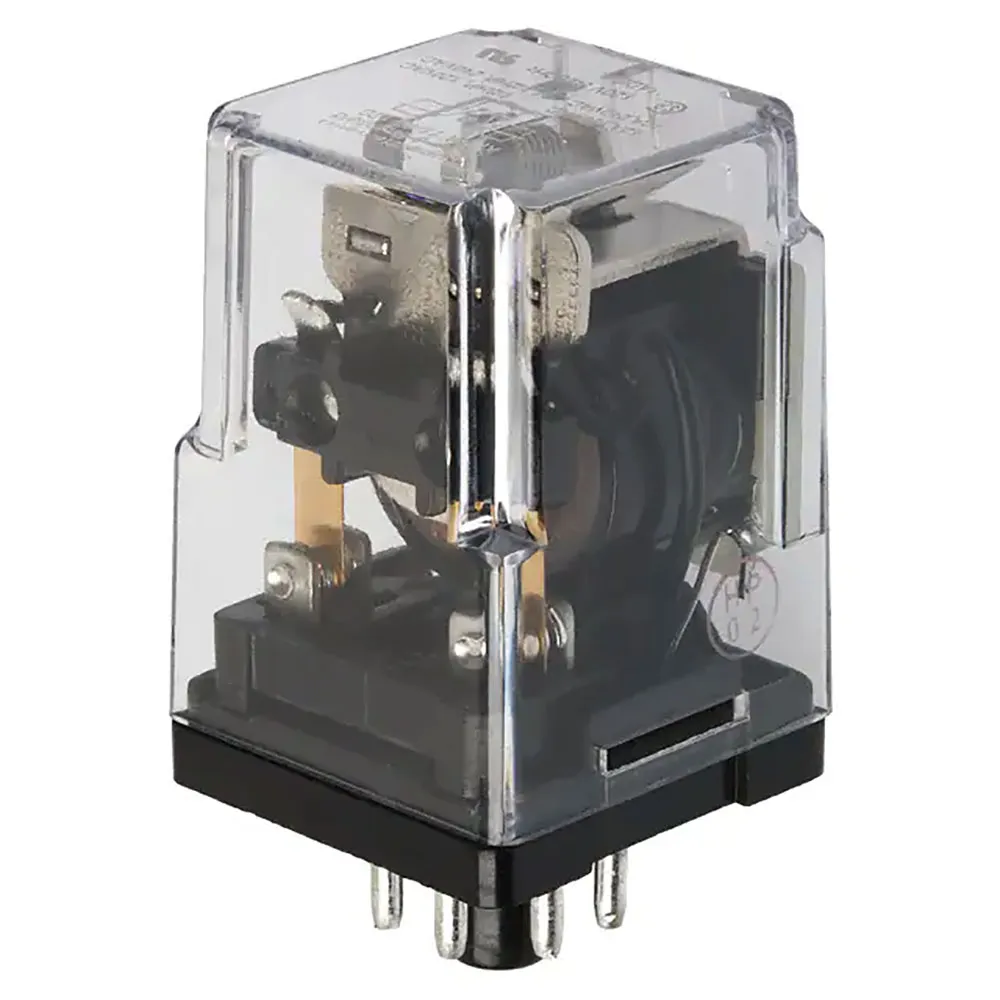

General Purpose Relay DPDT (2 Form C) 120VAC Coil 10A Industrial Panel Plug-In

Specifications

• Mounting Type: Socketable
• Coil Voltage: 120 VAC
• Contact Form: DPDT (2 Form C)
• Contact Rating (Current): 10 A
• Switching Voltage: 240 VAC - Max
• Coil Current: 17.5 mA
• Coil Type: Non Latching
• Termination Style: Plug-In, 8-Pin Octal
• Seal Rating: n/a
• Coil Insulation: Class B
• Must Operate Voltage: 102 VAC
• Must Release Voltage: n/a
• Operate Time: n/a
• Release Time: n/a
• Operating Temperature: -45°C to 55°C
• Contact Material: Silver Cadmium Oxide (AgCdO)
• Relay Type: General Purpose
• Coil Resistance: 2250 Ohms
• Base Number: KRPA-11
