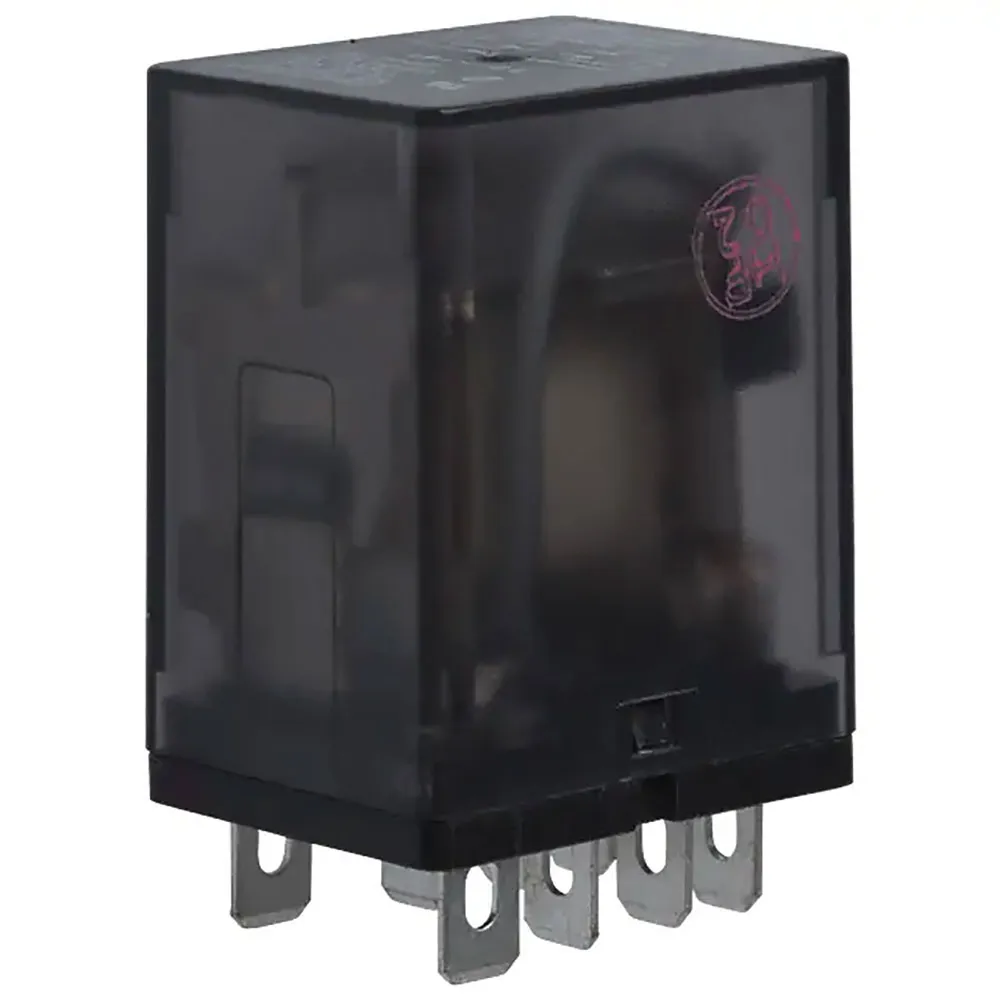

General Purpose Relay DPDT (2 Form C) 12 VDC Coil 15A Industrial Panel Plug-In

Specifications

• Mounting Type: Socketable
• Coil Voltage: 12 VDC
• Contact Form: DPDT (2 Form C)
• Contact Rating (Current): 15 A
• Switching Voltage: 120 VAC - Max
• Coil Current: 75 mA
• Coil Type: Non Latching
• Features: Lighted Indicator
• Termination Style: Plug In, Quick Connect - 0.187" (4.7 mm)
• Seal Rating: n/a
• Coil Insulation: Class B
• Must Operate Voltage: 9 VDC
• Must Release Voltage: 1.2 VDC
• Operate Time: 13 ms
• Release Time: 10 ms
• Operating Temperature: -45°C to 70°C
• Contact Material: Silver Cadmium Oxide (AgCdO)
• Relay Type: General Purpose
• Coil Resistance: 160 Ohms
• Base Number: K10P
