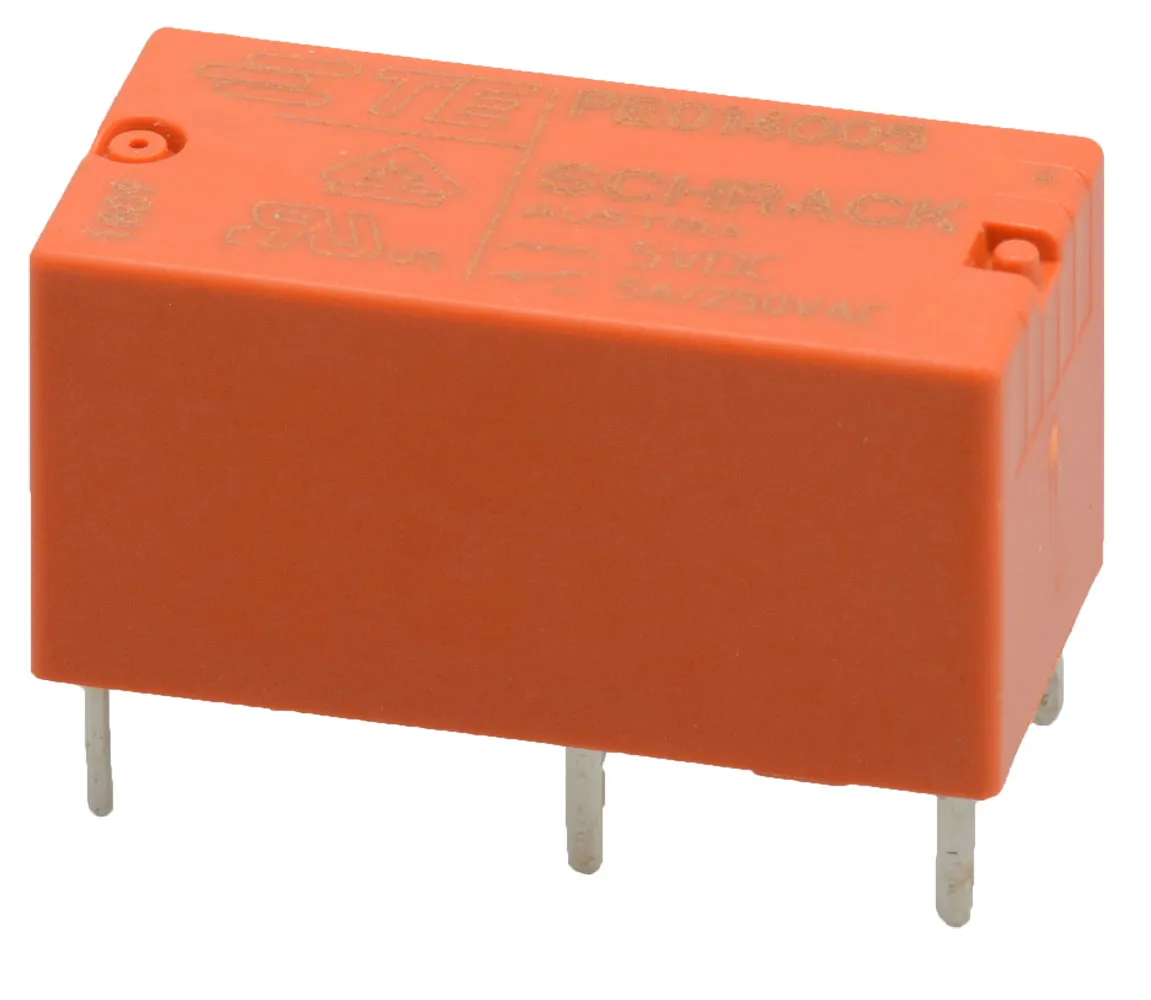

General Purpose Relay 5VDC SPDT (1 Form C) Non-Latching 5A 400VAC

Specifications

  • Series: PE, Schrack
  • Mounting Type: Through Hole
  • Coil Voltage: 5 VDC
  • Contact Form: SPDT (1 Form C)
  • Contact Rating (Current): 5 A
  • Switching Voltage: 400 VAC - Max
  • Coil Current: 40 mA
  • Coil Type: Non-Latching
  • Termination Style: PC Pin
  • Seal Rating: Flux Protection Sealed
  • Must Operate Voltage: 3.8 VDC
  • Must Release Voltage: 0.5 VDC
  • Operate Time: 8 ms
  • Release Time: 8 ms
  • Operating Temperature: -40°C to 85°C
  • Contact Material: Silver Nickel (AgNi)
  • Relay Type: General Purpose
  • Coil Resistance: 125 Ohms

Compliance

RoHS Status:ROHS Compliant

Dimensions & Appearance

Width:10 mm
Height:10 mm
Length:20 mm

Features

Coil Voltage:5 VDC
Pins:5
Relay Construction:Non-Latching
Contact Current:10 A
Coil Resistance:125 Ohm
Contact Voltage:250AC
Contact Form:SPDT
,
