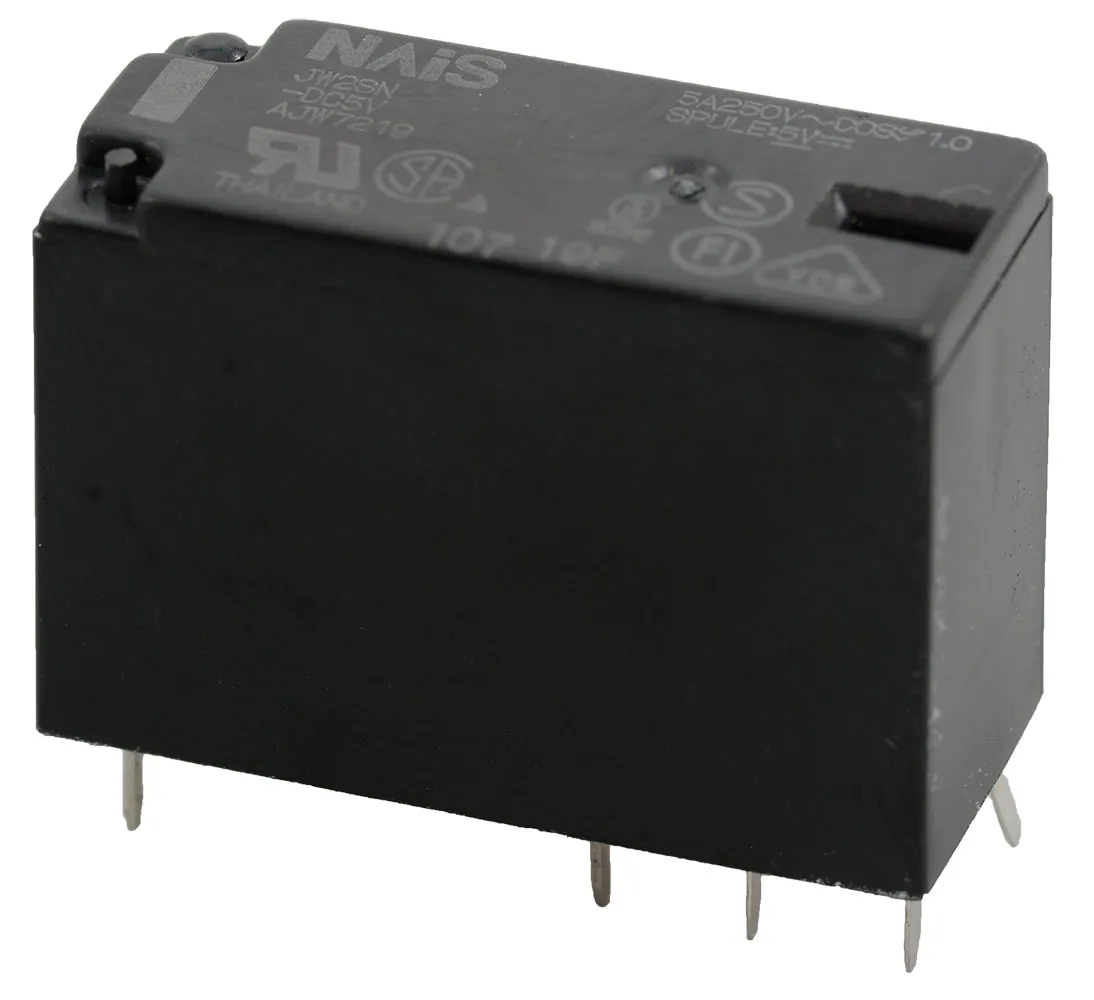

General Purpose Relay 5V DPDT (2 Form C) Non-Latching 5A 250VAC 30VDC

Specifications

  • Series: JW
  • Mounting Type: Through Hole
  • Coil Voltage: 5 VDC
  • Contact Form: DPDT (2 Form C)
  • Contact Rating (Current): 5 A
  • Switching Voltage: 250 VAC, 30 VDC - Max
  • Coil Current: 106 mA
  • Coil Type: Non-Latching
  • Termination Style: PC Pin
  • Seal Rating: Fully Sealed
  • Must Operate Voltage: 3.5 VDC
  • Must Release Voltage: 0.5 VDC
  • Operate Time: 15 ms
  • Release Time: 5 ms
  • Operating Temperature: -40°C to 60°C
  • Contact Material: Silver Nickel (AgNi)
  • Relay Type: General Purpose
  • Coil Resistance: 47 Ohms

Dimensions & Appearance

Width:12.8 mm
Height:20 mm
Length:28.6 mm

Features

Coil Voltage:5 VDC
Pins:8
Relay Construction:Non-Latching
Coil Resistance:47 Ohm
Contact Current:5 A
Contact Voltage:250 VAC, 30 VDC
Contact Form:DPDT
,
