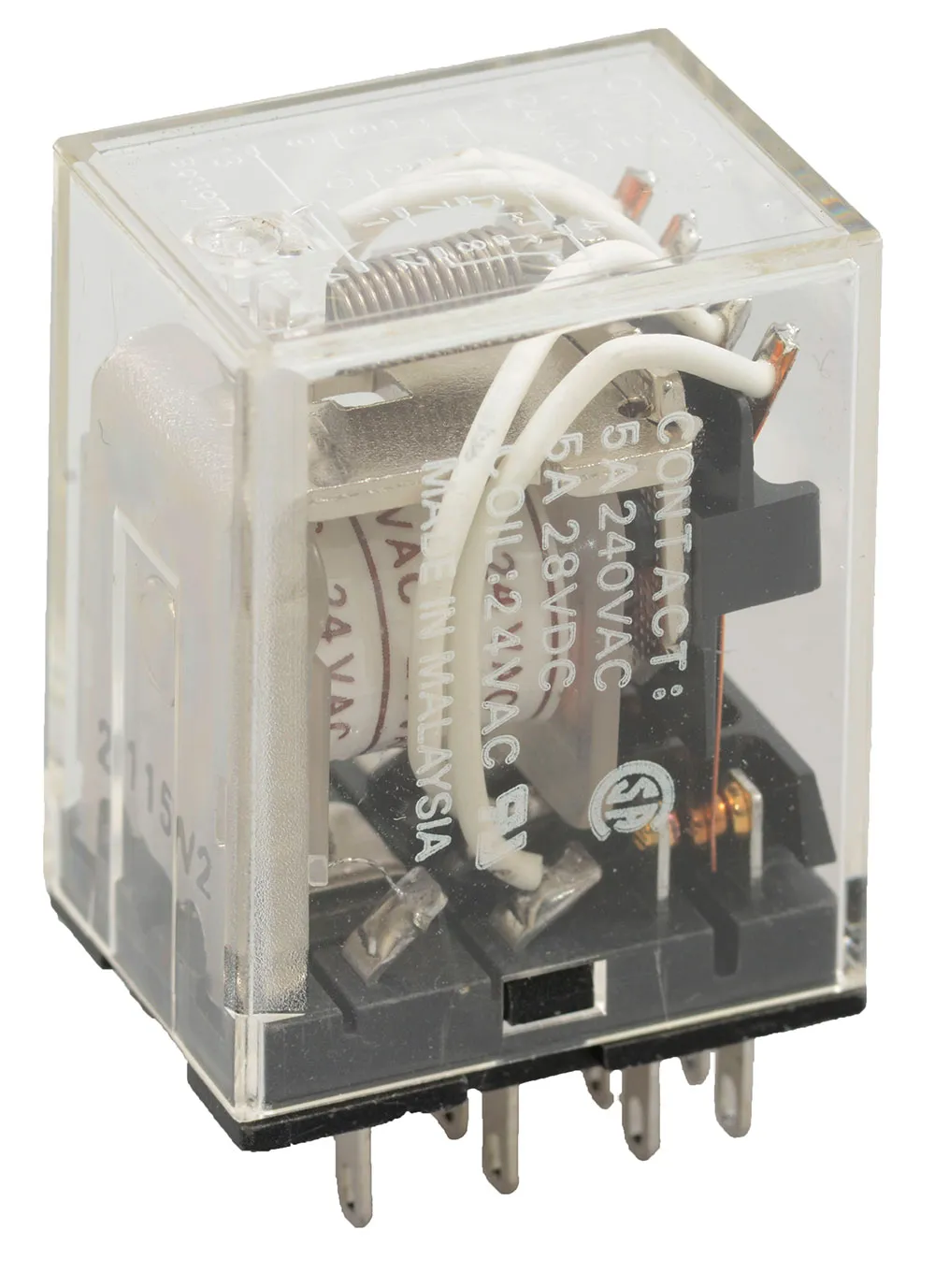

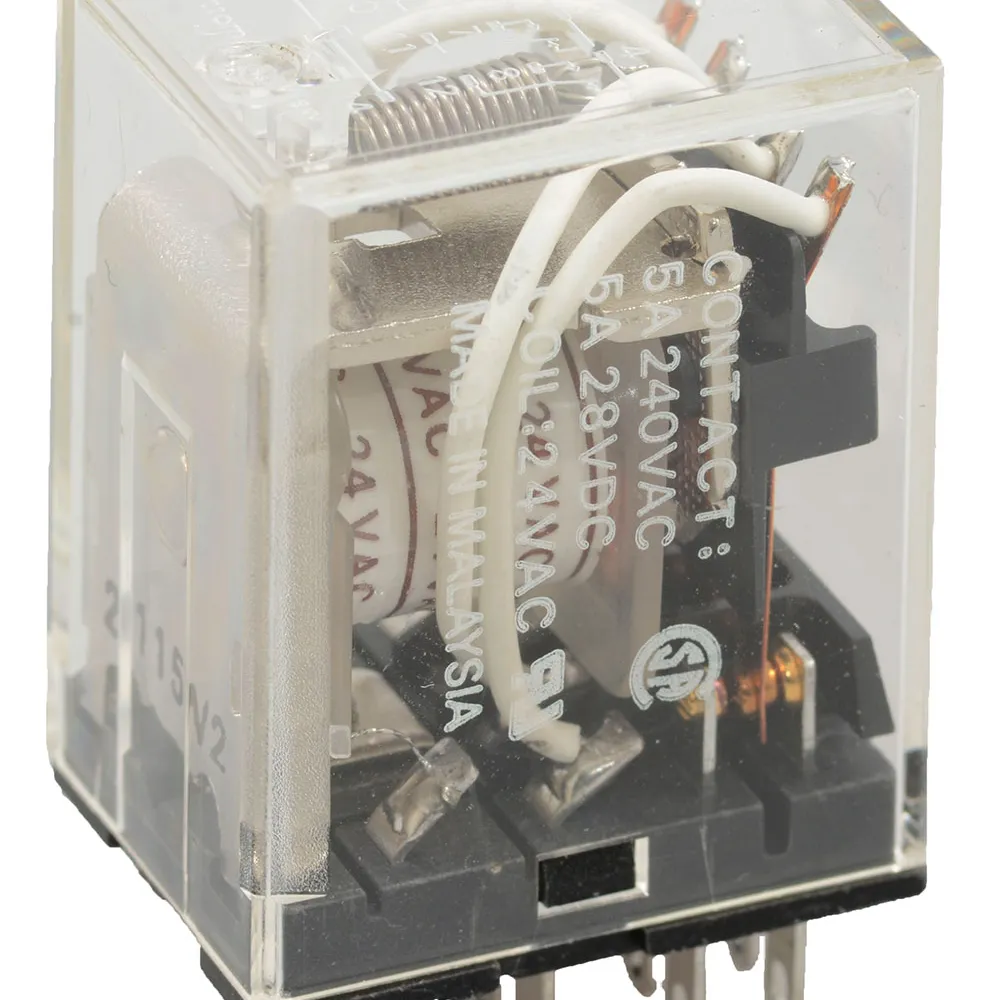

General Purpose Relay 4PDT 3A 24VAC Coil 180 Ohm

Clearance

Jameco Part #:

Manufacturer #:

HTS code:8536.49.0080

Product Price:

$14.950

In Stock: 0

Quantity	Unit Price	You Save	Discount
1+	$3.250	11.70	78.26%
10+	$2.950	12.00	80.27%
50+	$2.590	12.36	82.68%
100+	$2.290	12.66	84.68%

Coil Voltage: 24 VAC
Contact Form: 4PDT
Contact Rating (Current): 3 A @ 220 VAC/24 VDC (resistive); 0.8 A @ 220 VAC/1.5 A @ 24 VDC
Non-latching
Termination Style: PC Pin/socket terminals
Seal Rating: Not sealed
Contacts: AgCdO

Features

Coil Voltage:24 VAC

Coil Current:46 mA

Contact Form:4PDT

Coil Resistance:180 Ohm

Contact Rating:5A@220VAC, 5A@24VDC

Mating Socket (DIN Rail):P/N: 175557

Mating Socket (Standard):P/N: 175557
