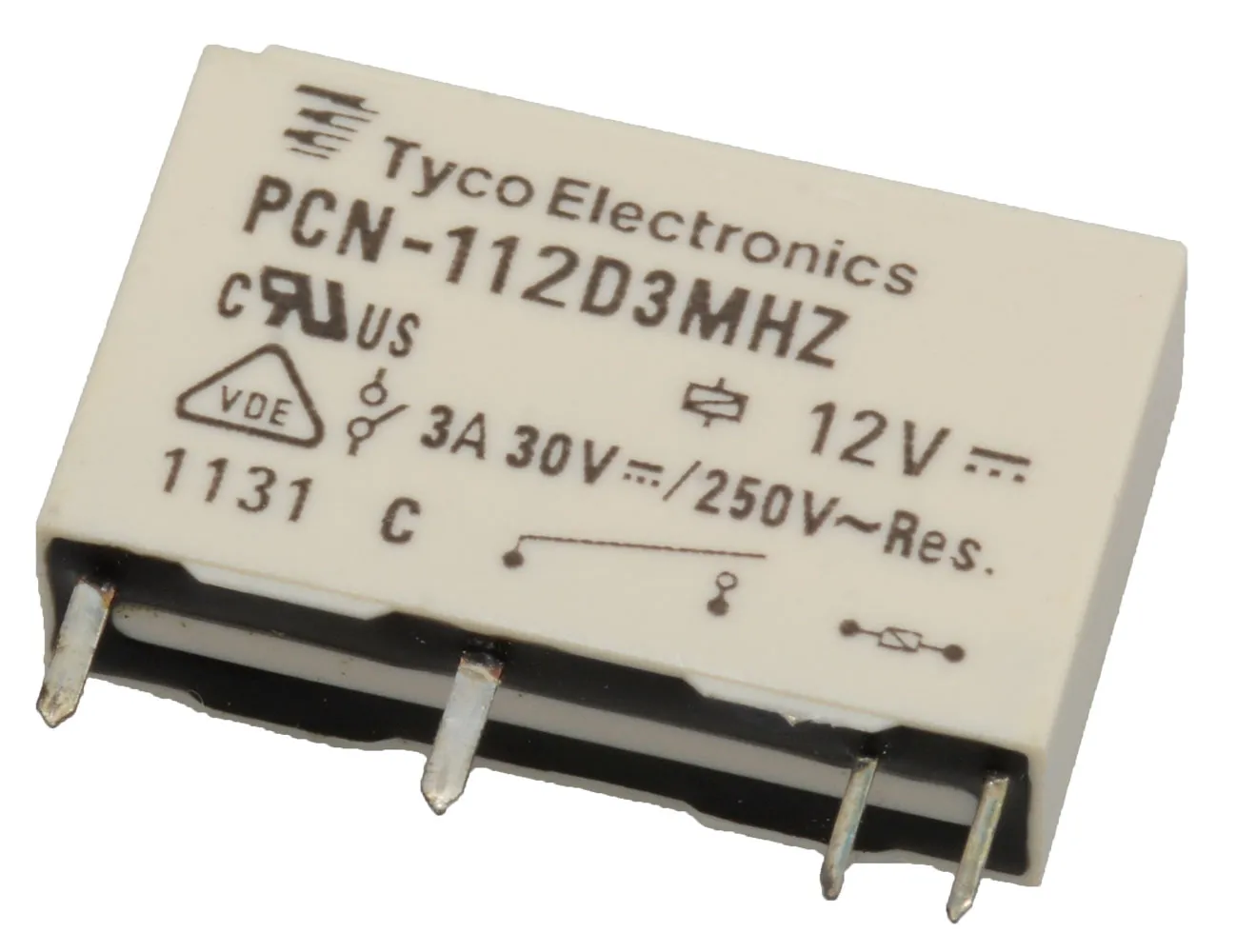

General Purpose Relay 12VDC SPST-NO (1 Form A) Non-Latching 3A 277VAC 125VDC

Specifications

  • Series: PCN, Schrack
  • Mounting Type: Through Hole
  • Coil Voltage: 12 VDC
  • Contact Form: SPST-NO (1 Form A)
  • Contact Rating (Current): 3 A
  • Switching Voltage: 277 VAC, 125 VDC- Max
  • Coil Current: 10 mA
  • Coil Type: Non-Latching
  • Termination Style: PC Pin
  • Seal Rating: Fully Sealed
  • Must Operate Voltage: 8.4 VDC
  • Must Release Voltage: 1.2 VDC
  • Operate Time: 8 ms
  • Release Time: 3 ms
  • Operating Temperature: -30°C to 70°C
  • Contact Material: Silver Nickel (AgNi)
  • Relay Type: General Purpose
  • Coil Resistance: 1200 Ohms

Dimensions & Appearance

Height:12.5 mm
Width:5 mm
Length:20 mm

Features

Pins:4
Coil Voltage:12 VDC
Relay Construction:Non-Latching
Contact Current:3 A
Contact Voltage:250 VAC, 30 VDC
Contact Form:SPST-NO
Coil Resistance:1200 Ohm
,
