General Purpose 1P 120V AC/DC 6A 6mm DIN

Macromatic

Jameco Part #:

Manufacturer #:

Non Cancelable

Non Returnable

Product Price:

$18.950

In Stock: 0

Quantity	Unit Price	You Save	Discount
1+	$18.950	-	-
10+	$17.950	1.00	5.28%
50+	$16.950	2.00	10.55%

Features

Family: GP
Function: GENERAL PURPOSE SLIM RELAY
Function Name: GSC120C
Input: 120V AC/DC
Output: 6A 1 Form C
Load Burden: Maximum 250 mW
Output Contacts: 1C: 6A 250V AC/30V DC, 1500 VA/180 W
Life: Mechanical - 10,000,000 operations; Electrical - 30,000 operations
Temperature: 24V AC/DC: -40°C to 70°C (-40°F to 158°F); 120V AC/DC: -40°C to 55°C (-40°F to 131°F)
Mounting: Relay with included socket mounts on DIN-rail

Overview

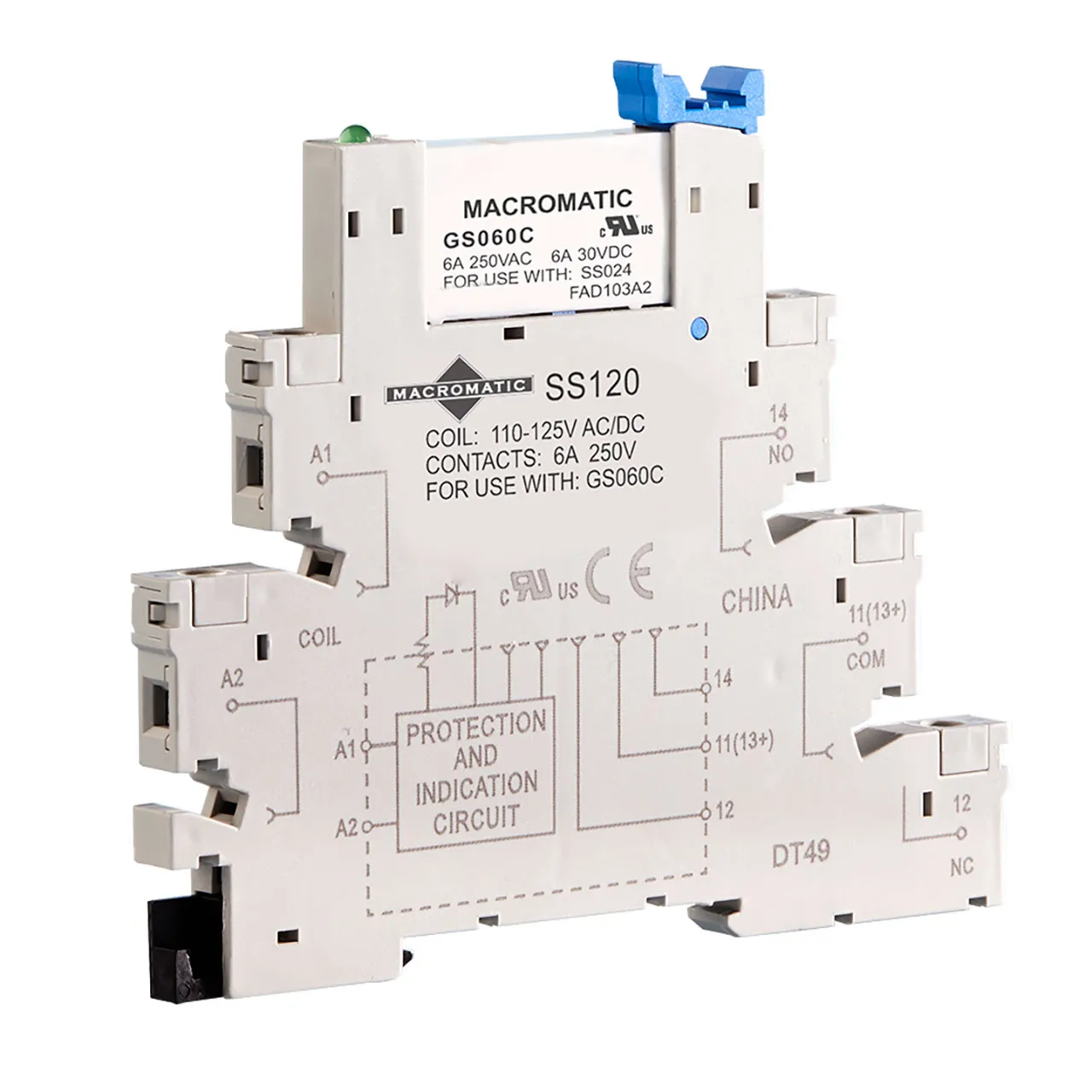

Compact GS Series General Purpose Relays are used for high density applications. The relay and sockets are assembled as one unit and must be used together, providing DIN-rail mounting. GSC120C is comprised of GS060C relay and SS120 socket. The relay and socket installation provides finger protection, indication of power status and 1 Form C output contact.
