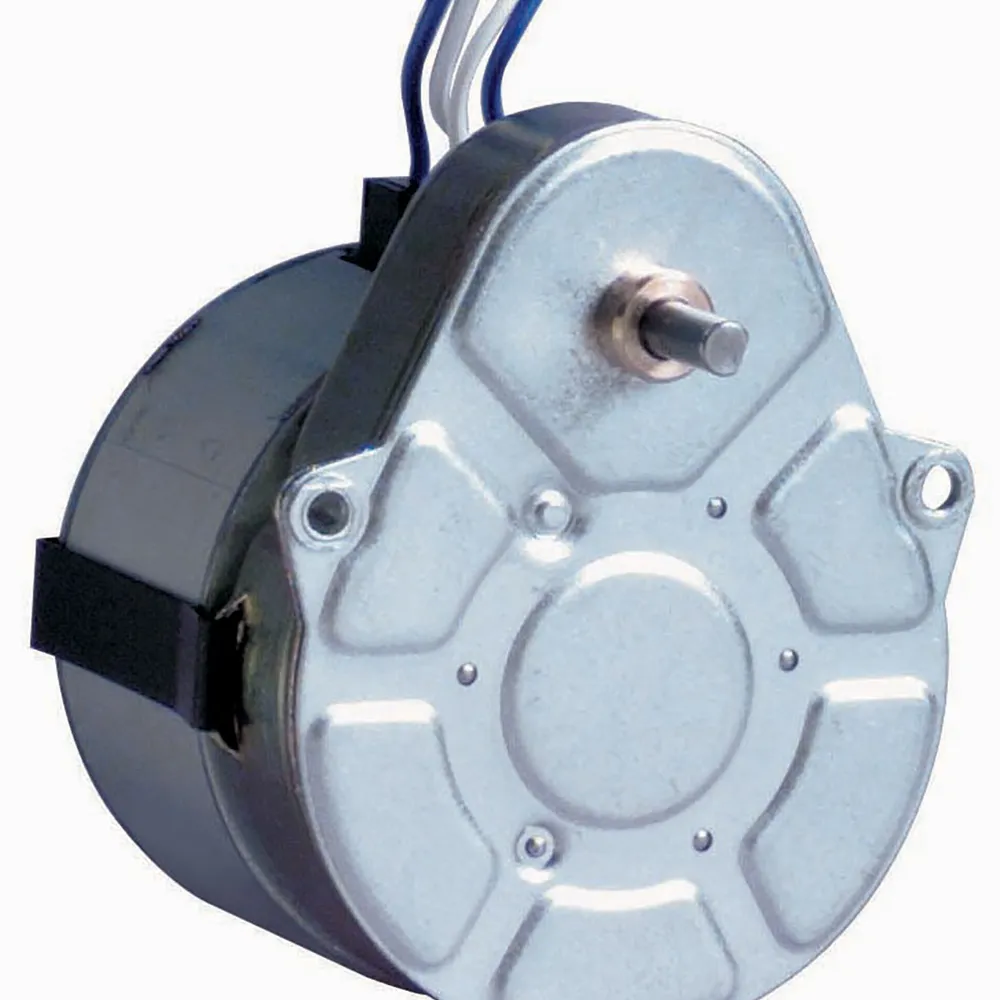

Geared Stepper Motor 829240 Reversible Step-7D5 Phase-2 R-10.7.Ohm Ratio-20 Shaft-Standard

Features

• Coil Type: Bipolar
• Voltage Rating: 6.3 VDC
• Current per Phase: 590 mA
• Step Angle: 7.5
• Resistance per Phase: 10.7 Ohms
• Holding Torque: 9.91 / 70
• Shaft Diameter: 0.157 in., 4 mm
• Shaft Length: 0.520 in., 13.20 mm
• Motor Size (Diameter x Length) (inch): Round - 2.559 in. Dia 65 mm
• NEMA Frame Size: 21
• Mounting Hole: 1.874 in., 47.60 mm
• Additional Feature: Flatted Shaft, Reversible Direction
• Product Type: Permanent Magnet Gear Motor
• Termination: Wire Leads
• Harmonized Code: 8501109990
• ECCN: EAR99

Overview

Geared Stepper Motor 829240 Reversible Step-7D5 Phase-2 R-10.7.Ohm Ratio-20 Shaft-Standard.

Media

• Product Identification

  Additional Feature:Flatted Shaft, Reversible Direction

  Product Type:Permanent Magnet Gear Motor

  Dimensions & Appearance

  Shaft Diameter:0.157 in., 4 mm

  Shaft Length:0.520 in., 13.20 mm

  Mounting Hole:1.874 in., 47.60 mm

  Features

  Coil Type:Bipolar

  Step Angle:7.5

  NEMA Frame Size:21

  Holding Torque:9.91 / 70

  Current per Phase:590 mA

  Resistance per Phase:10.7 Ohms

  Voltage Rating:6.3 VDC

  Motor Size (Diameter x Length) (inch):Round - 2.559 in. Dia 65 mm

  Termination:Wire Leads
