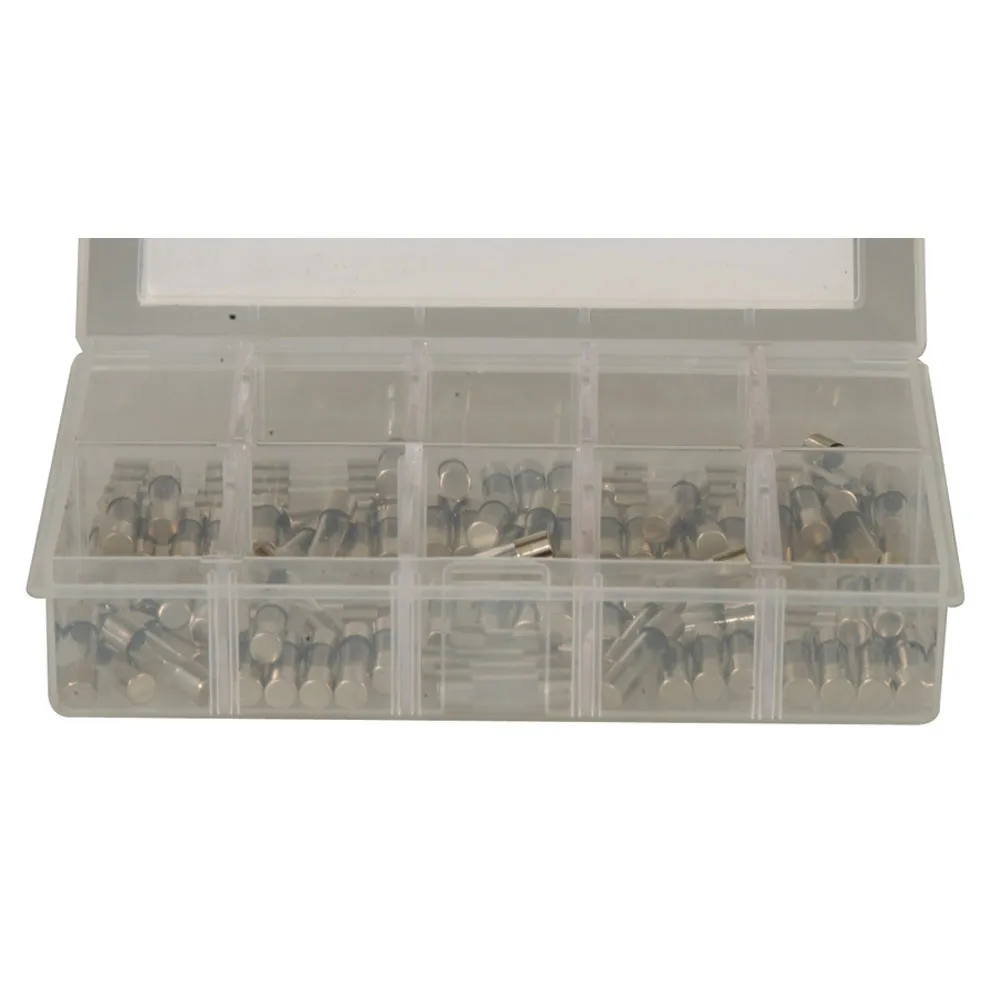

Fuse Kit

This fuse kit contains ten of the most popular fuse ratings in a single package. The ten compartment plastic box is included. These GMA/GDB type fast acting fuses open at five seconds max under 200% load.

Features:

• fast-acting
• 100 pieces: 10 pieces each of the following: 0.1A, 0.2A, 0.5A, 1A, 1.6A, 2A, 2.5A, 3A, 4A, 5A
• low breaking capacity

• Test specifications (opening time):
     10% load: 4 hrs min.
     135% load: 1 hr max.
     200% load: 5 sec. max.
• Packaging: plastic box with 10 compartments
• Construction: glass cartridge, silvered caps
• Specifications: IEC127, BS4265 and CEE4
• Voltage rating: 250V AC
• Breaking capacity: 35A
• Endurance: cycling test as specified by IEC127 and BS4265
• Ambient temperature: 5°F to 95°F according to IEC/BS, up to 158°F
