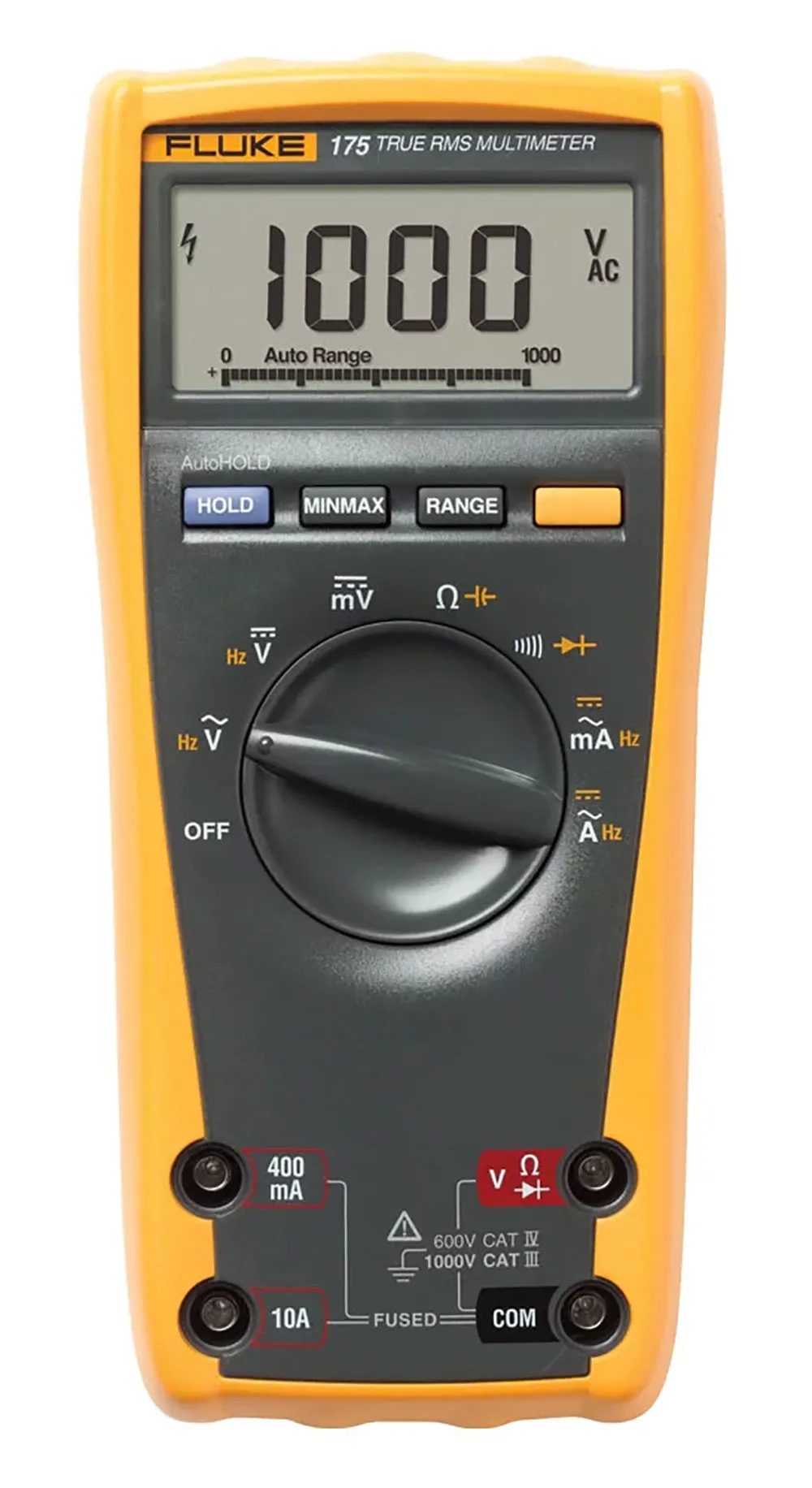

Fluke 175 6000-Count Digital Multimeter
Fluke Part No. 1564551Features
- True RMS reading
- Min./Max./Average functions
- Auto hold and manual hold
- IEC 1010 rating Cat IV 600V/Cat III 1000V
- Resolution: 100µV minimum
- DC/AC voltage ranges: 600mV to 1000V
- DC/AC current ranges: 60mA to 10A
- Resistance ranges: 600Ω to 50MΩ
- Capacitance ranges: 1000 µF to 10,000 µF
- Frequency ranges: (voltage input) 2 Hz to 100 kHz; (current input) 2Hz to 30kHz
- Temperature ranges: -40°C to +400°C (-40°F to +752°F)
- Basic DC accuracy of 0.15%
- Lifetime manufacturer's warranty
- Size: 6.3"L x 3.3"W x 9.2"H
- Weight: 1.5 lbs.
- Agency Approvals: UL, CSA, TUV, VDE (pending)
Compliance
RoHS Status:ROHS Compliant
Dimensions & Appearance
Style:Handheld
Features
Display Digits:4
Display Count:1999
Autorange:Yes
True RMS:Yes
DC Current Range (A):60m to 10
AC Current Range (A):60m to 10
Voltage Range (VDC):600m to 1000
Resistance Range (Ohms):600 to 50M
Capacitance Range:1000 nF to 9999 uF
Voltage Range (VAC):600m to 1000
Frequency Range:99.99 Hz to 99.99 kHz
Function:Voltage, Current, Resistance, Capacitance, Frequency, Continuity, Diode
