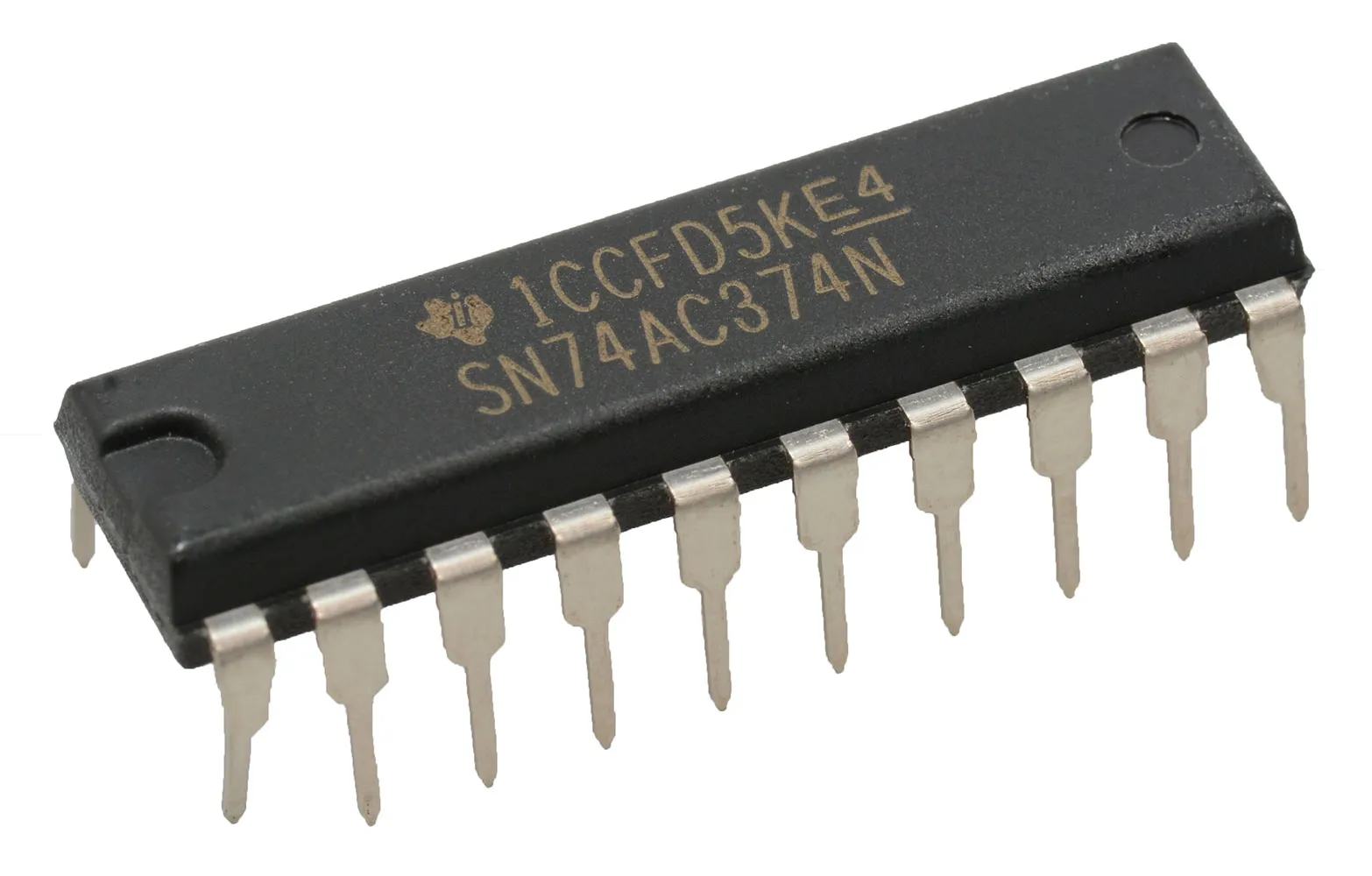

Flip Flop 1 Element D-Type 8-Bit Positive Edge DIP-20

Specifications

• Type: D-Type
• Output Type: Tri-State, Non-Inverted
• Number of Elements: 1
• Number of Bits per Element: 8
• Clock Frequency: 155 MHz
• Max Propagation Delay @ V, Max CL: 9.5 ns @ 5 V, 50 pF
• Trigger Type: Positive Edge
• Current - Output High, Low: 24 mA, 24 mA
• Voltage - Supply: 2 V to 6 V
• Current - Quiescent (Iq): 4 µA
• Input Capacitance: 4.5 pF
• Operating Temperature: -40°C to 85°C (TA)
• Mounting Type: Through Hole
• Package: 20-DIP (0.300", 7.62mm)
• Base Number: 74AC374
