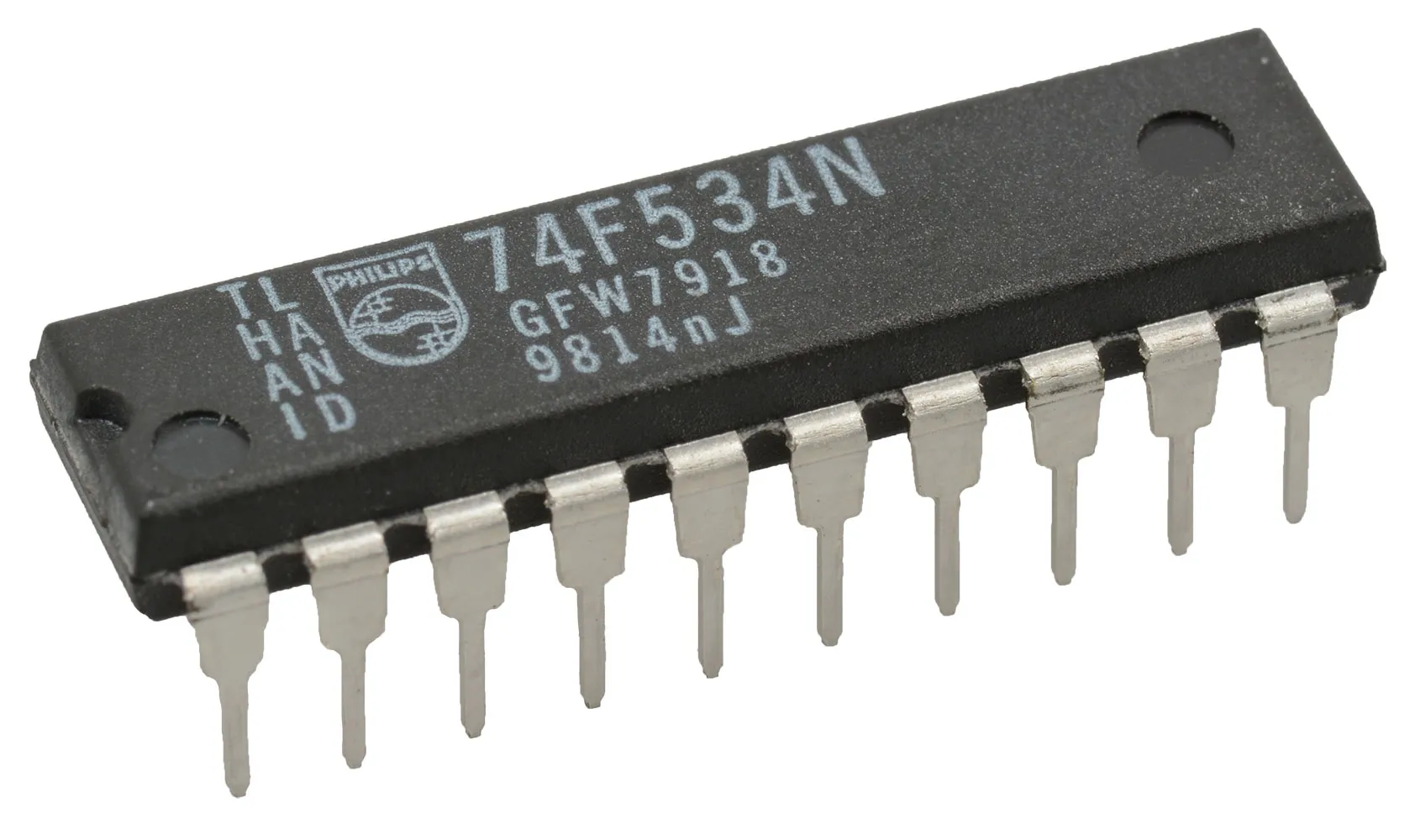

Flip Flop 1 Element D-Type 8 Bit Positive Edge DIP-20

Specifications

• Series: 74F
• Function: Standard
• Type: D-Type
• Output Type: Tri-State, Inverted
• Number of Elements: 1
• Number of Bits per Element: 8
• Clock Frequency: 165 MHz
• Max Propagation Delay @ V, Max CL: 7 ns @ 5 V, 50 pF
• Trigger Type: Positive Edge
• Current - Output High, Low: 3 mA, 24 mA
• Voltage - Supply: 4.5 V to 5.5 V
• Current - Quiescent (Iq): 86 mA
• Operating Temperature: 0°C to 70°C (TA)
• Mounting Type: Through Hole
• Package: 20-DIP (0.300", 7.62mm)
• Base Number: 74F534
