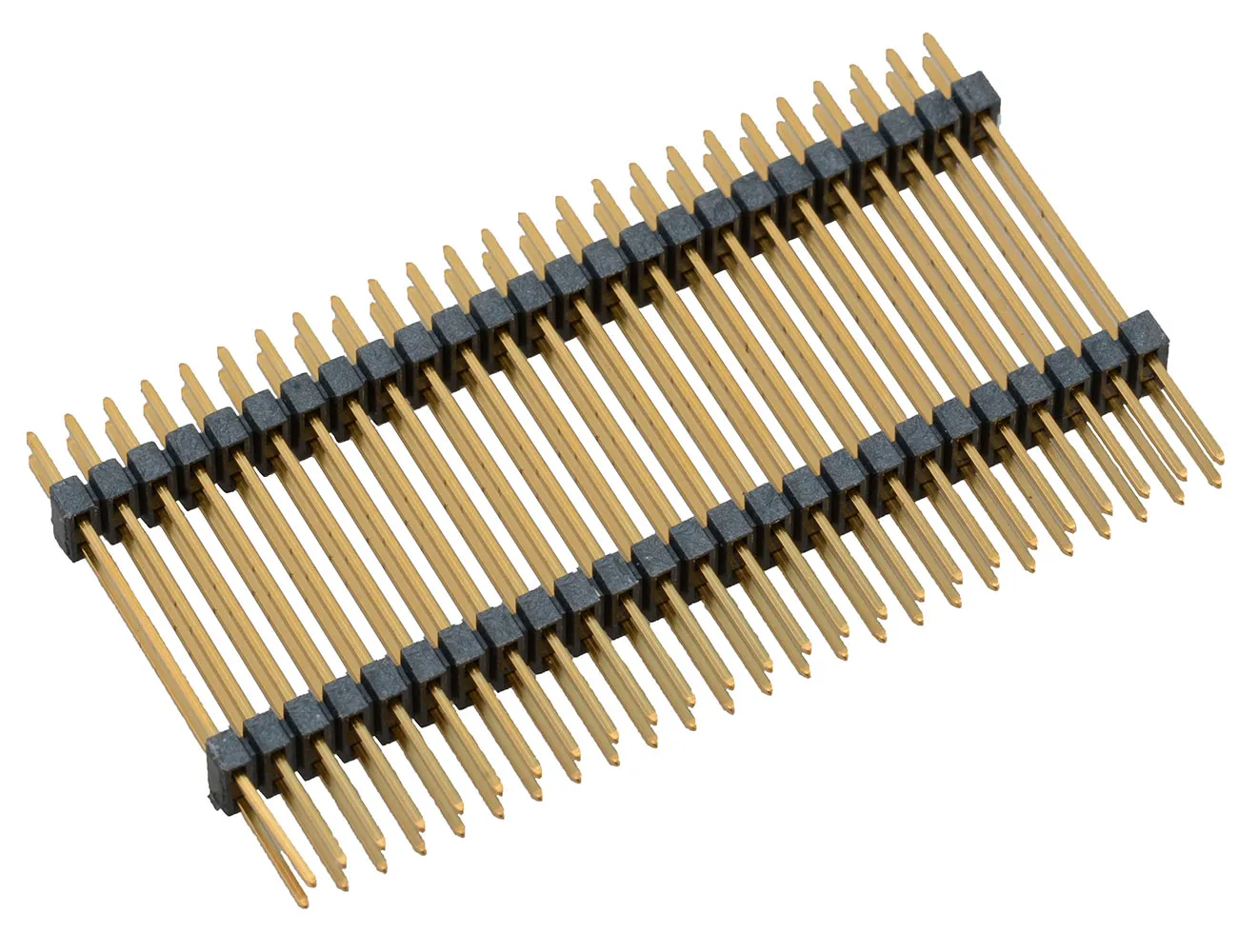

Flexible Board Stacker 50 Position Dual Row 2mm Pitch

Specifications

  • Number of Positions: 50 Position
  • Pitch: 2 mm
  • Number of Rows: 2 Row
  • Termination Style: Through Hole
  • Mounting Angle: Vertical
  • Current Rating: 5.2 A
  • Application: Elevated Board Staking
  • Stack Height: 3.05 mm
  • Contact Plating: Gold
  • Housing Material: Liquid Crystal Polymer (LCP)
  • Contact Material: Phosphor Bronze
  • Flammability Rating: UL 94 V-0
  • Mounting Style: Straight Pin
  • Maximum Operating Temperature: +125°C
  • Minimum Operating Temperature: -55°C

,
