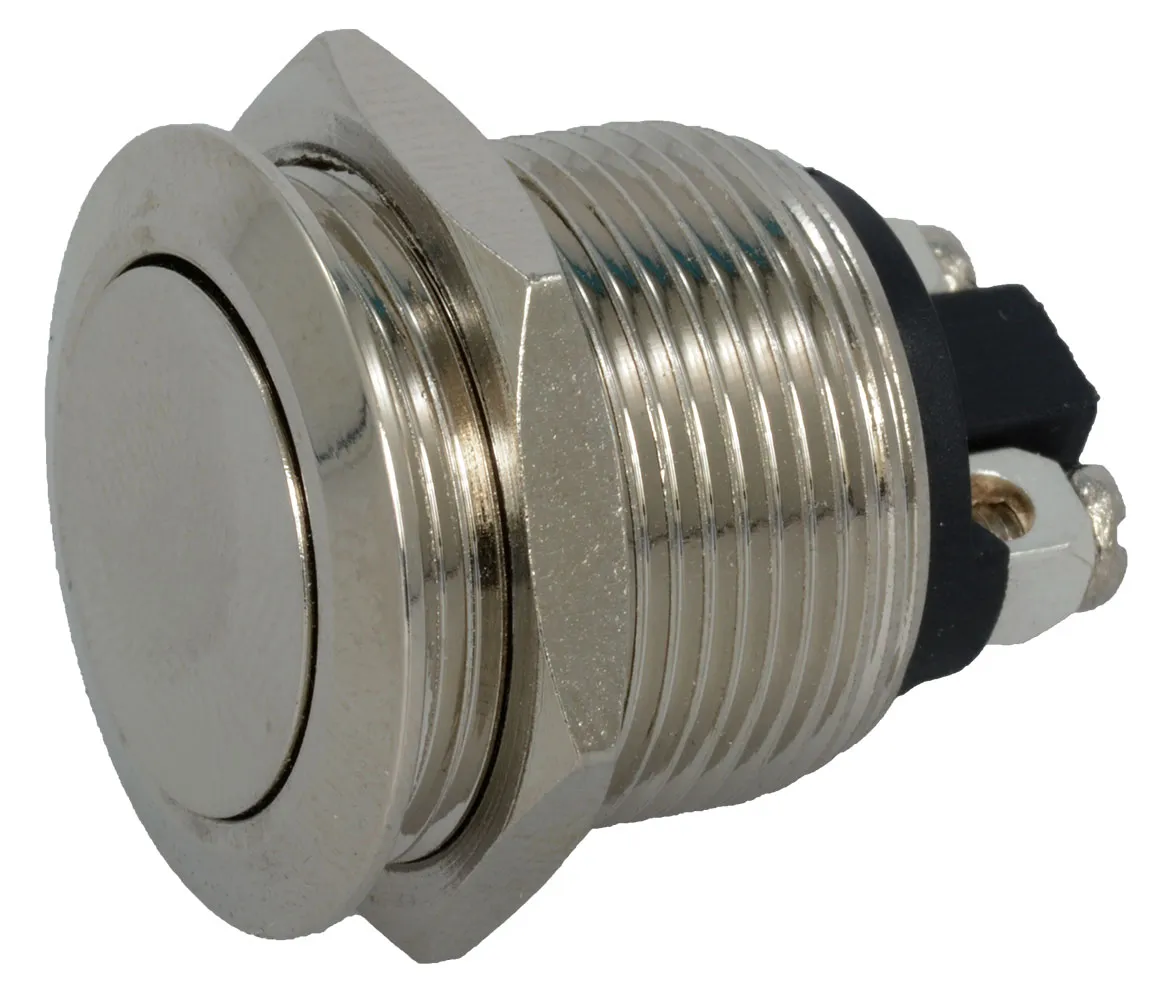

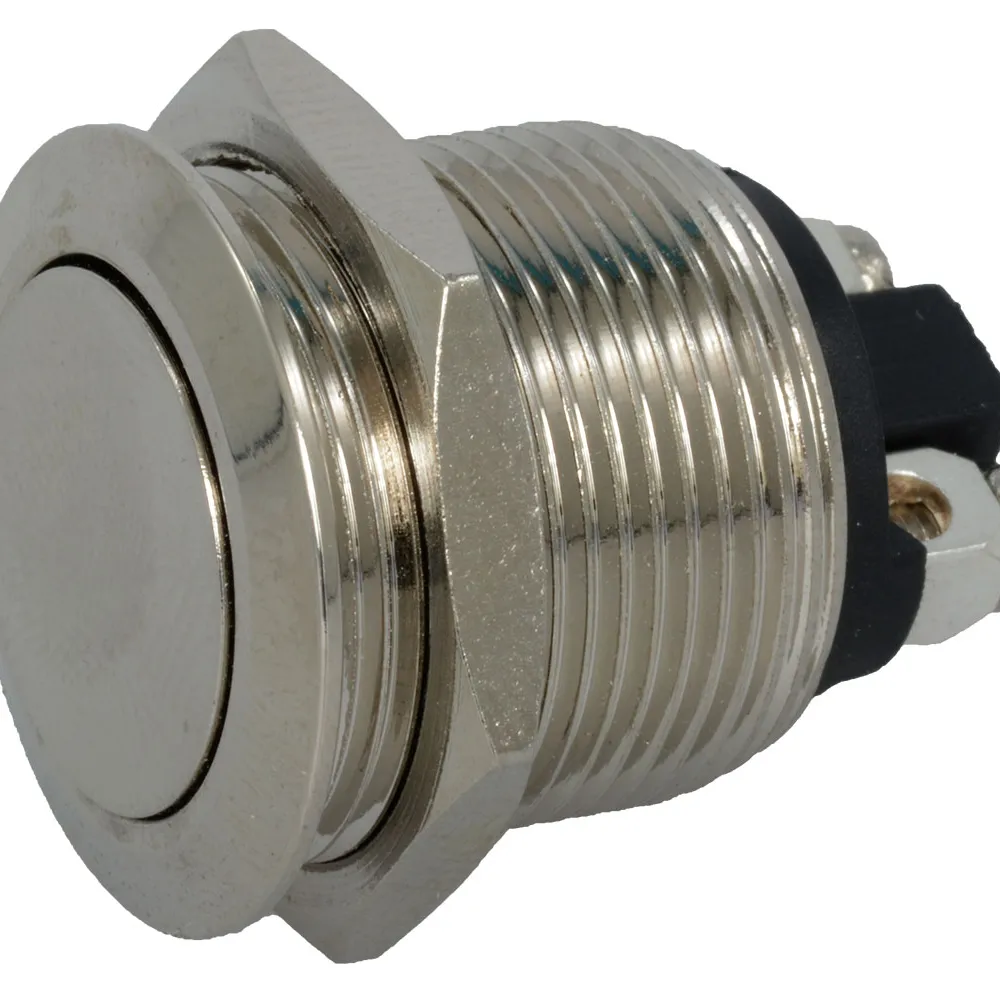

Flat Round Metal SPST Pushbutton Switch OFF-(ON)

Features

  • Anti-vandal
  • Flat, flush actuator

Specifications

  • Type: OFF-(ON) SPST
  • Ratings: 48V / 2A max.
  • Contacts: OFF-(ON) silver
  • Material: brass nickel
  • Contact resistance: 35mohm max.
  • Insulation resistance: 500V DC 100 Mohm min.
  • Dielectric strength: 1 min. 1000V AC
  • Mechanical life: 50000 cycles
  • Electrical life: 10000 cycles
  • Drill ∅: 0.75"
  • Screw terminals

Product Identification

Additional Feature:Anti-Vandal

Dimensions & Appearance

Mounting Style:Panel, Front
Length:0.87 in.
Body Color:Silver

Features

Pins:2
Switch Function:OFF-(ON)
Illumination Type:N/A
Pitch:0.37
Actuator Type:Domed Button (Anti-Vandal)
Contact Rating:2 A @ 125 VAC
Contact Form:SPST-NO
Color - Actuator/Cap:Silver
Termination Style:Solder Lugs
Voltage Rating:48 VDC
,
