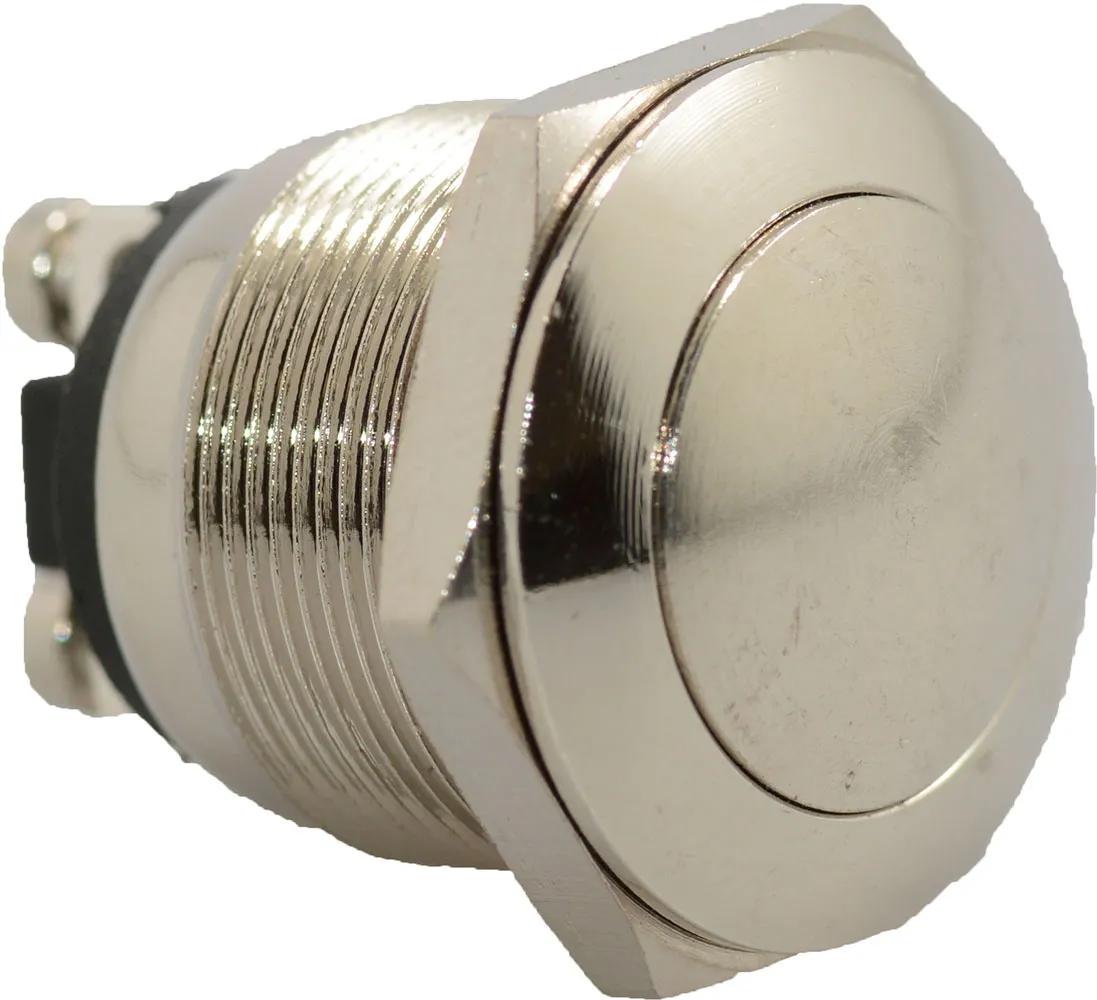

Flat Round Metal SPST Momentary Pushbutton Switch OFF-(ON) 24V 1A

Features

  • Anti-vandal
  • Flat, flush actuator

Specifications

  • Contact Form: SPST-NO
  • Switch Function: OFF-(ON) aka. OFF-Momentary
  • Ratings: 24V / 1A max.
  • Contacts: Silver
  • Material: Brass nickel
  • Contact Resistance: 35 mohm max.
  • Insulation Resistance: 500V DC 100 Mohm min.
  • Dielectric Strength: 1 min. 1000V AC
  • Mechanical Life: 50,000 cycles
  • Electrical Life: 10,000 cycles
  • Drill ∅: 0.75"
  • Screw terminals

Compliance

RoHS Status:ROHS Compliant

Dimensions & Appearance

Body Color:Silver

Features

Switch Function:OFF-(ON)
Illumination Type:N/A
Contact Rating:1 A @ 24 VDC
Contact Form:SPST-NO
Termination Style:Screw Terminals
Color - Actuator/Cap:Silver
,
