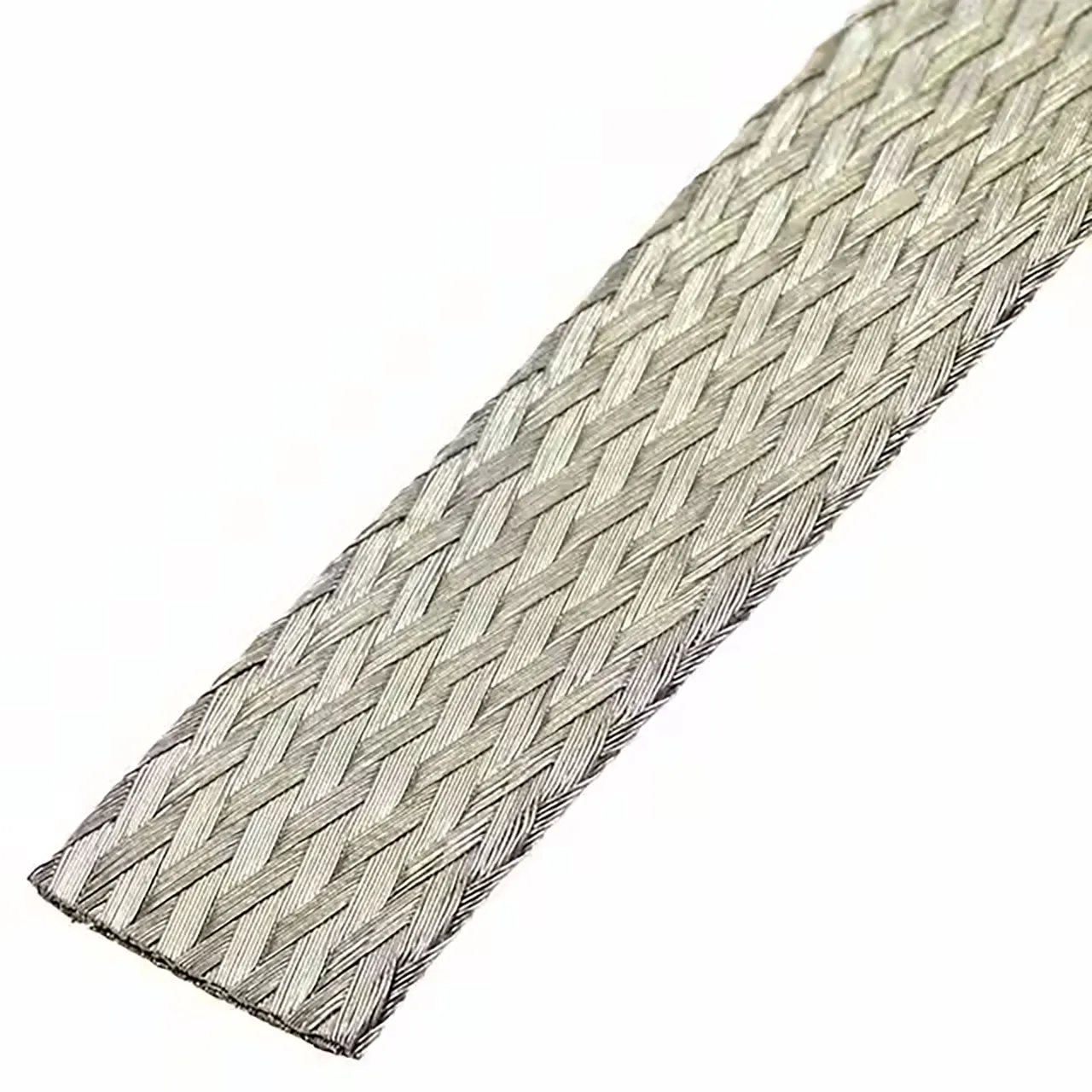

Flat Ground Braid 0.500" (12.70mm, 1/2") 48x8x36 10 AWG

Features

  • Inner Diameter: 0.500 in.
  • Outer Diameter: 0.530 in.
  • Approximate Wire Gauge: 10 AWG
  • Conductor Strand: 48 x 8 x 36
  • Current Rating: 53 A
  • Style: Flat
  • Length: 100 ft.

Overview

A tight weave of multi-strand, soft drawn tinned copper wire is an ideal shielding material for shielding around cables, ground straps, protective braid over hoses and tubing, or any other applications requiring woven tinned copper braid. In retrofit applications, it provides additional shielding efficiency.

Dimensions & Appearance

Style:Flat
Color:Silver
Length:100 ft.

Features

Wire Gauge (AWG):10
Conductor Strand:48 x 8 x 36
Inner Diameter:0.500 in.
Outer Diameter:0.530 in.
Current Rating:53 A
,
