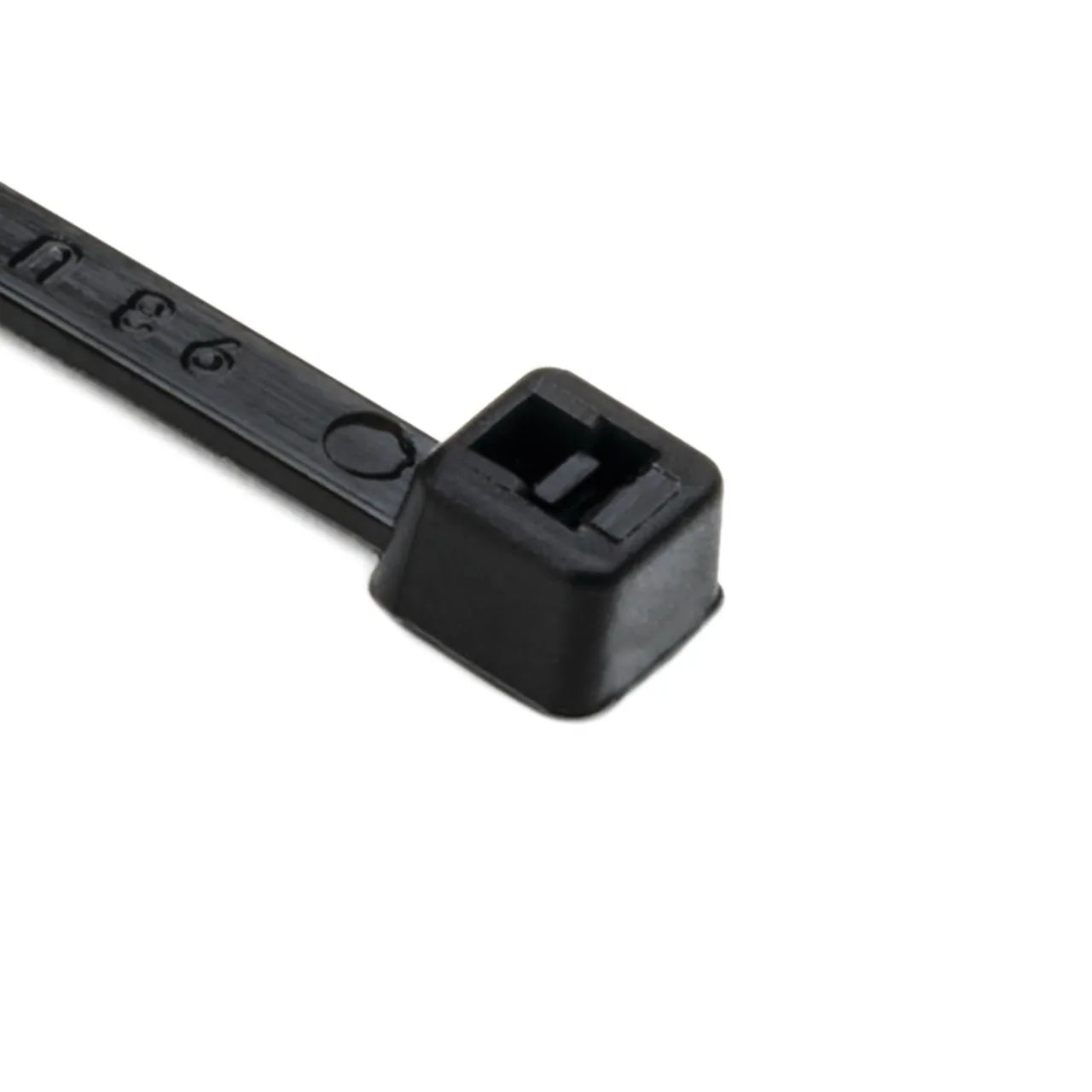

Flame Retardant Cable Tie, 8" Long, UL Rated, 18lb Tensile Strength, PA66V0, Black, 100 per Package

Features

• Feature a UL 94 V-0 rating to comply with low flame and smoke requirements. Inside serrations provide strong grip on cables and wire bundles. Easy application either manually or with a tensioning tool. Bent tail ensures a quick and simple installation.
• Product Type: Standard Cable Ties - Special Materials;Standard Cable Ties

Technical Specifications

• Material: Polyamide 6.6 V0 (PA66V0)
• Operating Temperature: -40°F to +212°F (-40°C to +100°C)
• Color: Black (BK)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor and Outdoor Use
• Bundle Diameter Max. (Imperial): 2.17"
• Bundle Diameter Max. (Metric): 55.0 mm
• Bundle Diameter Min. (Imperial): 0.12"
• Bundle Diameter Min. (Metric): 3.0 mm
• Cable Tie Closure: plastic pawl
• Cable Tie Head Length (Imperial): 0.19"
• Cable Tie Head Length (Metric): 4.8 mm
• Cable Tie Head Width (Imperial): 0.18"
• Cable Tie Head Width (Metric): 4.5 mm
• Focused Markets and Industries: Solar Energy Sector; Wind Energy Sector; Rail Transportation Sector; Electronics Industry; Aerospace Industry; Shipbuilding; Defense Industry
• Height H (Imperial): 0.15"
• Height H (Metric): 3.9 mm
• Length L (Imperial): 8.0"
• Length L (Metric): 205.0 mm
• Recommended Application Tool: 110-03500; 110-05005; 110-70083; 110-70084
• Releasable Closure: No
• Tensile Strength Min. (Imperial): 18 lbs
• Tensile Strength Min. (kgf): 8.16 kgf
• Tensile Strength Min. (Metric): 80 N
• Thickness T (Metric): 1.2 mm
• Toothing (Serration): Inside Serrated
• Variant: Inside Serrated
• Width W (Imperial): 0.10"
• Width W (Metric): 2.5 mm
• CE Certified: Yes
• CSA Certified: No
• Flammability: UL 94 V-0
• Halogen Free: Yes
• Prop65 Warning: No
• REACH Conformity: No
• ROHS Compliant: Yes
• UL-File Number + Logo: E64139 [C_RU_US_62275_Type11]
• UL Listed (US): No
• UL Listed (US and Canada): No
• UL Recognized (US): Yes
• UL Recognized (US and Canada): Yes
• UV Resistant (Yes/No): No
• UPC: 089306065760

Overview

HellermannTyton's flame retardant cable ties meet the UL 94 V-0 flammability requirements. T-Series Cable Ties feature inside serrations to provide a positive hold on wire and cable bundles. The head design guarantees high tensile strength and a low insertion force. The bent tail design allows quick and simple installations by hand. For high-volume applications, tensioning tools are available to ensure consistent and safe installation.
