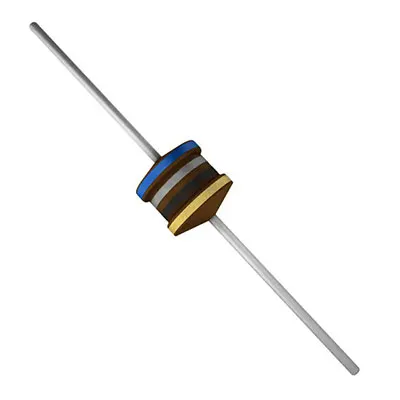

Fixed Inductor RF Choke 68uH 5% Wirewound 410mA 1.35 Ohm Unshielded Axial

Specifications

  • Series: BC
  • Type: Wirewound
  • Material - Core: Ferrite
  • Inductance: 68 µH
  • Tolerance: ±5%
  • Current Rating (Amps): 410 mA
  • Shielding: Unshielded
  • DC Resistance (DCR): 1.35 Ohm
  • Q @ Freq: 40 @ 2.52 MHz
  • Frequency - Self Resonant: 6.5 MHz
  • Operating Temperature: -55°C to 125°C
  • Inductance Frequency - Test: 2.52 MHz
  • Mounting Type: Through Hole
  • Package: Axial
  • Dimensions: 0.157" Dia x 0.362" L (4.00 mm x 9.20 mm)

Product Identification

Manufacturer Series:B78

Features

Lead Style:Axial
Technology:Bobbin Core
Core Material:Ferrite
Tolerance:5%
Minimum Quality Factor:[email protected]
Maximum Self Resonant Frequency:6.5 MHz
Inductance:68 uH
Current Rating:410 mA
Maximum DC Resistance:1350 mOhms
,
