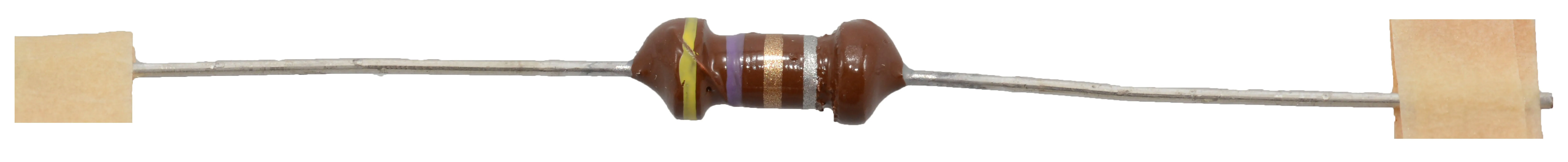

Fixed Inductor RF Choke 4.7uH 10% Wirewound 1.6A 160 mOhm Unshielded Axial

Specifications

  • Series: LBC
  • Type: Wirewound
  • Material - Core: Ferrite
  • Inductance: 4.7 µH
  • Tolerance: ±10%
  • Current Rating (Amps): 1.6 A
  • Shielding: Unshielded
  • DC Resistance (DCR): 160 mOhm
  • Q @ Freq: 40 @ 7.96 MHz
  • Frequency - Self Resonant: 100 MHz
  • Operating Temperature: -55°C to 125°C
  • Inductance Frequency - Test: 100 kHz
  • Mounting Type: Through Hole
  • Package: Axial
  • Dimensions: 0.205" Dia x 0.472" L (5.20 mm x 12.00 mm)

Product Identification

Manufacturer Series:B82

Features

Lead Style:Axial
Technology:Bobbin Core
Core Material:Ferrite
Tolerance:10%
Minimum Quality Factor:[email protected]
Inductance:4.7 uH
Maximum Self Resonant Frequency:100 MHz
Current Rating:1600 mA
Maximum DC Resistance:160 mOhms
,
