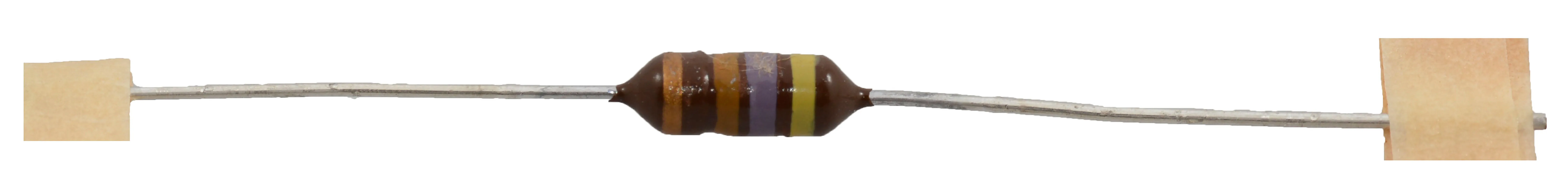

Fixed Inductor RF Choke 470uH 5% Wirewound 170mA 7.9 Ohm Unshielded Axial

Specifications

  • Series: BC
  • Type: Wirewound
  • Material - Core: Ferrite
  • Inductance: 470 µH
  • Tolerance: ±5%
  • Current Rating (Amps): 170 mA
  • Shielding: Unshielded
  • DC Resistance (DCR): 7.9 Ohm
  • Q @ Freq: 70 @ 796 KHz
  • Frequency - Self Resonant: 2.2 MHz
  • Operating Temperature: -55°C to 125°C
  • Inductance Frequency - Test: 796 KHz
  • Mounting Type: Through Hole
  • Package: Axial
  • Dimensions: 0.157" Dia x 0.362" L (4.00 mm x 9.20 mm)

Product Identification

Manufacturer Series:B78

Features

Lead Style:Axial
Technology:Bobbin Core
Core Material:Ferrite
Tolerance:5%
Maximum Self Resonant Frequency:2.2 MHz
Minimum Quality Factor:70@796KHz
Inductance:470 uH
Current Rating:170 mA
Maximum DC Resistance:7900 mOhms
,
