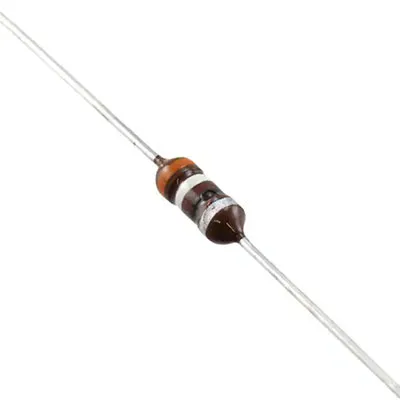

Fixed Inductor RF Choke 39uH 10% Wirewound 470mA 1.02 Ohm Unshielded Axial

Specifications

  • Series: BC
  • Type: Wirewound
  • Material - Core: Ferrite
  • Inductance: 39 µH
  • Tolerance: ±10%
  • Current Rating (Amps): 470 mA
  • Shielding: Unshielded
  • DC Resistance (DCR): 1.02 Ohm
  • Q @ Freq: 50 @ 2.52 MHz
  • Frequency - Self Resonant: 8 MHz
  • Operating Temperature: -55°C to 125°C
  • Inductance Frequency - Test: 2.52 MHz
  • Mounting Type: Through Hole
  • Package: Axial
  • Dimensions: 0.157" Dia x 0.362" L (4.00 mm x 9.20 mm)

Product Identification

Manufacturer Series:B78

Features

Lead Style:Axial
Technology:Bobbin Core
Core Material:Ferrite
Tolerance:10%
Minimum Quality Factor:[email protected]
Maximum Self Resonant Frequency:8 MHz
Inductance:39 uH
Current Rating:470 mA
Maximum DC Resistance:1020 mOhms
,
