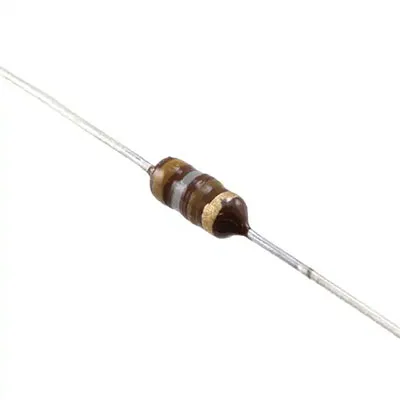

Fixed Inductor RF Choke 1mH 5% Wirewound 200mA 3.8 Ohm Unshielded Axial

Specifications

  • Series: LBC
  • Type: Wirewound
  • Material - Core: Ferrite
  • Inductance: 1 mH (1000 uH)
  • Tolerance: ±5%
  • Current Rating (Amps): 200 mA
  • Shielding: Unshielded
  • DC Resistance (DCR): 3.8 Ohm
  • Q @ Freq: 60 @ 252 KHz
  • Frequency - Self Resonant: 1.2 MHz
  • Operating Temperature: -55°C to 125°C
  • Inductance Frequency - Test: 100 kHz
  • Mounting Type: Through Hole
  • Package: Axial
  • Dimensions: 0.205" Dia x 0.472" L (5.20 mm x 12.00 mm)

Product Identification

Manufacturer Series:B82

Features

Lead Style:Axial
Technology:Bobbin Core
Core Material:Ferrite
Tolerance:5%
Maximum Self Resonant Frequency:1.2 MHz
Minimum Quality Factor:60@252KHz
Inductance:1000 uH
Current Rating:200 mA
Maximum DC Resistance:3800 mOhms
,
