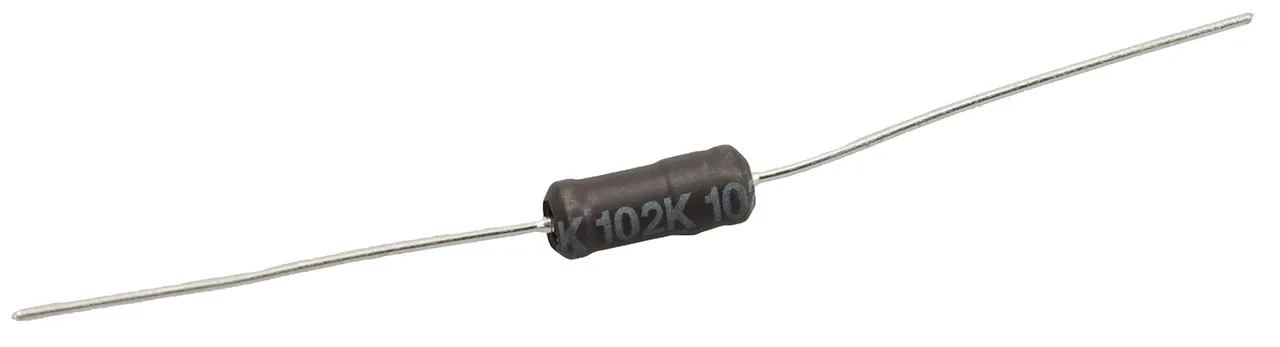

Fixed Inductor RF Choke 1mH 10% Wirewound 400mA 2.3 Ohm Unshielded Axial

Specifications

  • Type: Wirewound
  • Material - Core: Ferrite
  • Inductance: 1 mH (1000 uH)
  • Tolerance: ±10%
  • Current Rating (Amps): 400 mA
  • Shielding: Unshielded (no conformal coating)
  • DC Resistance (DCR): 2.3 Ohm
  • Operating Temperature: -25°C to 125°C
  • Inductance Frequency - Test: 1 kHz
  • Mounting Type: Through Hole
  • Package: Axial
  • Dimensions: 0.268" Dia x 0.650" L (6.8 mm x 16.5 mm)

Product Identification

Manufacturer Series:ValuePro

Dimensions & Appearance

Length:16.50 mm
Body Diameter:6.80 mm

Operating conditions

Maximum Operating Temperature:125°C
Minimum Operating Temperature:-25°C

Features

Lead Style:Axial
Core Material:Ferrite
Test Frequency:1KHz
Tolerance:10%
Technology:Wirewound
Protection Style:None
Minimum Quality Factor:N/A
Maximum DC Resistance:2.3 Ohm
Maximum Self Resonant Frequency:N/A
Inductance:1000 uH
Current Rating:400 mA
,
