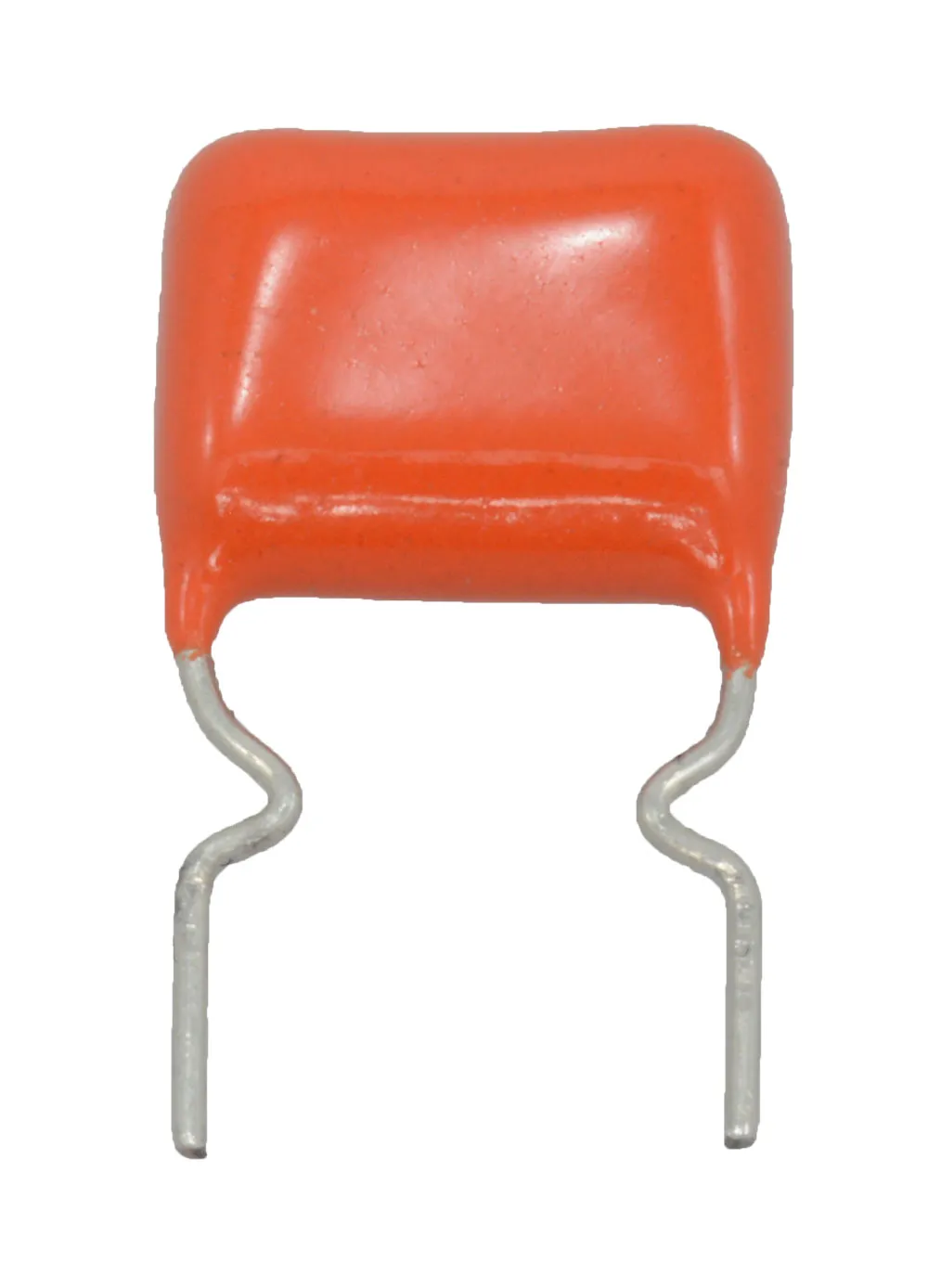

Film Capacitor Polyester Metallized Radial 22000pF (0.022uF) 250V

Specifications

  • Series: MY
  • Capacitance: 22,000pF (22nf, 0.022µF)
  • Tolerance: ±5%
  • Voltage Rating - AC: 125V
  • Voltage Rating - DC: 250V
  • Dielectric Material: Polyester, Metallized
  • Operating Temperature: -55°C to 125°C
  • Mounting Type: Through Hole
  • Package / Case: Radial
  • Size / Dimension: 0.354" L x 0.150" W x 0.272" (9.00mm x 3.80mm x 6.90mm)
  • Height - Seated (Max): 0.394" (10.00mm)
  • Termination: PC Pins
  • Lead Spacing: 0.3" (7.62mm)
  • Applications: General Purpose

Dimensions & Appearance

Depth:7 mm
Height:12 mm
Length:18 mm
Mounting:Through Hole

Operating conditions

Minimum Operating Temperature:-55°C
Maximum Operating Temperature:85°C

Features

Lead Diameter:0.6 mm
Tolerance:5%
Dielectric:PLYE
Seated Plane Height:13.5 mm
Capacitance (pF):22000
Capacitance:0.022 uF
Capacitance (uF):0.022
Lead Pitch:7.5 mm
Voltage Rating:250 VDC
,
