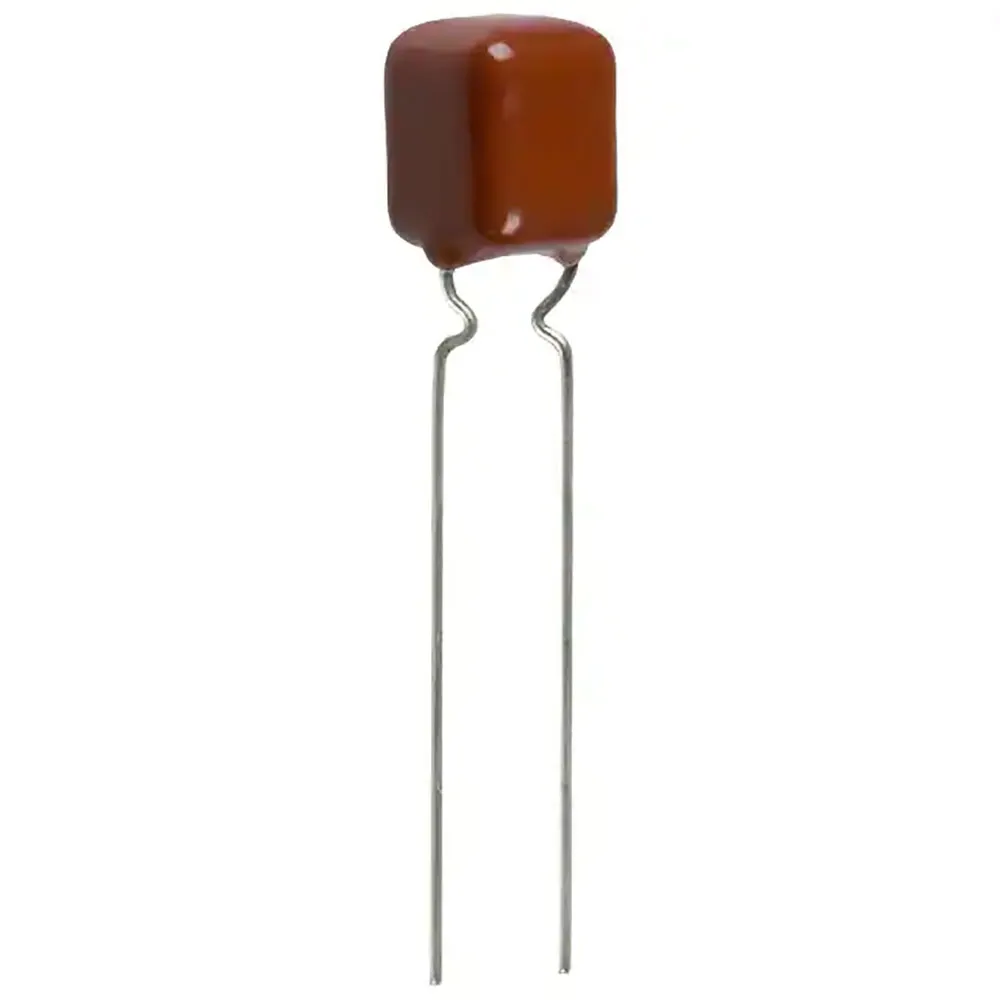

Film Capacitor Polyester Metallized 1uF 5% 50VDC Stacked Radial

Specifications

  • Series: ECQ-V
  • Capacitance: 1 µF (1000 nF)
  • Tolerance: ±5%
  • Voltage Rating - DC: 50 V
  • Dielectric Material: Polyester, Metallized - Stacked
  • Operating Temperature: -40°C to 105°C
  • Mounting Type: Through Hole, crimped leads
  • Package: Radial
  • Size: 0.287" L x 0315" W (7.3 mm x 8 mm)
  • Height - Seated (Max): 0.591" (15 mm)
  • Termination: PC Pins
  • Lead Spacing: 0.197" (5 mm)
  • Applications: General Purpose

Dimensions & Appearance

Mounting:Through Hole
Depth:8 mm
Height:11 mm
Length:7.3 mm

Features

Capacitance (pF):1000000
Capacitance (uF):1
Tolerance:5%
Seated Plane Height:15 mm
Capacitance:1 uF
Lead Pitch:5 mm
Voltage Rating:50 VDC
,
