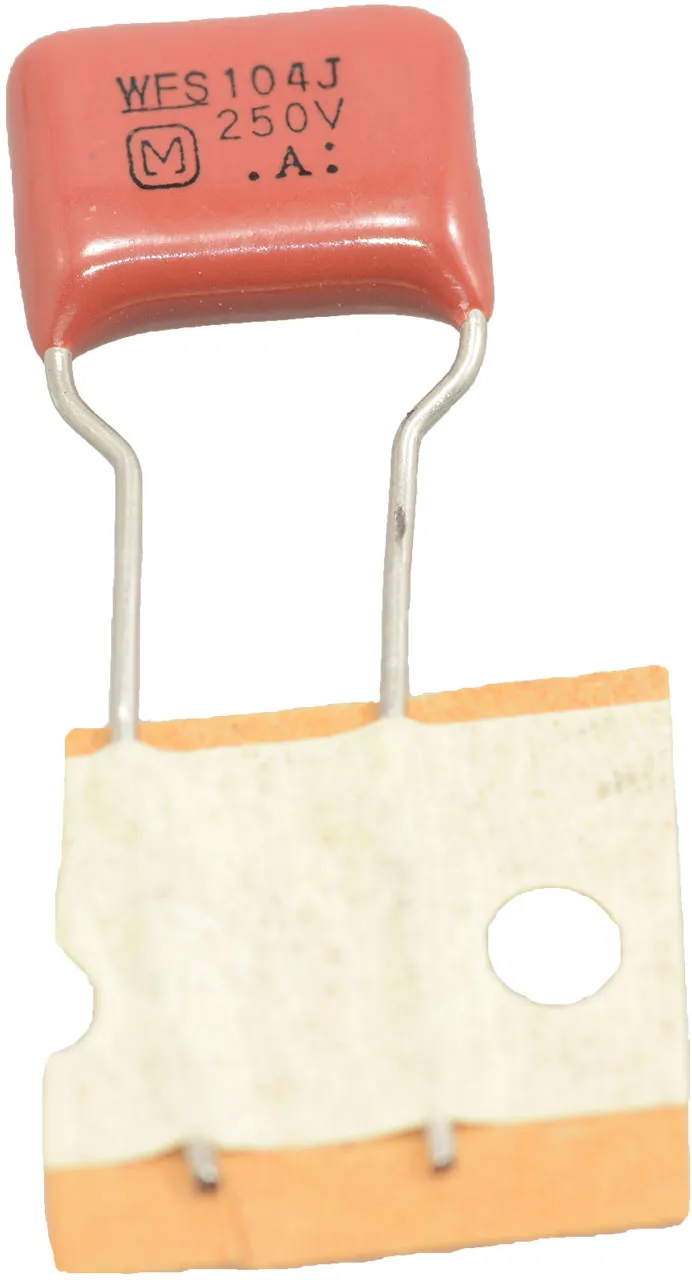

Film Capacitor 250VDC 0.1uF 15%
Features
- Dielectric: Polyester
- Capacitance: 0.1 uF
- Voltage Rating DC: 250 VDC
- Tolerance: 0.05
- Number of Pins: 2 Pin
- Lead Spacing: 7.5 mm
- Lead Style: Straight
- Minimum Operating Temperature: - 40 C
- Maximum Operating Temperature: + 105 C
- Length: 10.3 mm
- Width: 5.8 mm
- Height: 8.4 mm
- Packaging: Bulk
- Brand: Panasonic
- Capacitance - nF: 100 nF
- Capacitance - pF: 100000 pF
- Lead Diameter: 0.6 mm
- Product Type: Film Capacitors
Overview
Dimensions & Appearance
Mounting:Through Hole
Depth:5.8 mm (Max)
Length:10.3 mm (Max)
Height:8.4 mm
Features
Capacitance (uF):0.1
Capacitance (pF):100000
Tolerance:5%
Capacitance:0.1 uF
Voltage Rating:250 VDC
