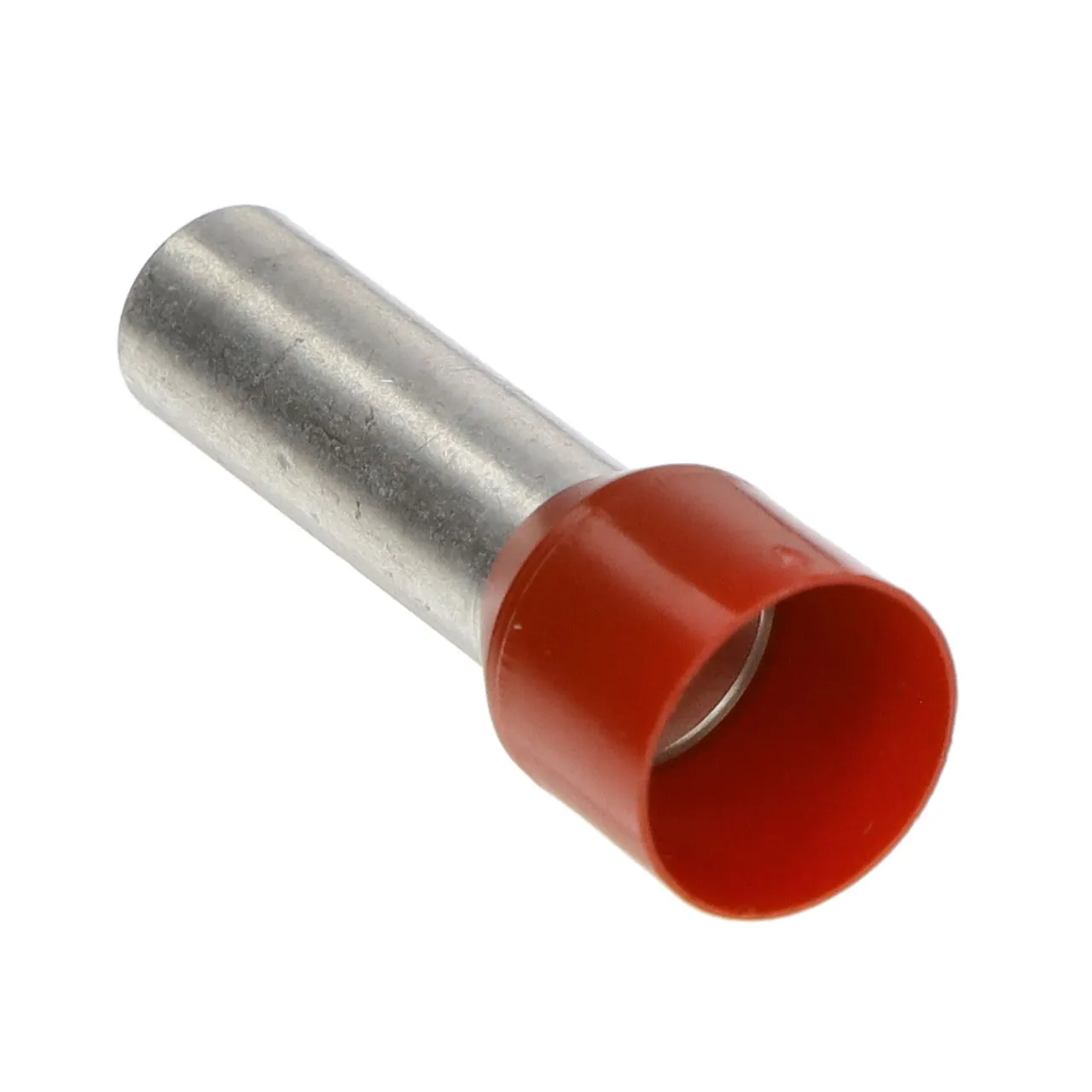

Ferrule Insulated Crimp H35.00/25-D DIN Standard Red 2 AWG Ferrule Terminal Red Polypropylene Sleeve UL (PK 50)

Features

• Product Type: DIN Standard Ferrules
• Contact Length: 25 mm
• Length: 39 mm
• Outer Diameter: 13.5 mm
• Inner Diameter: 8.7 mm
• Termination: Crimp
• Wire Gauge (AWG): 2 AWG (35 mm²)
• Insulation Material: Polypropylene
• Contact Material: Tin-Plated Copper
• Color: Red
• Additional Feature: 50 Pack
• Harmonized Code: 8536.90.4000
• ECCN: EAR99

Overview

Ferrules ensure reliable electrical connections when terminating stranded flexible wire in terminal blocks, circuit breakers or other control devices. Insulated ferrules prevent conductor breakage due to bending, wire stress or vibration while facilitating wire insertion into the terminal clamp.

To ensure efficient ferrule crimping, always select the smallest ferrule diameter that fits the wire and use only professional crimping tools.
