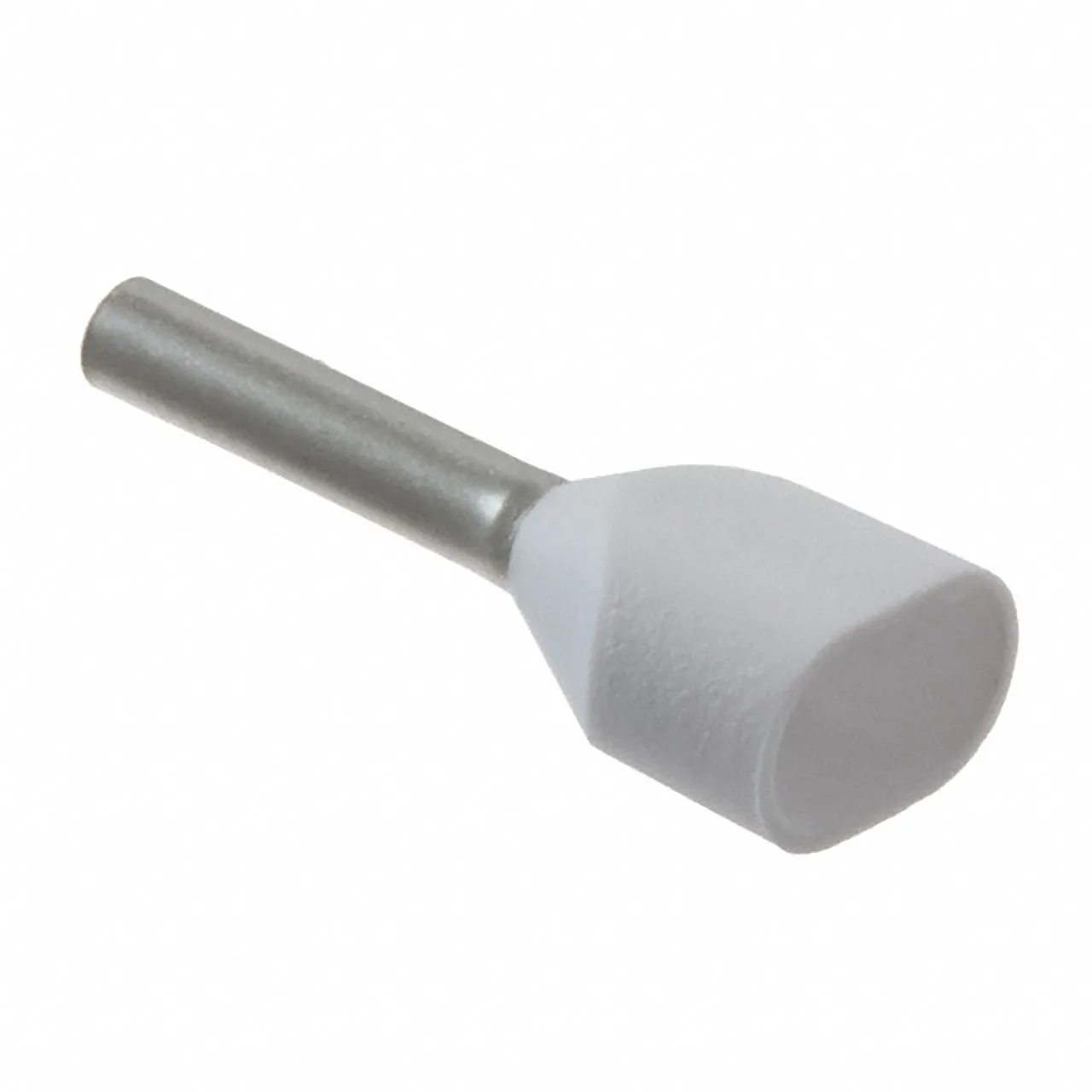

Ferrule Crimp H2x0.50/8 Dual Wire Standard Insulation White Ferrule Terminal White Polypropylene Sleeve UL (PK 100)

Features

• Product Type: Two Wire Ferrule Terminal
• Contact Length: 8.20 mm
• Length: 14.60 mm
• Outer Diameter: 3 x 5 mm
• Inner Diameter: 1.7 mm
• Termination: Crimp
• Wire Gauge (AWG): Two x 20 AWG (0.50 mm²)
• Insulation Material: Polypropylene
• Contact Material: Tin-plated Copper
• Color: White
• Additional Feature: 100 Pack
• Harmonized Code: 8536.90.4000
• ECCN: EAR99

Overview

Dual Wire Ferrules have larger diameters and special shaped sleeves that accept two conductors of the same or different size. They provide an efficient connection of multiple wires in the same terminal clamp or simplify jumper-wiring between terminal clamps. They are color coded with the same convention as the insulated DIN standard ferrules.

To ensure efficient ferrule crimping always choose the smallest ferrule diameter that fits the wire and use only professional crimping tools.
