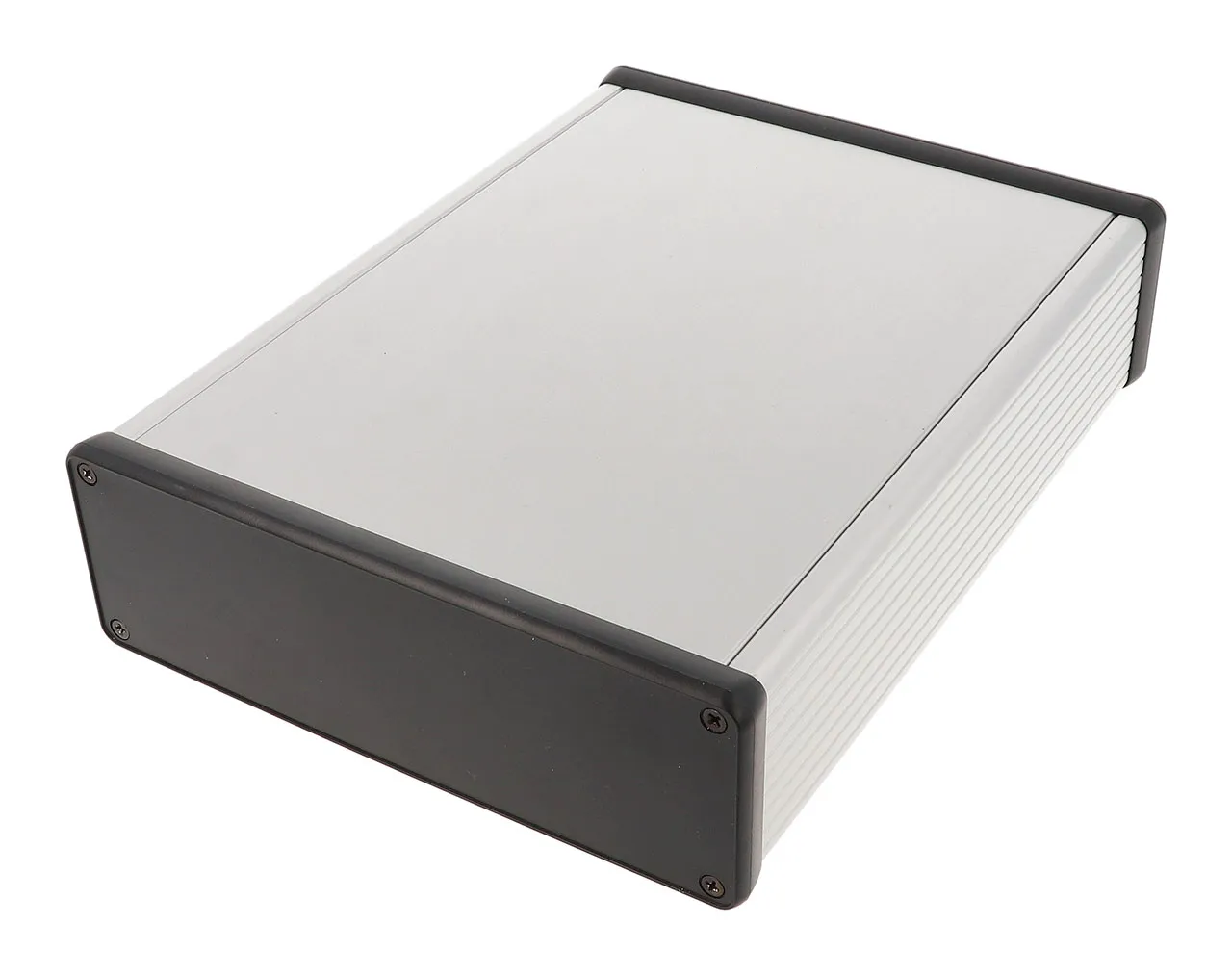

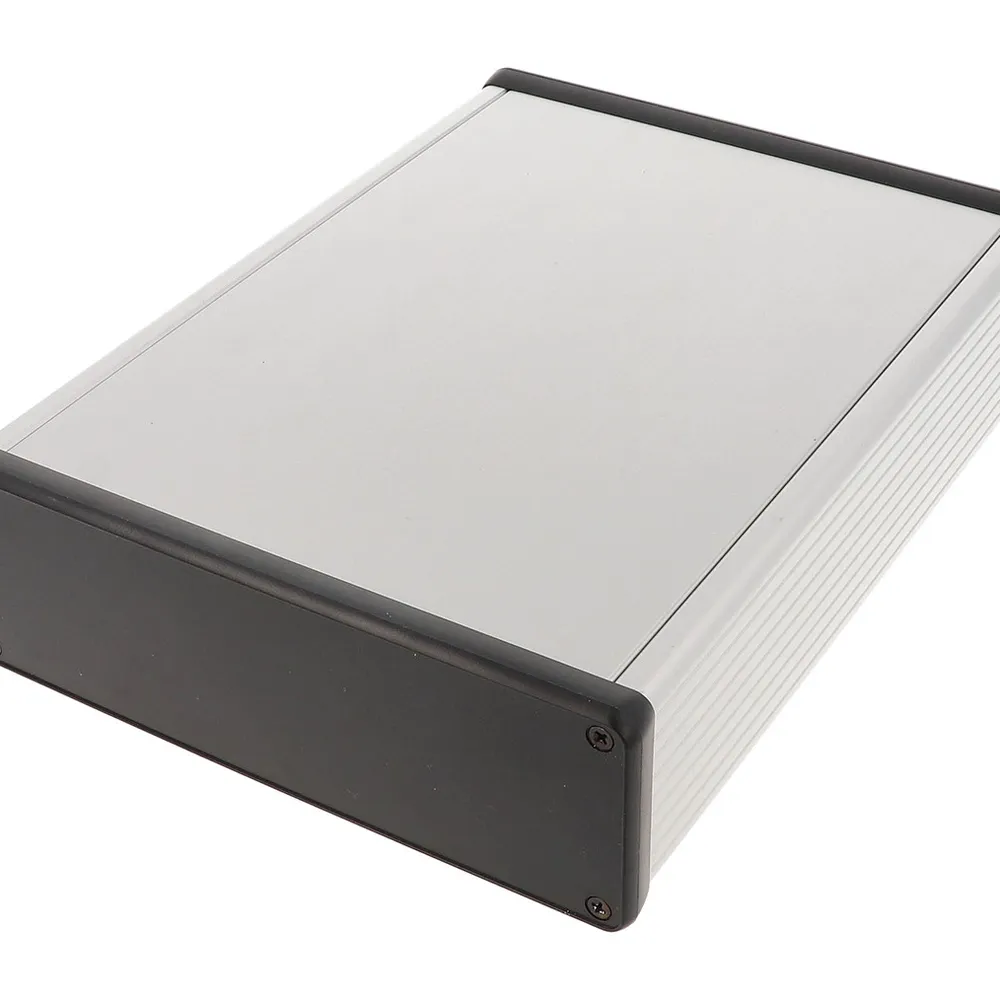

Extruded Aluminum Enclosure with Plastic End Panels 220x165x52mm

Features

  • Material: Aluminum (Extruded)
  • Color: Clear (Anodize)
  • Flame Rating:
  • IP Rating: IP54
  • Product Category: Enclosures with Sliding Plate
  • Type: PC Board Enclosure
  • NEMA Rating:
  • Max. P.C. Board Length (mm): 219
  • Max. P.C. Board Width (mm): 159.5

Overview

Extruded Aluminum Enclosure with Plastic End Panels 220x165x52mm

Product Identification

Manufacturer Series:1455
Additional Feature:Max PCB Size: 219 x 159.5 mm
Product Type:Enclosures with Sliding Plate

Compliance

RoHS Status:ROHS Compliant
Compliance:Compliance Docs

Dimensions & Appearance

Color:Clear (Anodize)
Height:2.05 in., 52 mm
Width:6.5 in., 165 mm
Length:8.66 in., 220 mm

Features

IP Rating:IP54
Material:Aluminum (Extruded)
,
