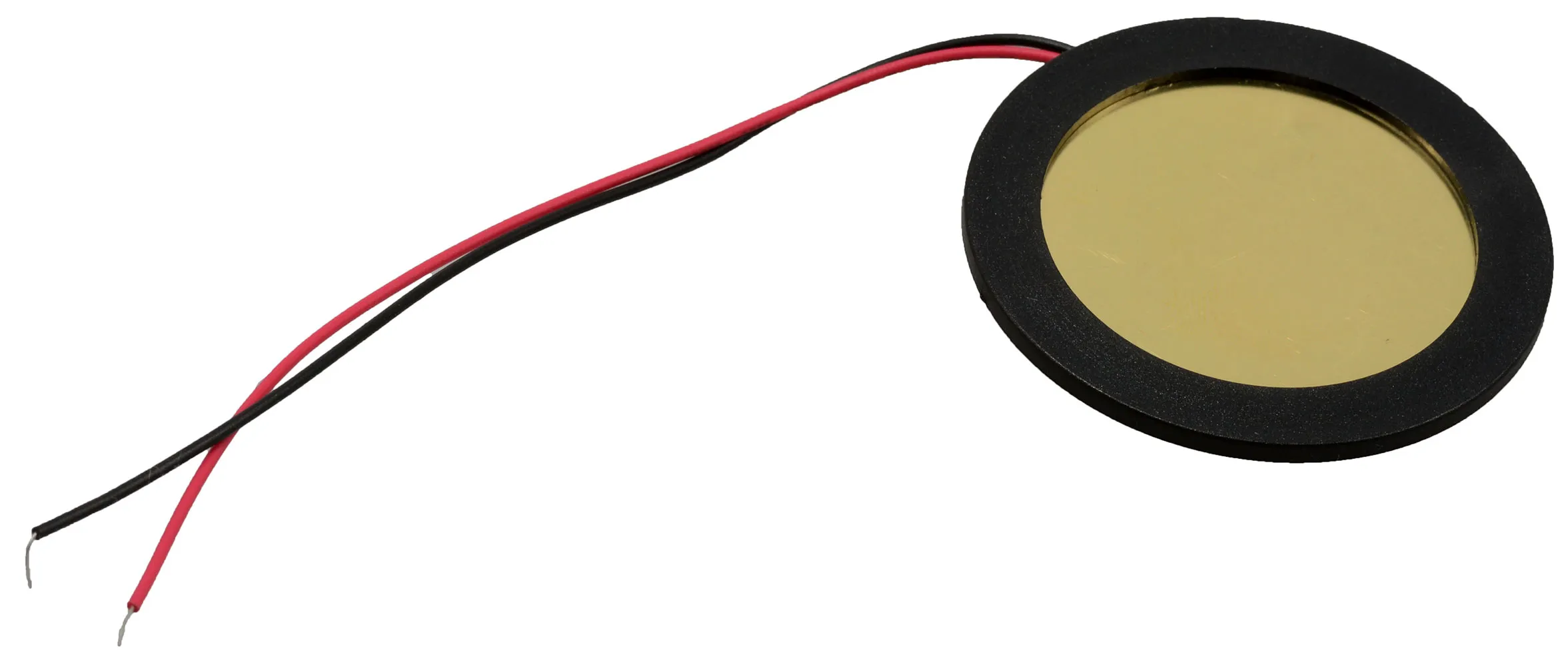

External Drive Piezo Transducer 30VAC 75dB 50mm Diameter

Specifications

  • Max. Input Voltage: 30 Vp-p
  • Sound Pressure Level: 75 dBA @ 12Vp-p square wave, 10cm, 1000Hz
  • Capacitance: 70,000pF
  • Size: 50mm diameter x 2mm thick
  • Connection: 4" lead wires
  • Single tone

Dimensions & Appearance

Height:0.08 in.
Diameter:1.97 in.
Size (H" x Dia."):0.08 x 1.97
Mounting:Panel Mount

Operating conditions

Minimum Operating Temperature:-20°C
Maximum Operating Temperature:60°C

Input

Input Voltage:12 V

Output

Output:75 dBA

Features

Tone Mode:Transducer/Speaker
Technology:Piezo
Voltage Range (Vp-p):12-30
Frequency:1000 Hz
Termination Style:Wire Lead
Frequency Range:N/A
Current Rating:N/A
,
