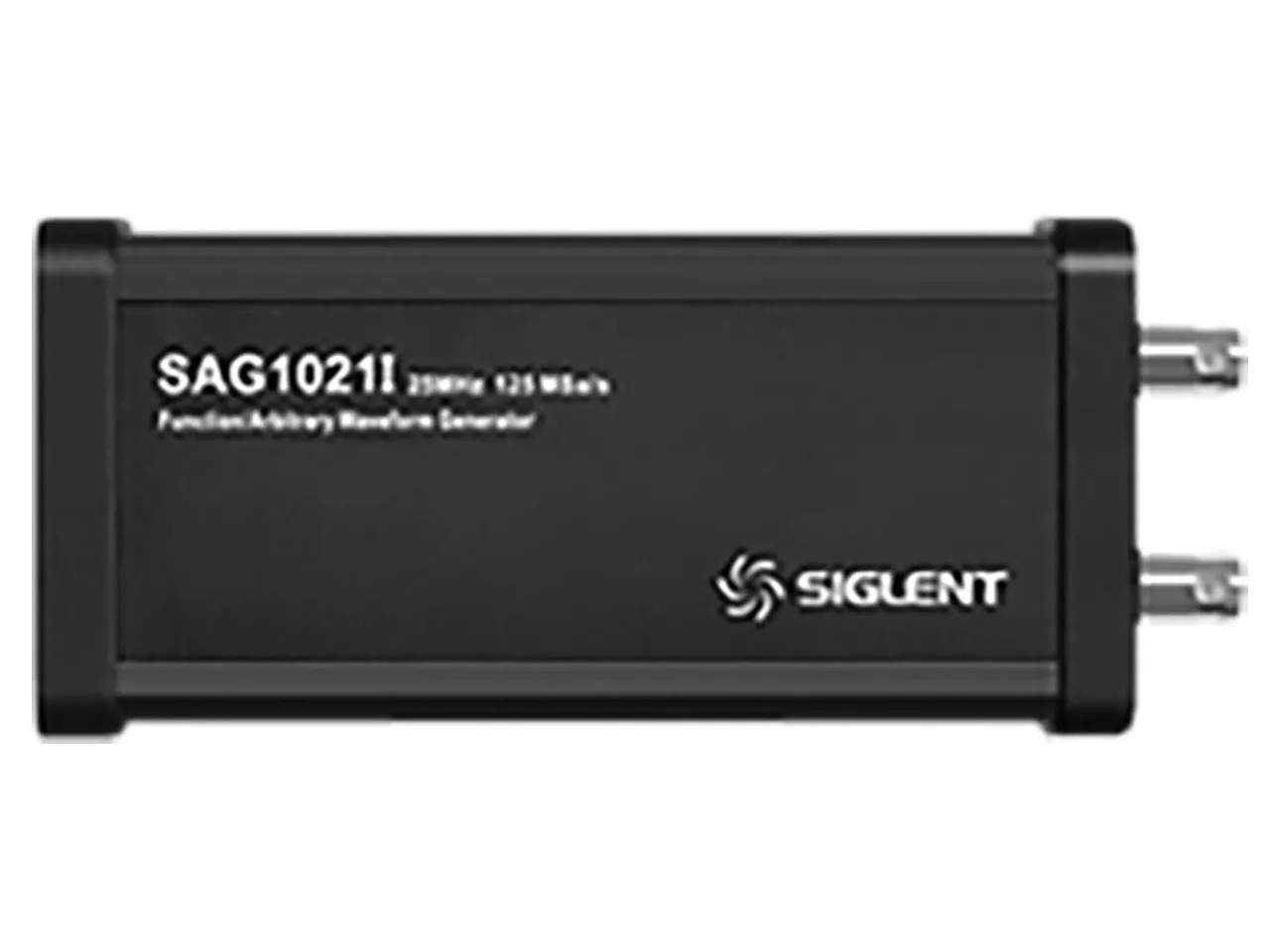

External arbitrary waveform generator 25 MHz

Accessory for use with the four-channel SDS1000X-E, SDS2000X-E, SDS5000X, and SDS6000A oscilloscopes. Output Sine, Square, Ramp, Pulse, Noise, DC and 45 built-in waveforms. The arbitrary waveforms can be accessed and edited by the EasyWave PC software.

Requires the correct Function Generator Activation License for the specific oscilloscope (part number ends with -FG)

Key Details

• Outputs: 1
• Max. Output Frequency: 25 MHz
• Sampling Rate: 125 MSa/s
• Frequency Resolution: 1 µHz
• Frequency Accuracy: ±50 ppm
• Vertical Resolution: 14-bit
• Amplitude Range: 1.5 ? +1.5 V (50Ω load), -3 ? +3 V (High-Z load)
• Waveform Types: Sine, Square, Ramp, Pulse, Noise, DC and 45 built-in waveforms
• Output impedance: 50 Ω ±2%
• Protection: Over-Voltage Protection, Current-Limiting Protection
• Insulation Voltage: ±42 Vpk (for SAG2021I only)
• Weight: 1 lbs
• Dimensions: 8 × 8 × 2 in
