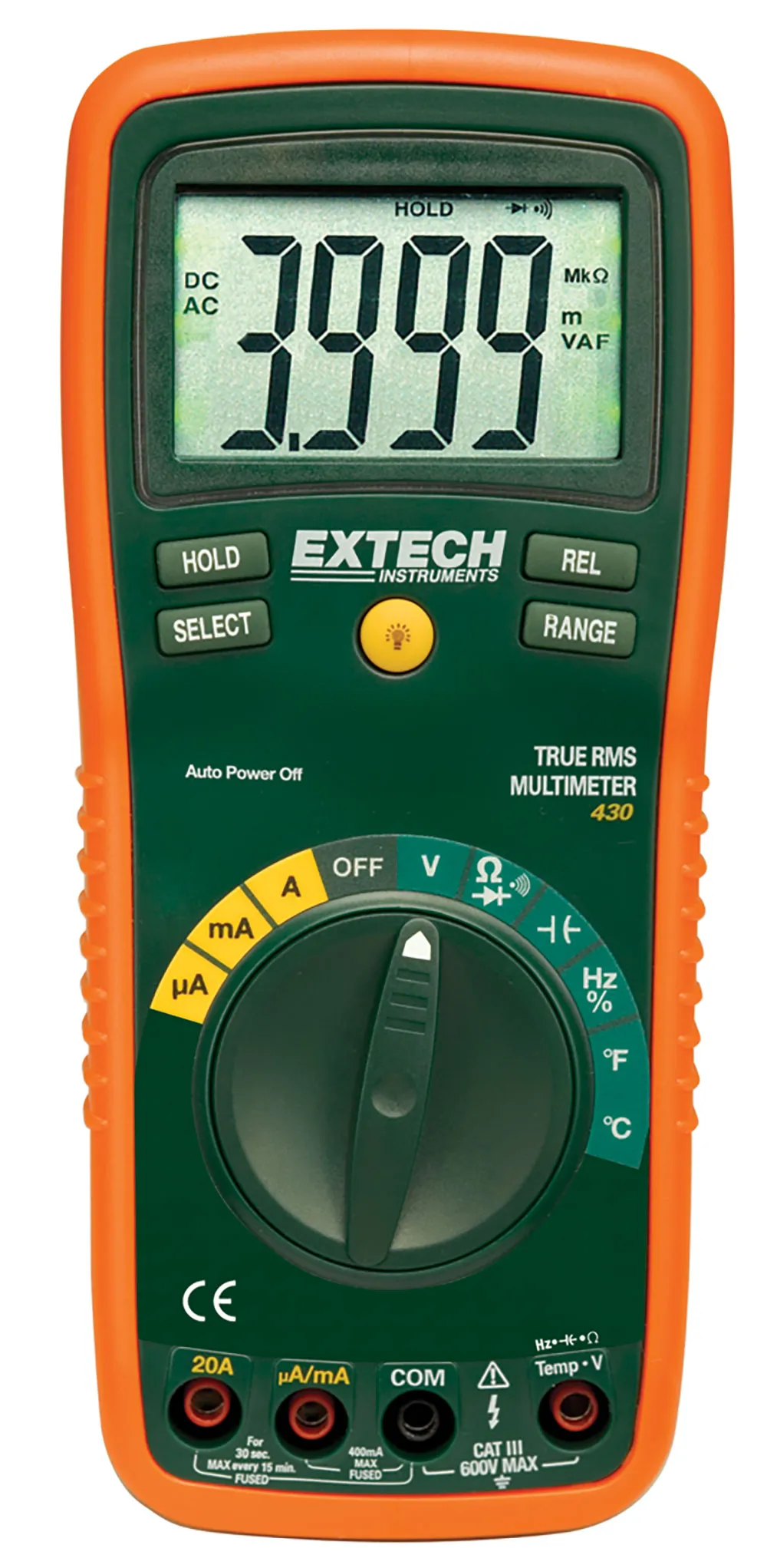

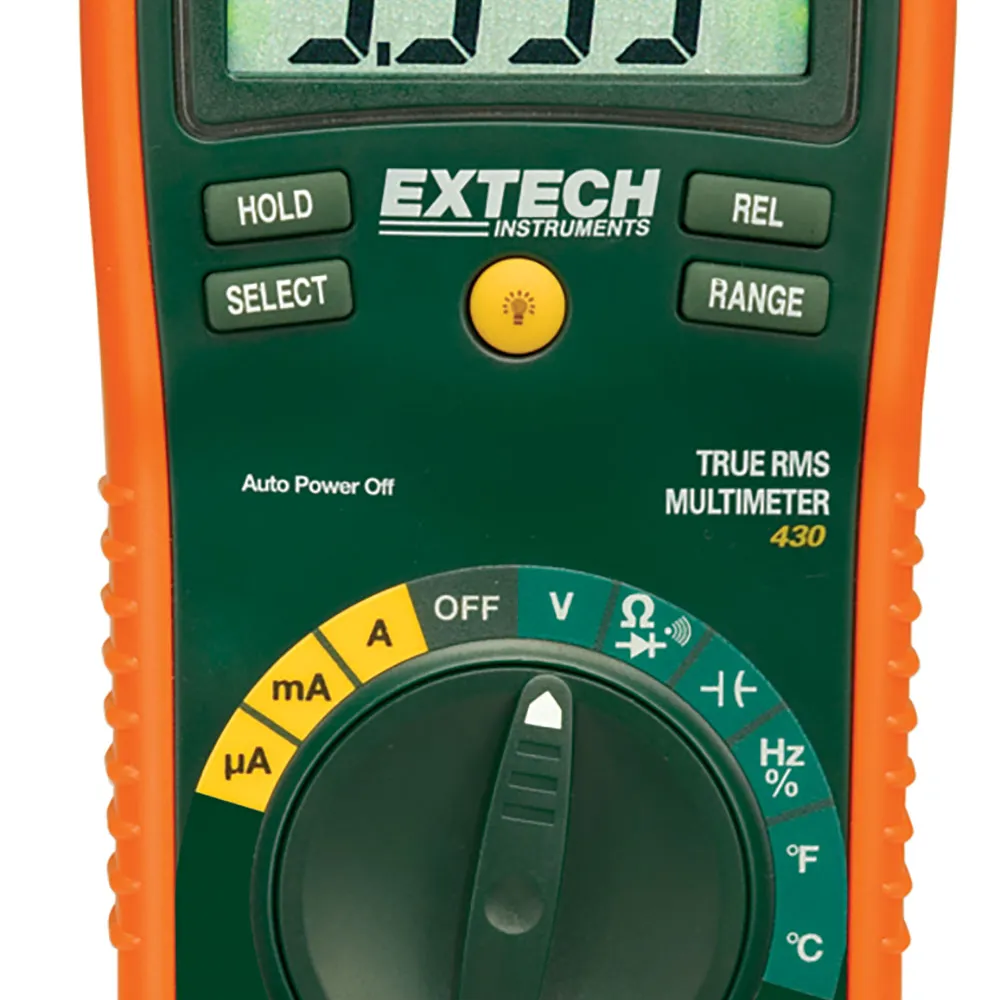

Extech EX430 11 Function Digital Multimeter

Basic Test Functions:

  • Manufacturer part No: Extech EX430
  • Type: Digital Multimeter
  • No. of Functions: 11
  • Display Count: 4000
  • Resolution (max DC): 100
  • DC Voltage Ranges (V): 0.1 to 1000
  • AC Voltages Ranges (V): 0.1 to 750
  • DC Current Ranges (A): 0.1 to 10
  • AC Current Ranges (A): 0.1 to 20
  • Resistance Ranges (Ω): 0.1 to 40
  • Capacitance Ranges (F): 0.1 to 100
  • Frequency Ranges (Hz): 0.001 to 10
  • Temperature Range (°C): -20 to 750
  • Temperature Range (°F): -4 to 1382

Test Functions

  • Diode Test: Yes
  • Continuity Test: Yes

    Special Functions
  • Autorange: Yes
  • True RMS: Yes
  • Complete with stand, test leads, protective holster, batteries, bead wire, temperature probe (-22 to 572°F/-30 to 300°C)
  • Large 1" digits make it easy to read
Size (H"xW"xD"): 7.4 x 3.2 x 2.0

Click below for video demonstration
Video link image

Compliance

RoHS Status:Undefined

Dimensions & Appearance

Style:Handheld

Features

Display Digits:4
Measurement Temperature Range (Deg F):-4 to 1382
Autorange:Yes
True RMS:Yes
Frequency Range:0.001 Hz to 10 MHz
Display Count:4000
Capacitance Range:0.1 nF to 100 uF
DC Current Range (A):0.1u to 10
AC Current Range (A):0.1u to 20
Measurement Temperature Range (Deg C):-20 to 750
Voltage Range (VDC):0.1m to 1000
Voltage Range (VAC):0.1m to 750
Resistance Range (Ohms):0.1 to 40M
Function:Voltage, Current, Resistance, Capacitance, Temperature, Frequency,Continuity, Diode
,
