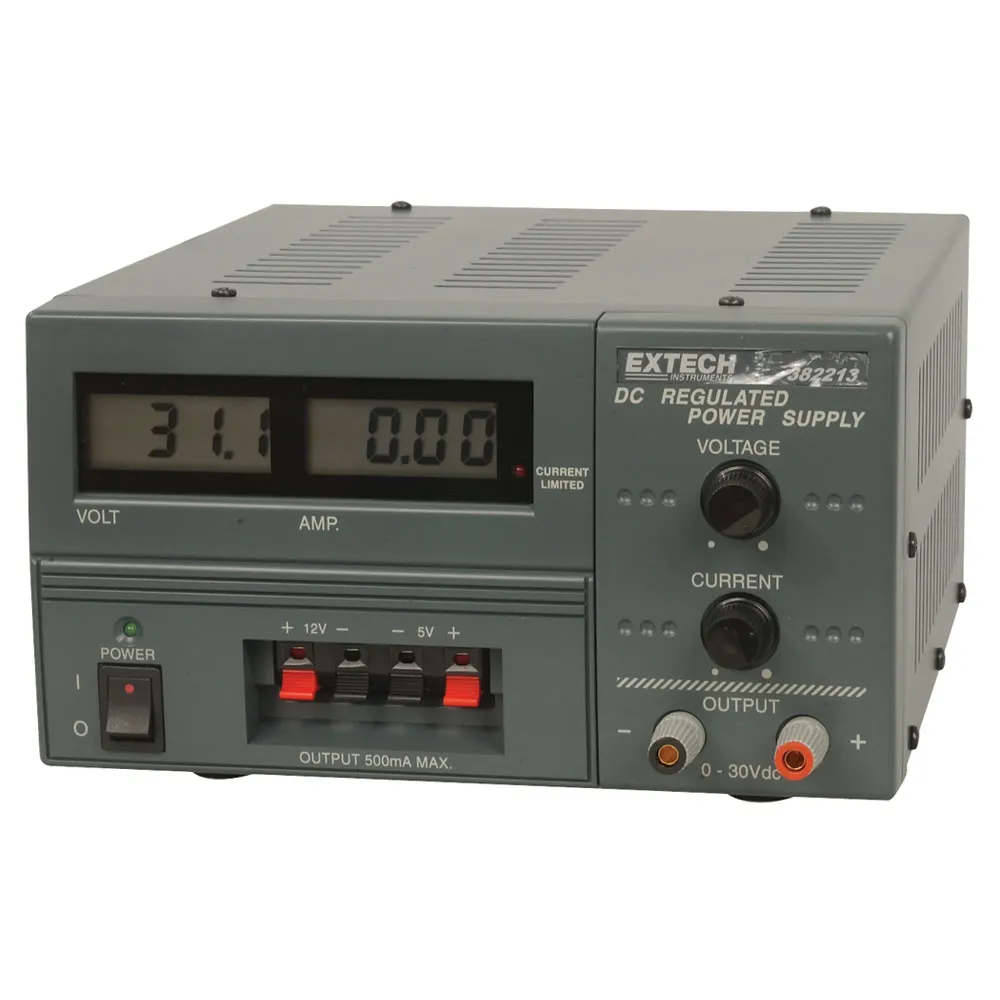

Digital Display Triple Output DC Power Supply

With fixed 5V and 12V outputs

Features:
  • Benchtop Power Supply
  • Digital LCD display
  • Fixed 5V and 12V outputs (500mA max.)
  • 0-30V Adjustable Voltage Output
  • 0-3A Adjustable Current Output
  • Independent 5V and 12V Outputs provide Power for TTL or CMOS Projects
  • Easy Snap Terminals for 5V and 12V Outputs
  • Overload and Short Circuit Protection
  • Constant Voltage or Current
  • Current Limiting Front Panel LED Indicator
  • Binding Post Terminals for Variable Supply
  • Complete with power cord

    • Product Identification

    Product Type:Benchtop Power Supply

    Compliance

    RoHS Status:Undefined

    Dimensions & Appearance

    Weight:11 lbs.
    Depth:6 in.
    Height:5.6 in.
    Width:9.5 in.

    Input

    Input Frequency:50Hz, 60Hz
    Input Voltage:115 VAC, 220 VAC

    Output

    Number of Outputs:3
    Output Current:0 A to 3 A
    Output Voltage:0 VDC to 30 VDC
    Output Connector Type:Banana Jacks

    Features

    Type of Displays:Digital LCD
    Power Rating:150 W
    ,
