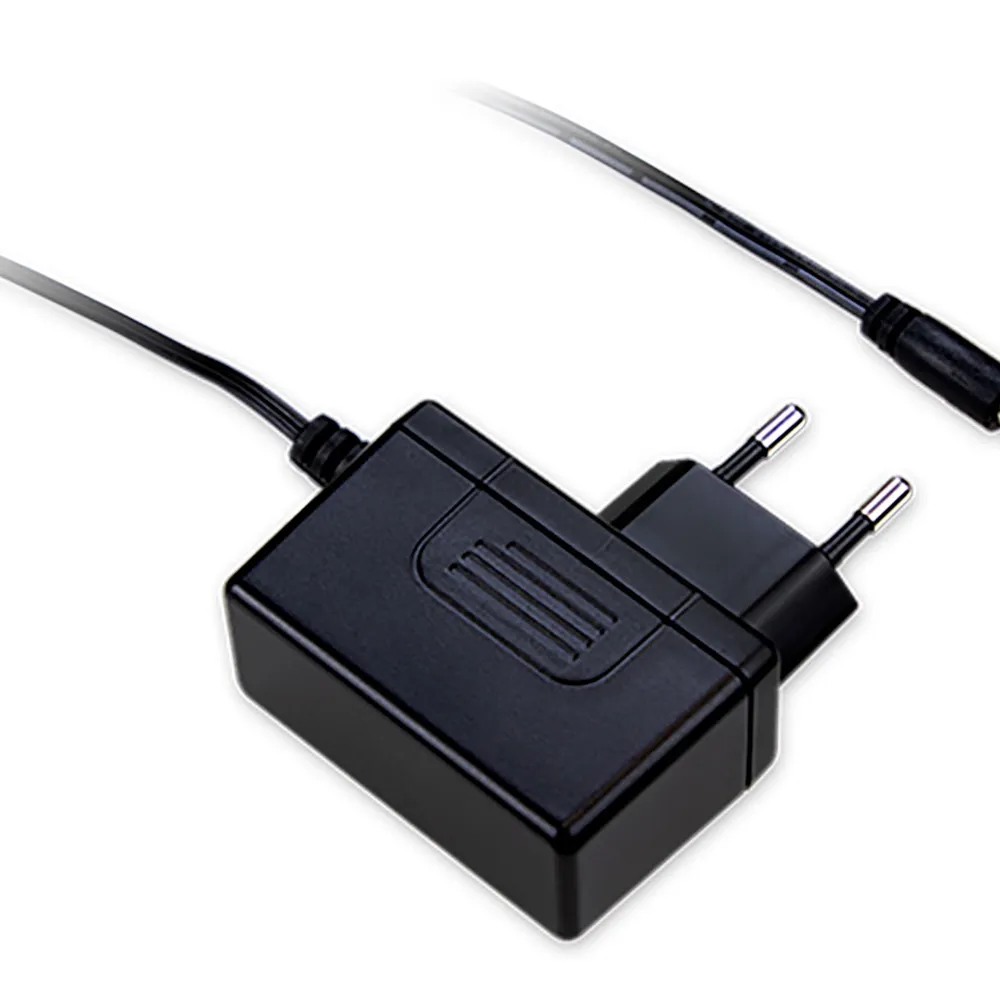

Euro Wall-Mounted LED Power Supply with PFC 12V 2.5A 2.1mm DC Plug 180-264VAC Input

Features

• AC 180-264VAC input
• Class II power unit, no FG
• Built-in active PFC function with EN61347-1 regulation
• Constant voltage design
• Protections: short circuit, over load, over voltage
• Cooling by free air convection
• No load power consumption <0.5W
• Various DC plug quick adapter accessories are available
• 3 year warranty

Overview

GSV30 series is a 30W external wall-mounted LED power supply with PFC function. The design of this product is based on the "plug and play" concept for adapters. The AC input side exploits the 2-pole (Class II, no FG) standard plug, and the output side is equipped with the highly accepted DC connector (2.1x5.5x11mm) in the market. This product accepts 180-264VAC input and offers constant voltage output with 12V/24V or 48V. The design complies with the lighting requirements if EMI BS EN/EN55015 and the harmonic current demand according to BS EN/EN61000-3-2 Class C. In addition, the no load power consumption is less than 0.5W, making GSV30 conform to the ErP regulation required by the European Union for lighting systems as well.
