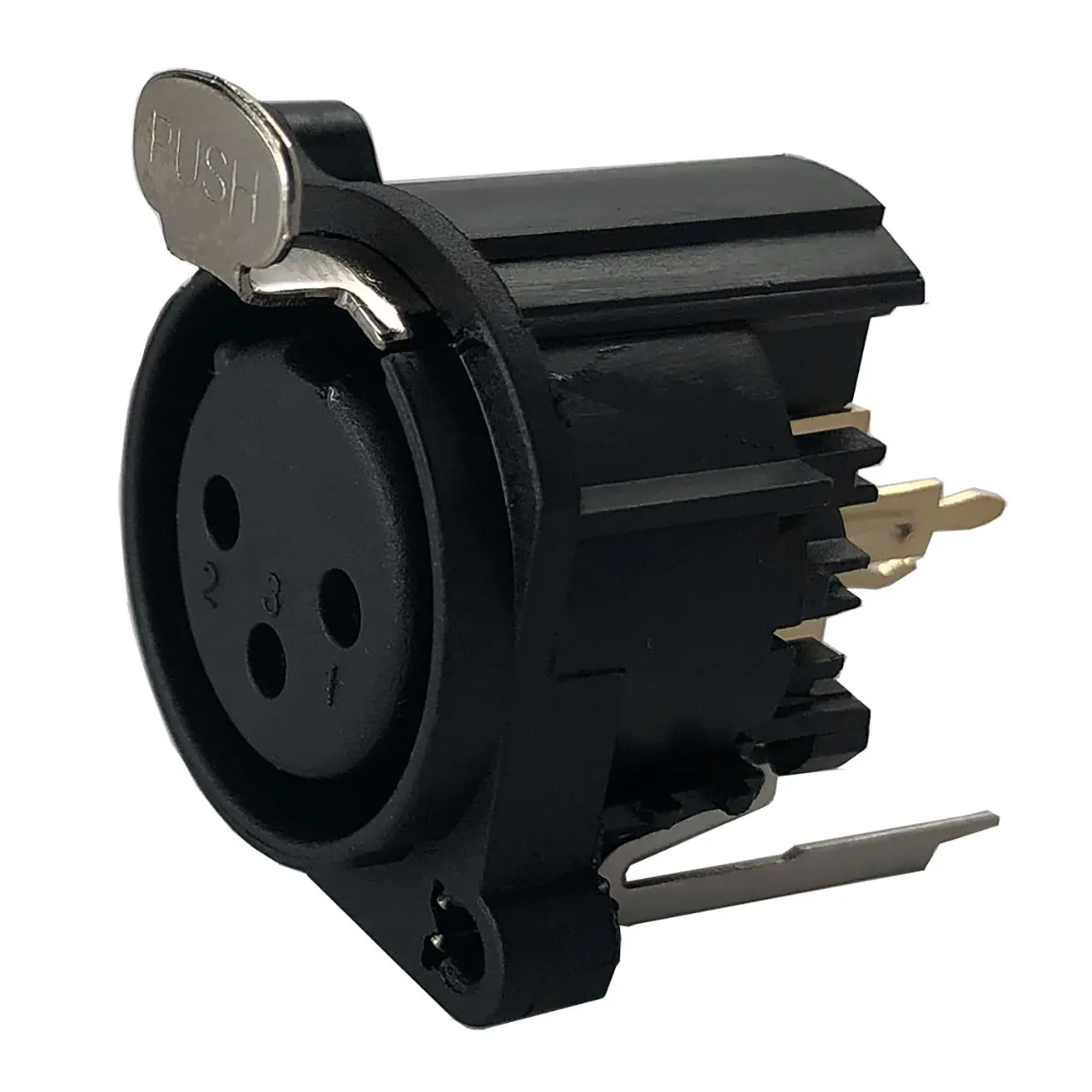

E-Series 3-Pin XLR Female Vertical PCB Mount with Separate Ground-Pin

Io Audio Technologies

Jameco Part #:

Manufacturer #:

Primary datasheet

Non Cancelable

Non Returnable

Product Price:

$1.950

In Stock: 0

Quantity	Unit Price	You Save	Discount
25+	$1.950	-	-
50+	$1.650	0.30	15.38%
100+	$1.350	0.60	30.77%

Features

Capacitance Between Contacts: ≦ 2pF
Capacitance Between Contacts and Shield: ≦ 2.5pF
Contact Resistance: < 6mΩ
Insulation Resistance: ≥ 5000MΩ
Dialectric Strength: 1500V @ 60s
Current Rating: 6A/50V AC
Number of Pins/Poles: 3
Gender: Female
Contact Material: Brass
Contact Platng: Gold
Shell Material: Polyamid
Shell Color: Black
Wiring: PCB Mount Vertical
Flammability Rating: UL94V-0

Overview

Locking vertical PCB Mount 3 pin chassis connector with plastic body for audio and lighting control.

E Series XLR chassis connectors offer the most cost-effective solution for design-in applications where the termination method is to a printed circuit board. The small footprint makes this our XLR receptacle with the highest packing density available.?

These connectors feature a compact all plastic housing with precision machined, one piece, gold plated contacts to help prolong the useful life of the connectors. They also come with a separate nickel plated ground pin that grounds the connector to the panel. The compact form factor of the these connectors makes them perfect for situations where space saving is a priority or space for a connector is limited.

Available in 3, 4, or 5 pin, Male or Female variations with options for vertical or horizontal PCB mounting.
