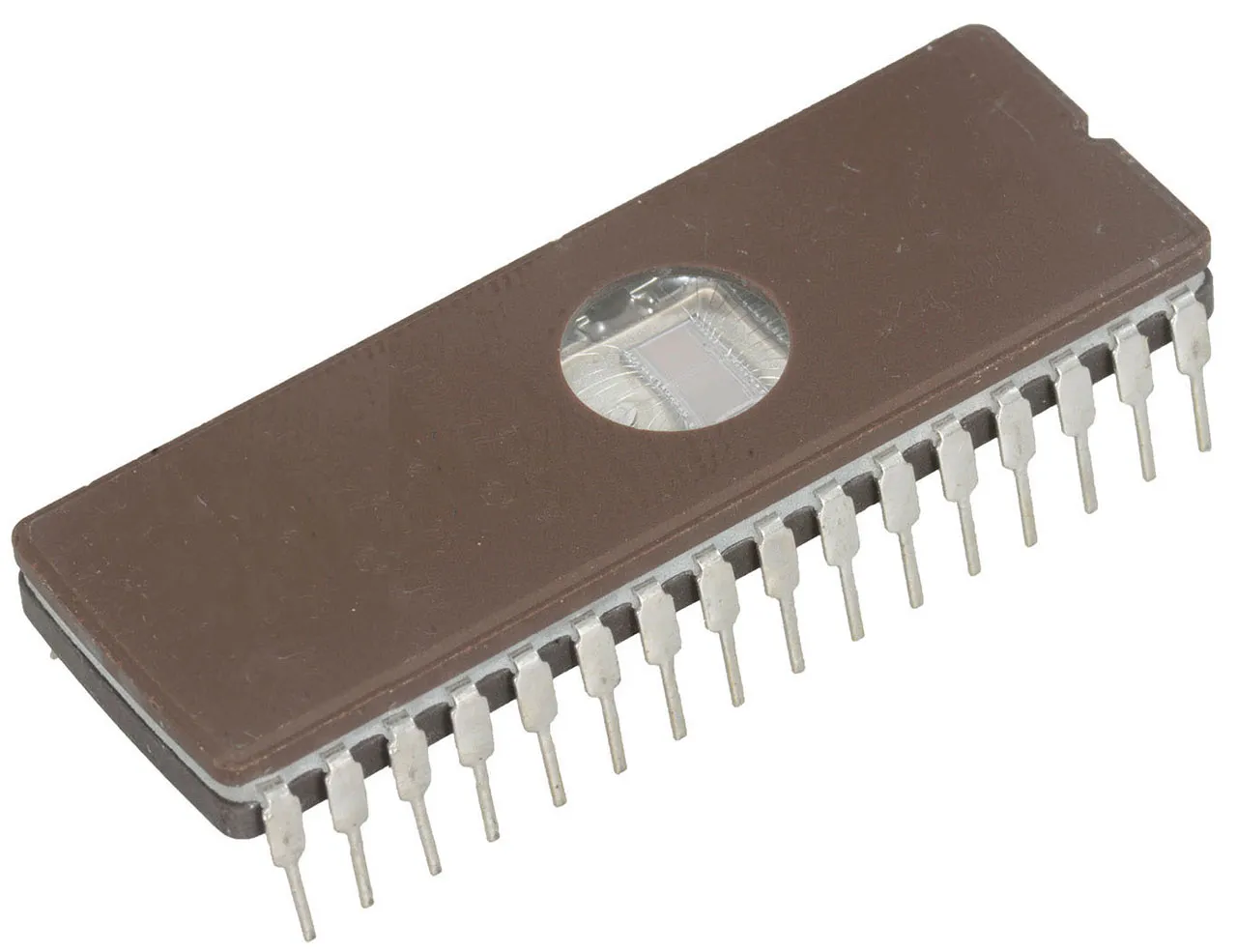

IC EPROM Memory 4Mb (512K x 8) Parallel 150ns CDIP-32 UV Window

Specifications

  • Memory Type: Non-Volatile
  • Memory Format: EPROM
  • Technology: EPROM - UV
  • Memory Size: 4Mb (512K x 8)
  • Memory Interface: Parallel
  • Access Time: 150 ns
  • Voltage - Supply: 4.75 V to 5.25 V
  • Operating Temperature: 0°C to 70°C (TA)
  • Mounting Type: Through Hole
  • Package: 32-CDIP (0.600", 15.24mm) with Window

Dimensions & Appearance

Mounting:Through Hole

Operating conditions

Minimum Operating Temperature:0°C
Maximum Operating Temperature:70°C

Packaging

Package:CDIP-32

Input

Input Voltage:5V

Output

Output Enable Access Time:70ns

Features

Reprogramming Technique:UV
Screening Level:Commercial
Programming Voltage:12.5V
Memory Density:4Mbit
Interface Type:Parallel
Maximum Random Access Time:150ns
Maximum Operating Current:60ma
Organization:512Kx8
,
