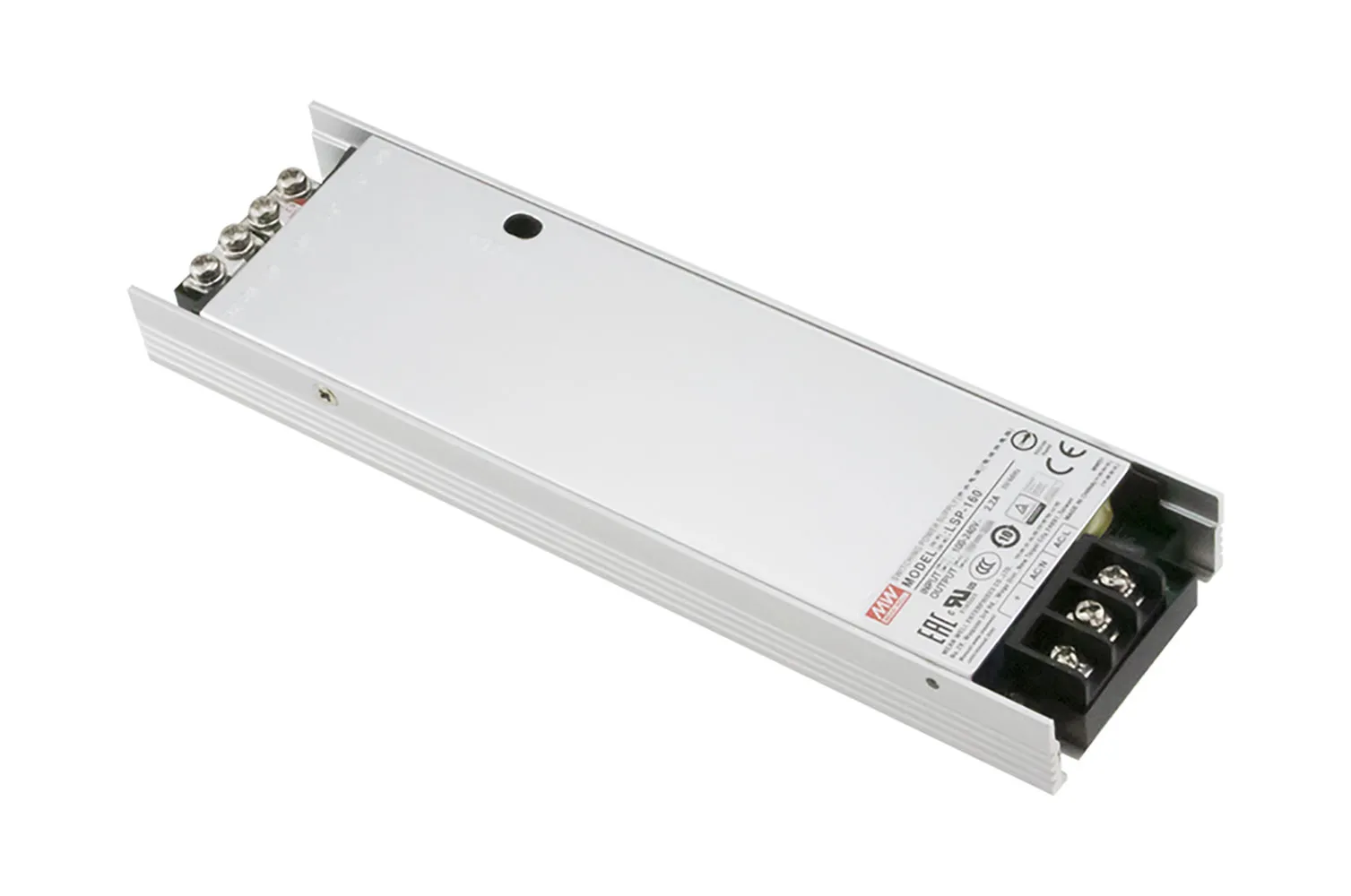

Enclosed Switching Power Supply 105.6W 3.3V 32A Low Profile with PFC and Current Sharing

Output: 3.3 Volts DC @ 32 Amps

Find out more about MEAN WELL Mini/Micro LED display power solutions and the low-profile, miniaturized conduction cooling power supply family.

Features

  • Current sharing for redundant function
  • Maximum operating wattage to 132W at 230VAC input
  • Slim width and low profile (20 mm)
  • Fanless design for no noise environments
  • Withstand 300 VAC surge input for 5 seconds
  • DC OK active signal function
  • Semi-Potting for high moisture environments
  • Protections: Short circuit, over load, over voltage, over temperature
  • Operation altitude up to 5000 meter
  • LED indicator for power on
  • 3 year warranty

Specifications

  • DC Voltage: 3.3 VDC
  • Rated Current: 32 A (up to 40 A at 200-264VAC with aluminum plate)
  • Rated Power: 105 W (convection), (up to 132W at 200-264VAC with aluminum plate)
  • Input Voltage Range: 100 to 264 VAC @ 47 to 63 Hz; 2.2A@115VAC or 1.1A@230VAC)
  • Efficiency: 87.5%
  • Size: 7.64"L x 2.17"W x 0.787"H (194 x 55 x 20 mm)
  • Agency Approvals: UL, CUL, TUV, CB, CE, EN, EAC, CCC
  • T-Type screw terminal block connections

Applications

  • Industrial automation machinery
  • Industrial control systems
  • Mechanical and electrical equipment
  • Electronic instruments, equipment or apparatus
  • Household appliances
  • LED display applications

Product Identification

Type:Auto Switching SMPS
Manufacturer Series:LSP-160

Compliance

Agency Approvals: CB, CCC, CE, CUL, EAC, EN, TUV, UL

Dimensions & Appearance

Style:Enclosed
Color:Silver
Height:0.787 in.
Width:2.17 in.
Length:7.64 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:100 VAC to 264 VAC
Maximum Input Current:2.2 A

Output

Number of Outputs:1
Output Voltage (Channel 1):3.3 VDC
Output Voltage:3.3 VDC
Output Connector Type:Screw Terminal Block
Output Current (Channel 1):32 A
Output Current:32 A

Features

PFC Function:Yes
Minimum Isolation Voltage:3750V
Efficiency:87.5%
Power Rating:105.6 W
,
