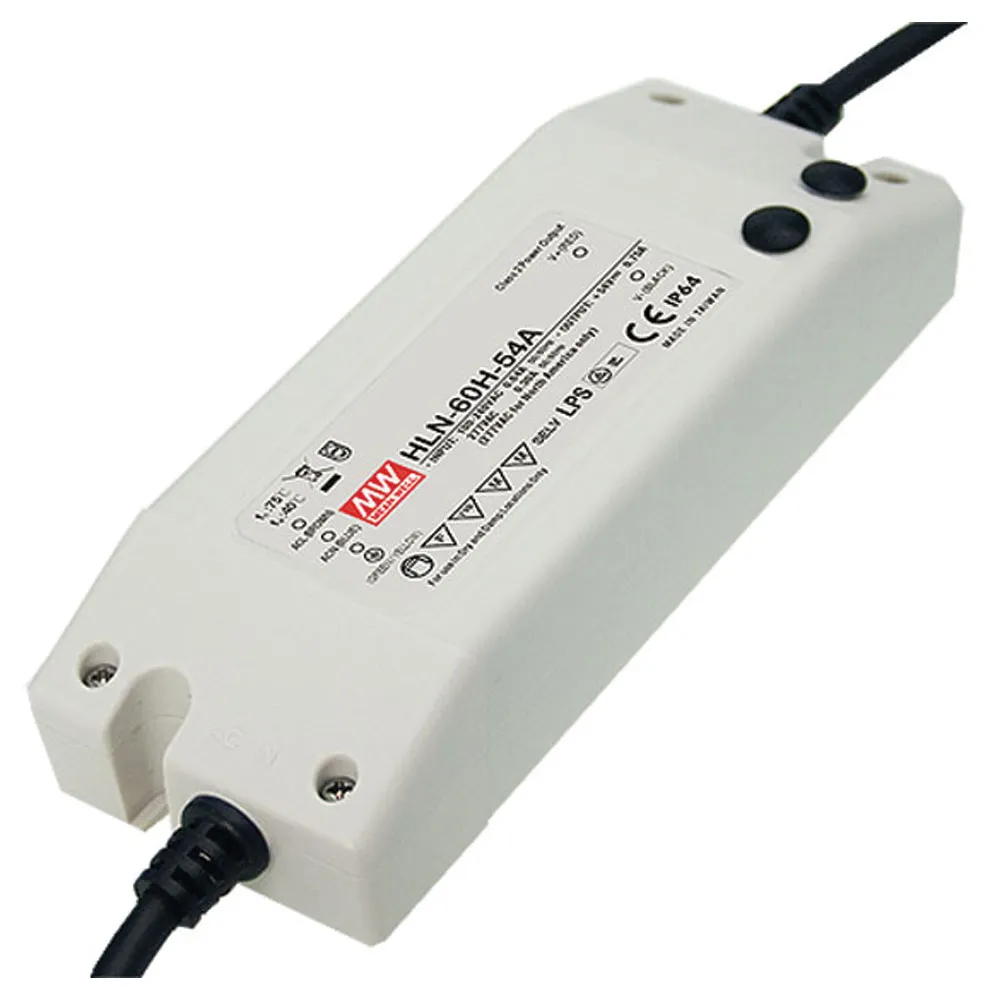

60W Single Output Switching Power Supply

Features:
60W,[email protected]

  • Universal AC input / Full range (up to 305VAC)
  • Built-in active PFC function
  • Protections: Short circuit / Over current / Over voltage / Over temperature
  • Cooling by free air convection
  • OCP point adjustable through output cable or internal potentiometer
  • IP64 rated. Constant current level adjustable through output cable with 1~10Vdc or 10V PWM signal or resistance.
  • Three in one dimming function (1~10Vdc or PWM signal or resistance)
  • Suitable for LED lighting and moving sign applications
  • Compliance to worldwide safety regulations for lighting
  • 3 years warranty
  • Suitable for dry / damp locations or outdoor application

    • Product Identification

    Product Type:Auto Switching SMPS
    Manufacturer Series:HLN-60H

    Compliance

    Agency Approvals: CB, CCC, CE, CUL, EAC, EN, TUV, UL

    Dimensions & Appearance

    Style:Enclosed
    Color:White
    Height:1.52 in.
    Width:2.67 in.
    Length:8.66 in.

    Operating conditions

    Minimum Operating Temperature:-40°C
    Maximum Operating Temperature:50°C

    Input

    Input Frequency:47 Hz to 63 Hz
    Input Voltage:90 VAC to 305 VAC
    Maximum Input Current:0.64 A

    Output

    Number of Outputs:1
    Output Connector Type:Stripped and Tinned
    Output Voltage:54 VDC
    Output Current:1.15 A
    Output Range:N/A

    Features

    PFC Function:Yes
    Minimum Isolation Voltage:3750V
    IP Rating:IP64
    Efficiency:90.5%
    Power Rating:62.1 W
    ,
