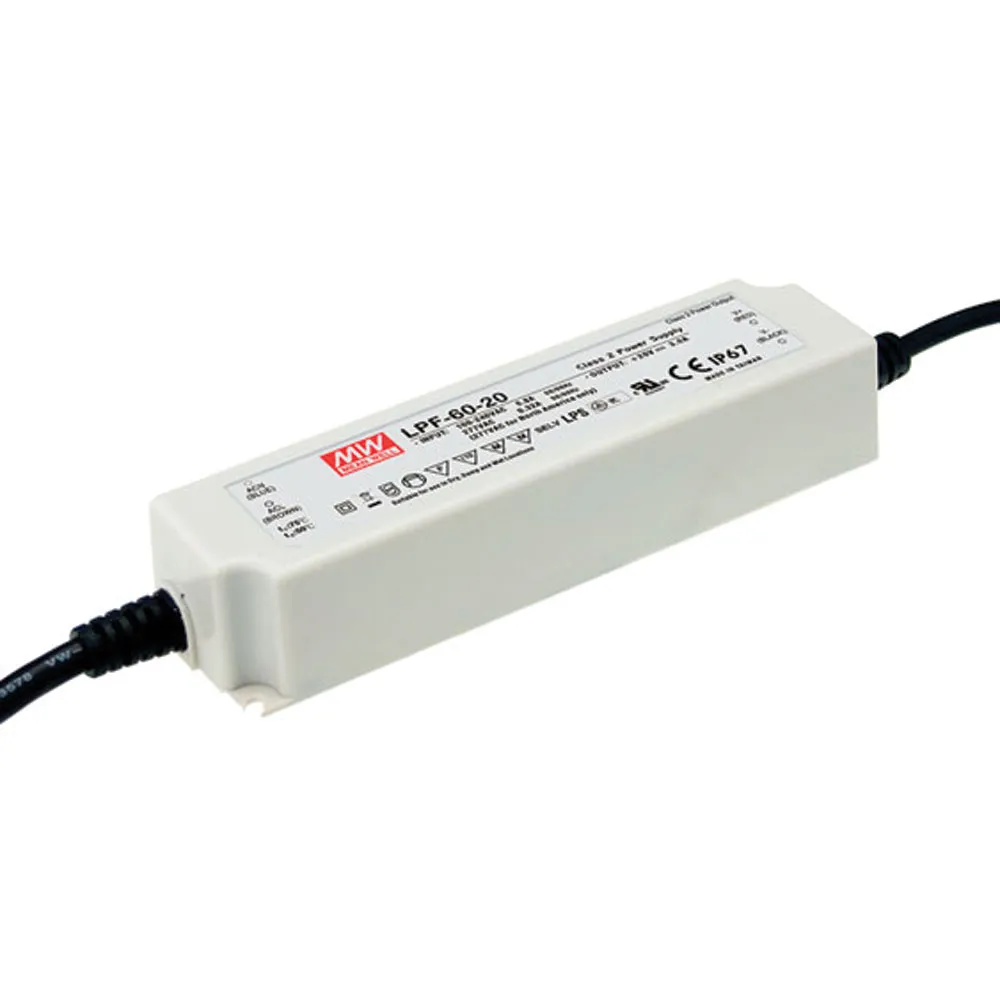

60W Single Output Switching LED Power Supply

42 Volts @ 1.43 Amps
Constant Current Region: 25.2 - 42 Volts

Features:
  • Universal AC input / Full range (up to 305VAC)
  • Built-in active PFC function
  • High efficiency up to 90%
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection
  • Fully isolated plastic case
  • Fully encapsulated with IP67 level
  • Class II power unit, no FG
  • Suitable for LED lighting and moving sign applications
  • Compliance to worldwide safety regulations for lighting
  • Suitable for dry / damp / wet locations
  • 3 years warranty

Product Identification

Product Type:Auto Switching SMPS
Manufacturer Series:LPF-60

Compliance

Agency Approvals: CB, CCC, CE, CUL, EAC, EN, ENEC, TUV, UL

Dimensions & Appearance

Style:Enclosed
Color:White
Height:1.25 in.
Width:1.69 in.
Length:6.39 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 305 VAC
Maximum Input Current:0.8 A

Output

Number of Outputs:1
Output Connector Type:Stripped and Tinned
Output Voltage:42 VDC
Output Range:25.2 VDC to 42 VDC
Output Current:1.43 A

Features

PFC Function:Yes
Minimum Isolation Voltage:3750V
IP Rating:IP67
Efficiency:90%
Power Rating:60.06 W
,
