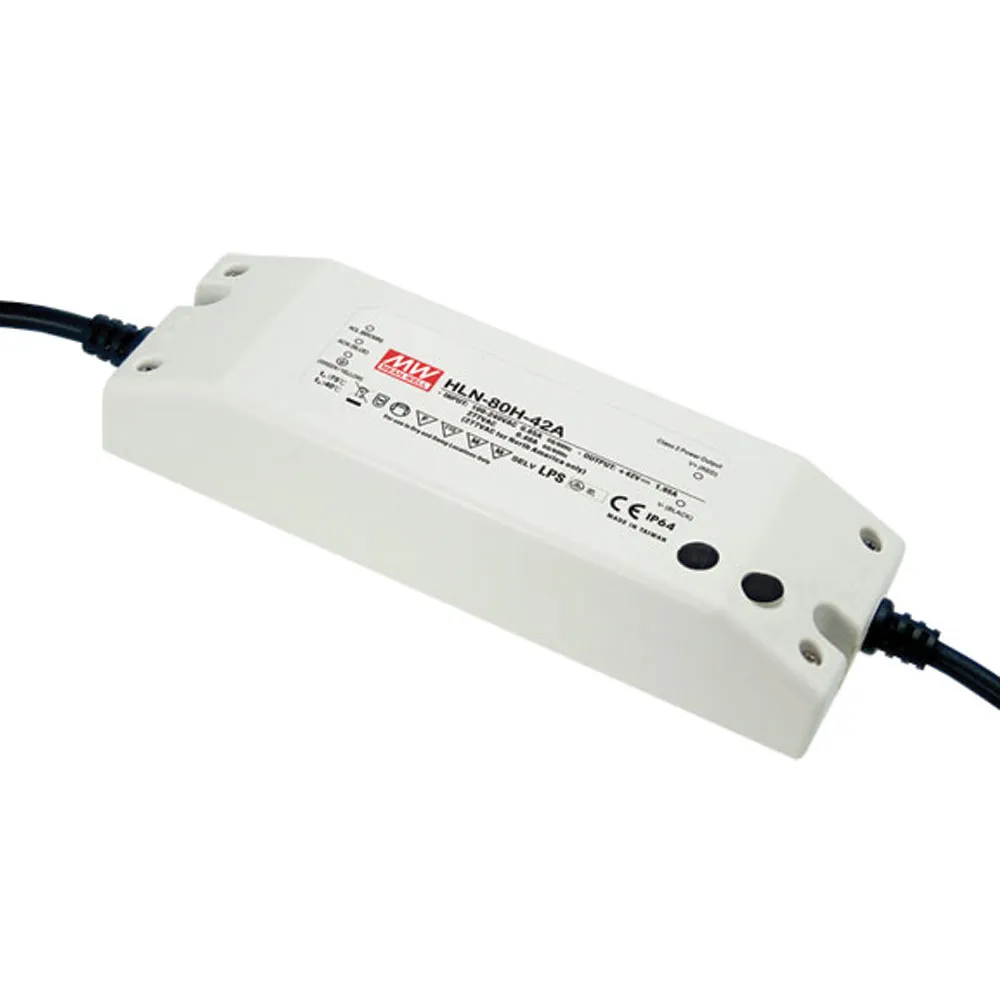

80W Single Output Switching Power Supply
80W,12V@5A
- Universal AC input / Full range (up to 305VAC)
- Built-in active PFC function
- Protections: Short circuit / Over current / Over voltage / Over temperature
- Cooling by free air convection
- OCP point adjustable through output cable or internal potentiometer
- IP64 rated. Output voltage and constant current level can be adjusted through internal potentiometer.
- Suitable for LED lighting and moving sign applications
- Compliance to worldwide safety regulations for lighting
- 3 years warranty
- Suitable for dry / damp location or outdoor application
Product Identification
Product Type:Auto Switching SMPS
Manufacturer Series:HLN-80H
Compliance
Agency Approvals: CB, CCC, CE, CUL, EAC, EN, TUV, UL
Dimensions & Appearance
Style:Enclosed
Color:White
Height:1.52 in.
Width:2.67 in.
Length:8.66 in.
Operating conditions
Minimum Operating Temperature:-40°C
Maximum Operating Temperature:50°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 305 VAC
Maximum Input Current:0.85 A
Output
Number of Outputs:1
Output Voltage:12 VDC
Output Connector Type:Stripped and Tinned
Output Range:N/A
Output Current:5 A
Features
PFC Function:Yes
Minimum Isolation Voltage:3750V
IP Rating:IP64
Efficiency:88%
Power Rating:60 W
